Home Solar Power Wall Battery 51.2V 5KWH LiFePO4 Battery With Smart BMS And Displayer

Home Solar Power Wall Battery 51.2V 5KWH LiFePO4 Battery With Smart BMS And Displayer

Power Wall Battery 51.2V

Solar Power Wall Battery

Home 5KWH LiFePO4 Battery

Place of Origin:

Hunan, China

Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
UPS Battery, 6000 Times Long Cycle Life, LCD Displayer, Smart BMS, Support 16 Pcs Parallel Connection, CAN/RS485/RS232 Optional
Product Name:
LiFePO4 Lithium Power Wall Battery
Battery Type:
51.2V LiFePO4 Battery Power Wall
Battery Cell:
LiFePo4 Prismatic Cell
Battery Pack Construction:
L600 X W400 X 167mm
About 45kg / 99lb
White Or Customize
Residential / Office Solar Energy Storage System
OEM And ODM Accpeted
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Carton or Wooden Carton
Delivery Time
7-20 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 pieces per month
Product Description

Joypo Long Cycle Life Home Solar Power Wall 51.2V 5KWH LiFePO4 Battery With Smart BMS And Displayer



1. Can act as a UPS battery to meet residential or office daily electricity demand.

2. With the LCD screen, shows the battery status in real-time.

3. With smart BMS, provide complete protection from short-circuit, overcharge, over-discharge, overcurrent, over-voltage, and so on.

4. Long cycle life of more than 6000 times, durable and stable performance.

5. Support up to 16 pieces connected in parallel.

6. CAN/RS485/RS232 Communication optional.

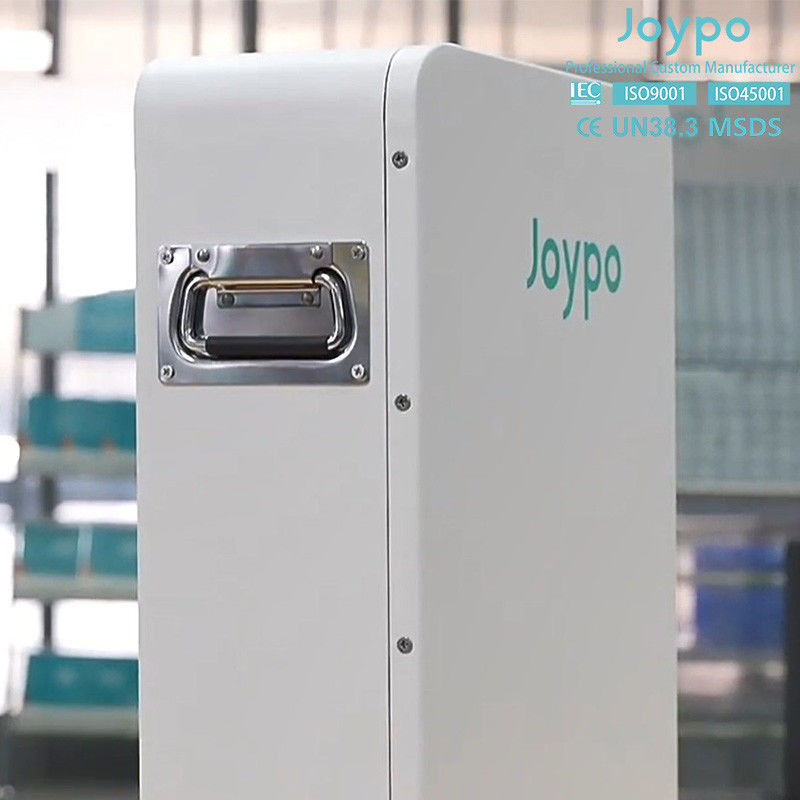

7. With handles, easy to carry.



Project name Standard requirement
Operating Voltage 43.2~58.4V
Battery capacity 100Ah
Battery energy 5120Wh
Weight About 45kg
Dimension L600 X W400 X 167mm
Enclosure material 1.5mm cold rolled iron plate
Continuous charging current 50A
Peak discharge current 200A (duration 3S)
Rated discharge current 100A
Charging cut-off voltage 58.4V
Discharge cut-off voltage 43.2V
charging method CC-CV
Self-discharge ≤2% per month
Temperature characteristics

Charging Temperature:0℃~45℃

Discharge Temperature:-20℃~55℃

Storage temperature 0~45℃
Communication CAN/RS485/RS232
Cycle life 6000 times
Parallel rule Up to 16 packs can be connected in parallel
Battery protection Overcharging, over-discharge, overcurrent, overvoltage, short circuit, and so on

Home Solar Power Wall Battery 51.2V 5KWH LiFePO4 Battery With Smart BMS And Displayer 0

Home Solar Power Wall Battery 51.2V 5KWH LiFePO4 Battery With Smart BMS And Displayer 1


1. Can I have a sample order?
Re: Yes, the sample order is welcome here, so you can test the product quality.


2. How long is the lead time?
Re: Sample order takes around 7-20 days, bulk order takes 20-35 days, depending on the order size and production schedule.


3. How long is the battery warranty?
Re: 5 years, can be extended for large orders.


4. What products can you supply?
Re: Except for the lithium batteries and cells, we can also supply the all-in-one solar power system, solar panels, inverter, and brackets.


5. How can you guarantee the quality?
Strict Quality Checks: Multiple rounds of strict quality checks during manufacturing. Each battery is carefully inspected to meet and exceed industry standards.

High-Quality Materials: This includes advanced cell technologies and materials that are proven to deliver superior energy density, longer cycle life, and stable performance.

Customer Feedback: Our customers' satisfaction is a testament to the quality of our batteries. Positive reviews and long-term customer relationships underscore our commitment to delivering on our promises.

Warranty: A long-term warranty not only protects your investment but also reflects our confidence in the durability and performance of our batteries.

We understand the importance of earning your trust, and we are committed to delivering a product that exceeds your expectations. Should you have any further questions or concerns, please feel free to reach out to our customer service team. We look forward to the opportunity to serve you and provide you with reliable, high-quality batteries.


6. What payment terms do you accept?

Generally, we accept T/T, 50% for deposit, the balance paid before shipment.
