Place of Origin:
Hunan, China
Brand Name:
JOYPO
Certification:
MSDS,UN38.3,CE
Model Number:
JP-EOS-10KWH

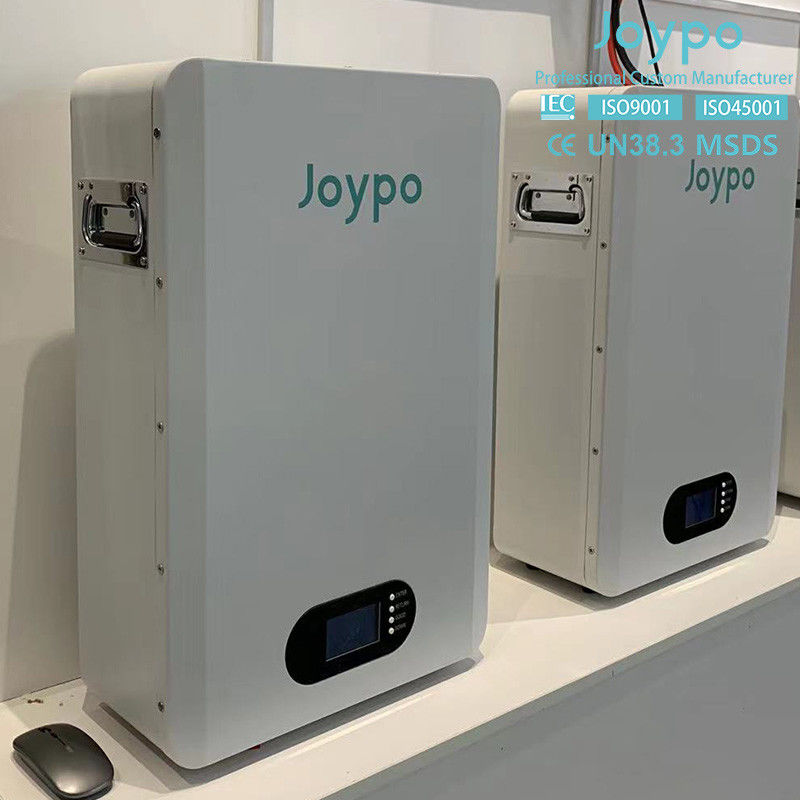

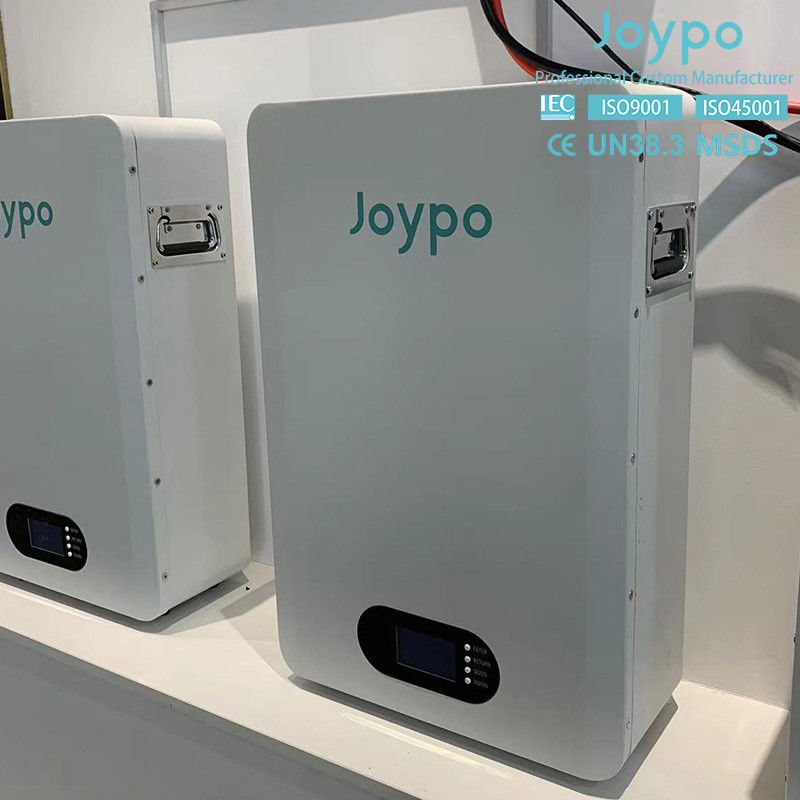

Joypo 51.2V 200Ah LiFePO4 Power Wall Solar Energy Storage Battery For Home
Features:
1. Can act as a UPS battery to meet residential or office daily electricity demand.

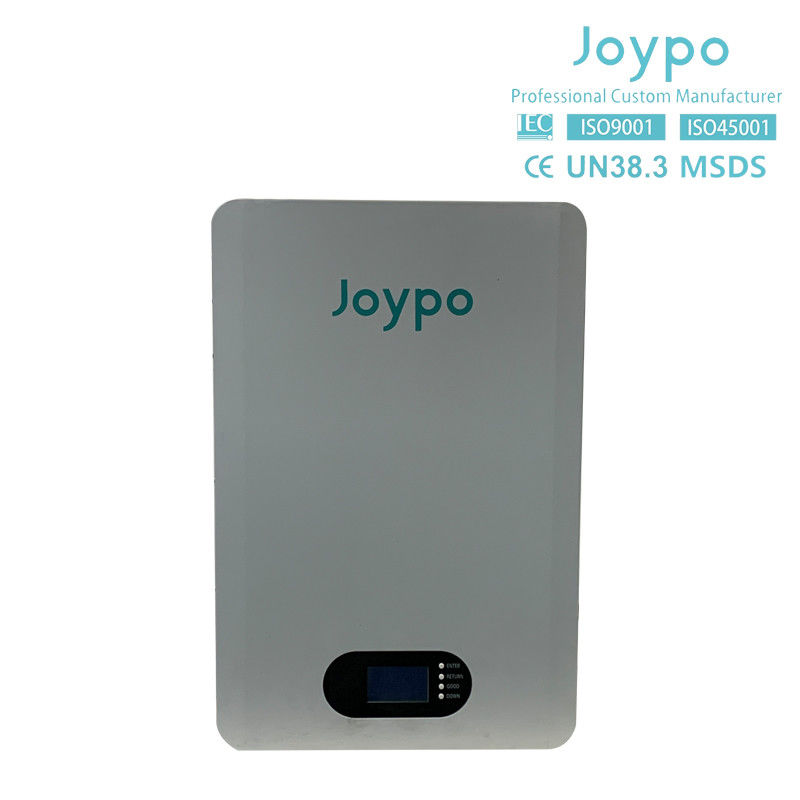

2. With the LCD screen, shows the battery status in real-time.
3. With smart BMS, provide complete protection from short-circuit, overcharge, over-discharge, overcurrent, over-voltage, and so on.
4. Long cycle life of more than 6000 times, durable and stable performance.
5. Support up to 16 pieces connected in parallel.

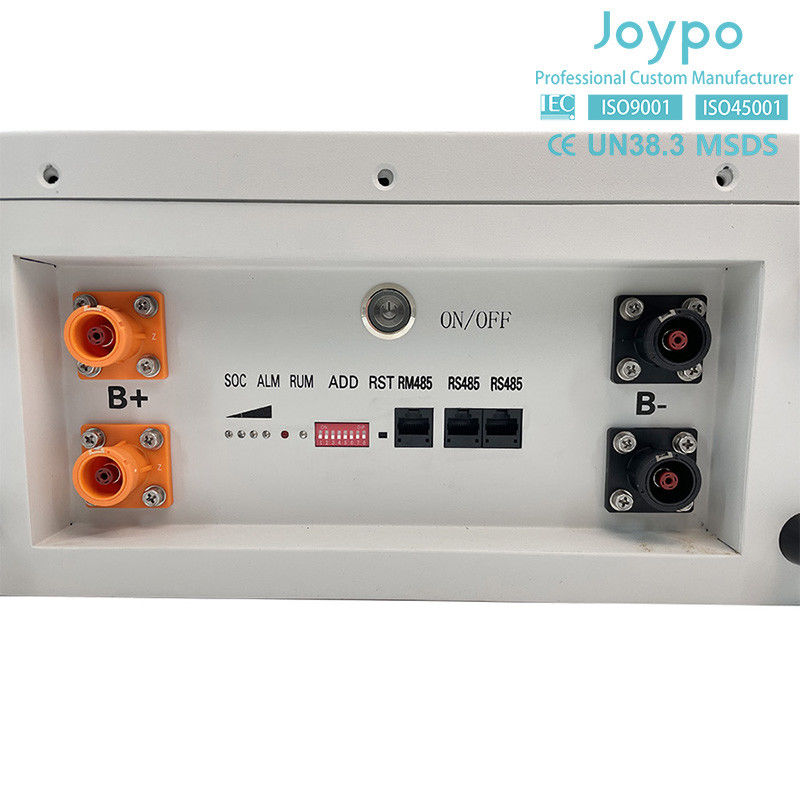

6. CAN/RS485/RS232 Communication optional.
7. With handles, easy to carry.
| Project name | Standard requirement |
| Operating Voltage | 43.2~58.4V |
| Battery capacity | 200Ah |
| Battery energy | 10240Wh |
| Weight | About 87kg |
| Dimension | L650 X W580 X 230mm |
| Enclosure material | 1.5mm cold rolled iron plate |
| Continuous charging current | 100A |
| Peak discharge current | 300A (duration 3S) |
| Rated discharge current | 200A |
| Charging cut-off voltage | 58.4V |
| Discharge cut-off voltage | 43.2V |
| charging method | CC-CV |
| Self-discharge | ≤2% per month |
| Temperature characteristics |
Charging Temperature:0℃～45℃ Discharge Temperature:-20℃～55℃ |
| Storage temperature | 0～45℃ |
| Communication | CAN/RS485/RS232 |
| Cycle life | 6000 times |
| Parallel rule | Up to 16 packs can be connected in parallel |
| Battery protection | Cell balancing, overcharging, over-discharge, overcurrent, overvoltage, short circuit, and so on |
Advantages:
1. Energy independence
2. Reduce your electricity bill
3. Keep your appliances running during power shortages
4. Higher property values
5. Environmental benefits
