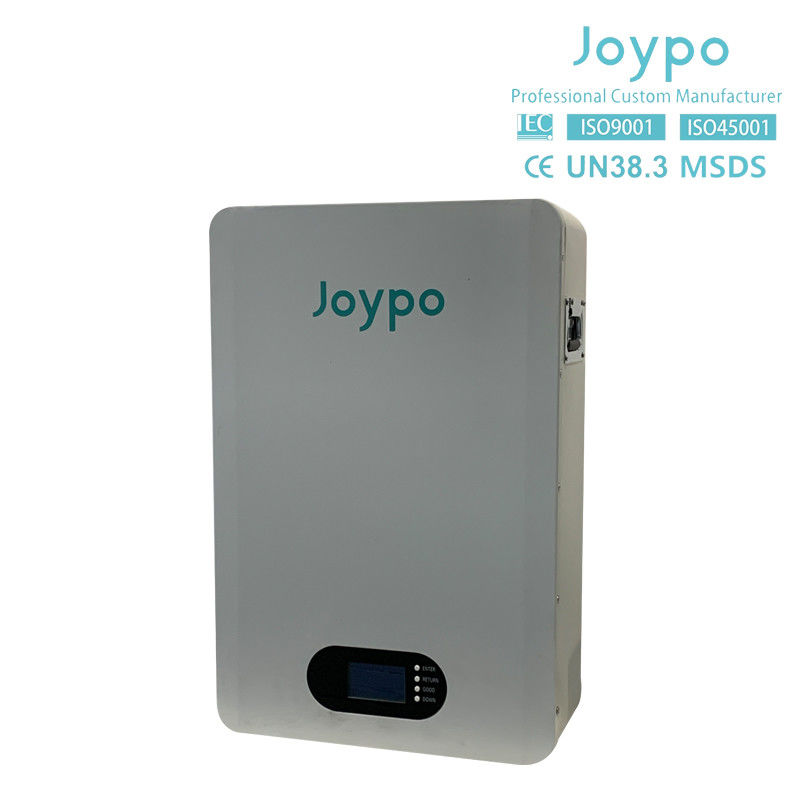

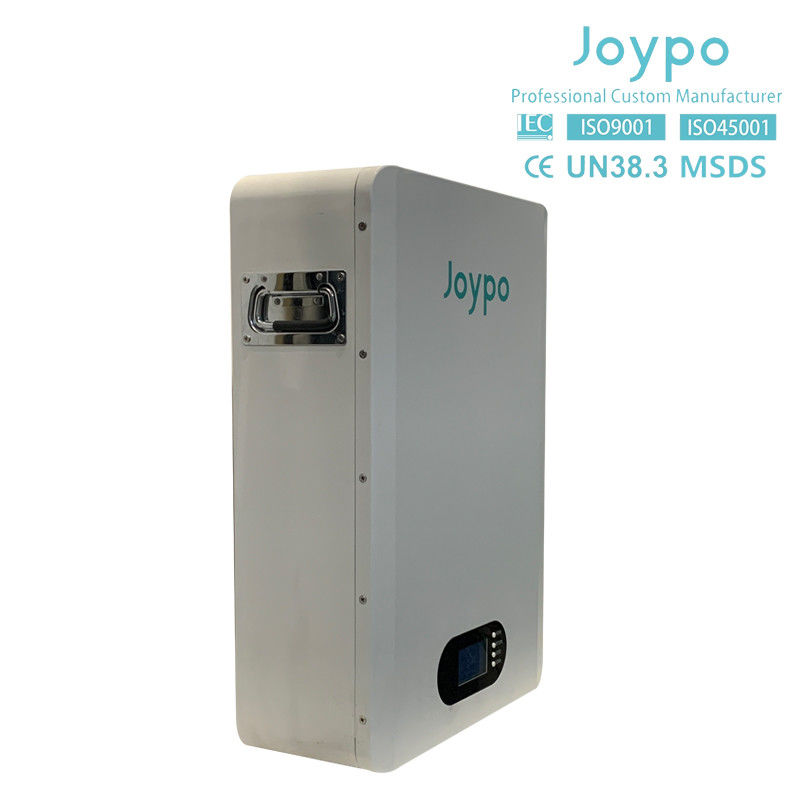

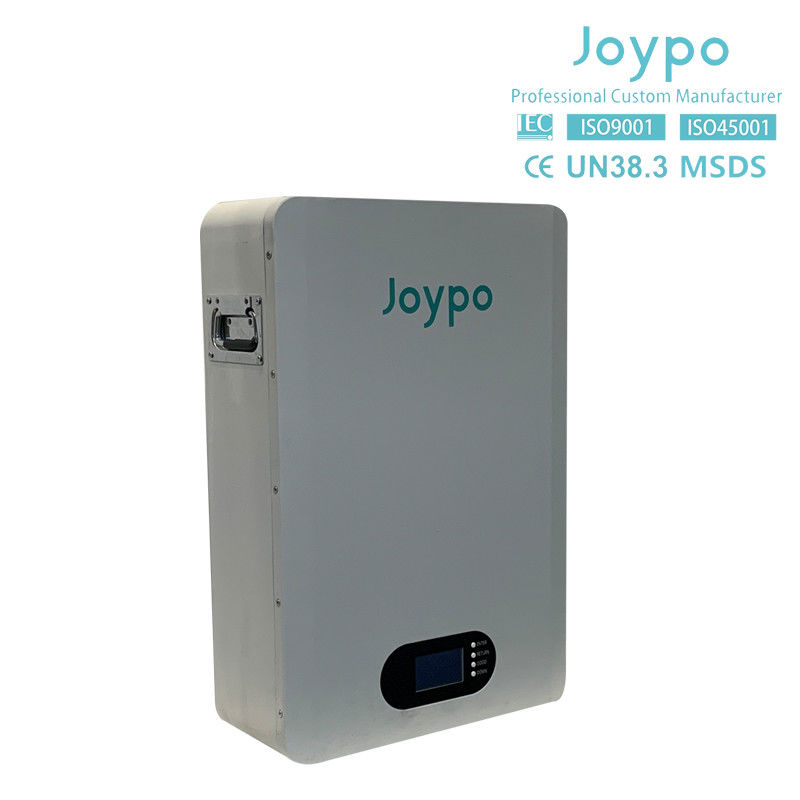

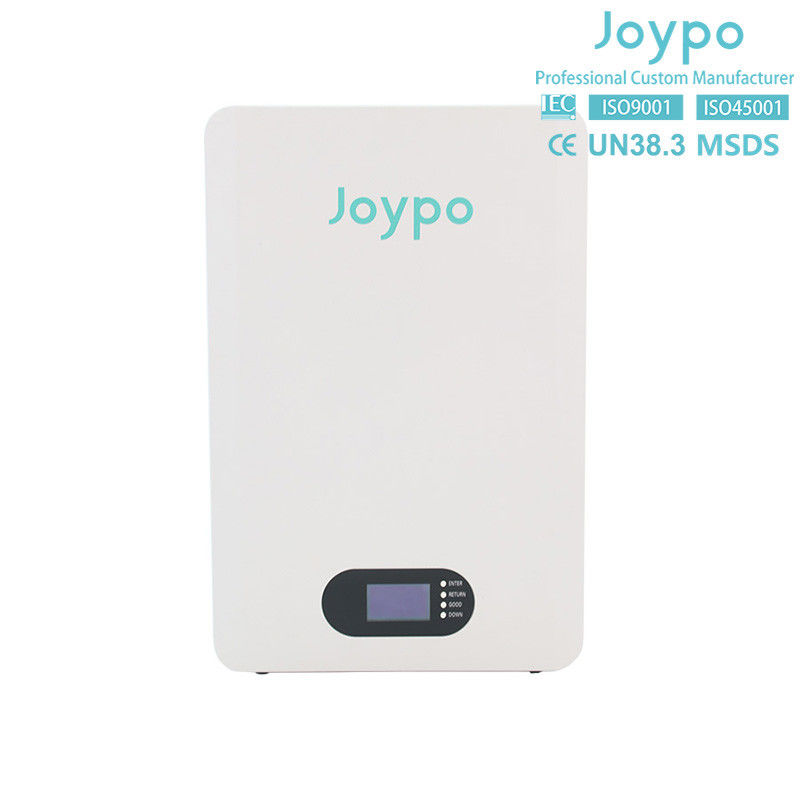

Residential Solar Power Wall Battery 5kwh Renewable Energy Storage Battery

Residential Solar Power Wall Battery 5kwh Renewable Energy Storage Battery

Renewable Power Wall Battery

Residential Power Wall Battery

5kwh Renewable Energy Storage Battery

Place of Origin:

Hunan, China

Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
UPS Battery, 6000 Times Long Cycle Life, LCD Displayer, Smart BMS, Support 16 Pcs Parallel Connection, CAN/RS485/RS232 Optional
Product Name:
Solar Power Energy Storage Battery Powerwall
Battery Type:
Solar System Energy Storage Lifepo4 Battery
Battery Cell:
LiFePo4 Prismatic Cell
Battery Pack Construction:
L600 X W400 X 167mm
About 45kg / 99lb
White Or Customized
Residential Solar Energy Power Storage System
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Carton or Wooden Carton
Delivery Time
7-20 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 pieces per month
Product Description

Joypo 5kwh Residential Renewable Solar Energy Storage Battery To Store Power



1. Energy independence

2. Reduce your electricity bill

3. Keep your appliances running during power shortages

4. Higher property values

5. Environmental benefits


Project name Standard requirement
Operating Voltage 43.2~58.4V
Battery capacity 100Ah
Battery energy 5120Wh
Weight About 45kg
Dimension L600 X W400 X 167mm
Enclosure material 1.5mm cold rolled iron plate
Continuous charging current 50A
Peak discharge current 200A (duration 3S)
Rated discharge current 100A
Charging cut-off voltage 58.4V
Discharge cut-off voltage 43.2V
charging method CC-CV
Self-discharge ≤2% per month
Temperature characteristics

Charging Temperature:0℃~45℃

Discharge Temperature:-20℃~55℃

Storage temperature 0~45℃
Communication CAN/RS485/RS232
Cycle life 6000 times
Parallel rule Up to 16 packs can be connected in parallel
Battery protection Overcharging, over-discharge, overcurrent, overvoltage, short circuit, and so on


Residential Solar Power Wall Battery 5kwh Renewable Energy Storage Battery 0


Six reasons to choose Joypo Power Wall:

Safe and reliable, built-in intelligent BMS, high quality A grade LiFePO4 cells.

Real and large capacity,

Strong compatibility, compatible with most inverters on the market.

Long cycle life, more than 6000 times long lifespan.

Support parallel connection, support up to 16 pieces connect in parallel.

Easy to operate, LCD screen displays battery status in real time.

Support ODM/OEM, low MOQ, easily build your own brand.
