Place of Origin:
Hunan, China
Brand Name:
JOYPO
Certification:
MSDS,UN38.3,CE
Model Number:
JP-EOS-10KWH

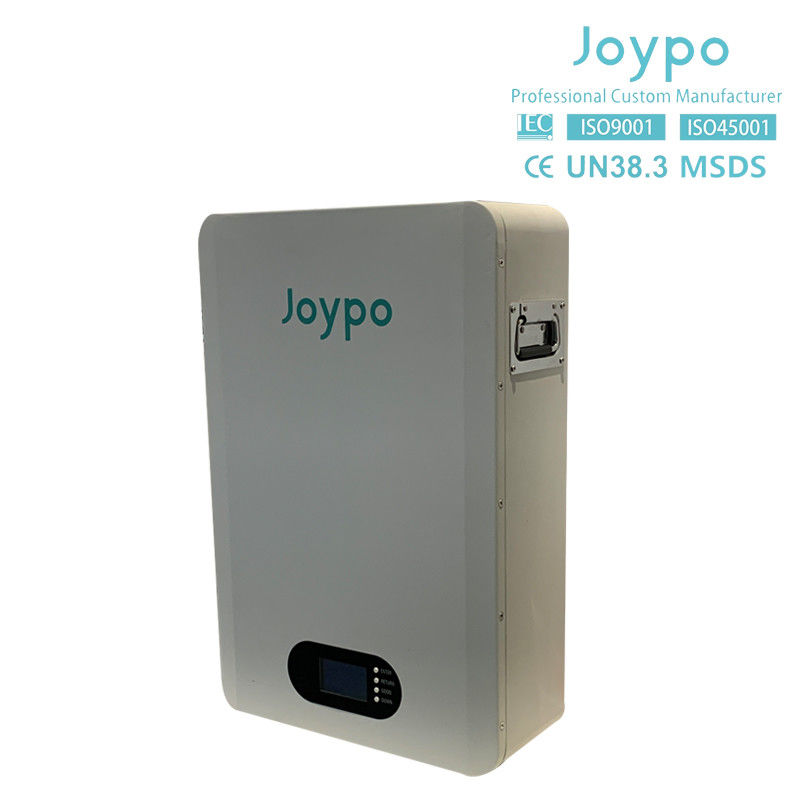

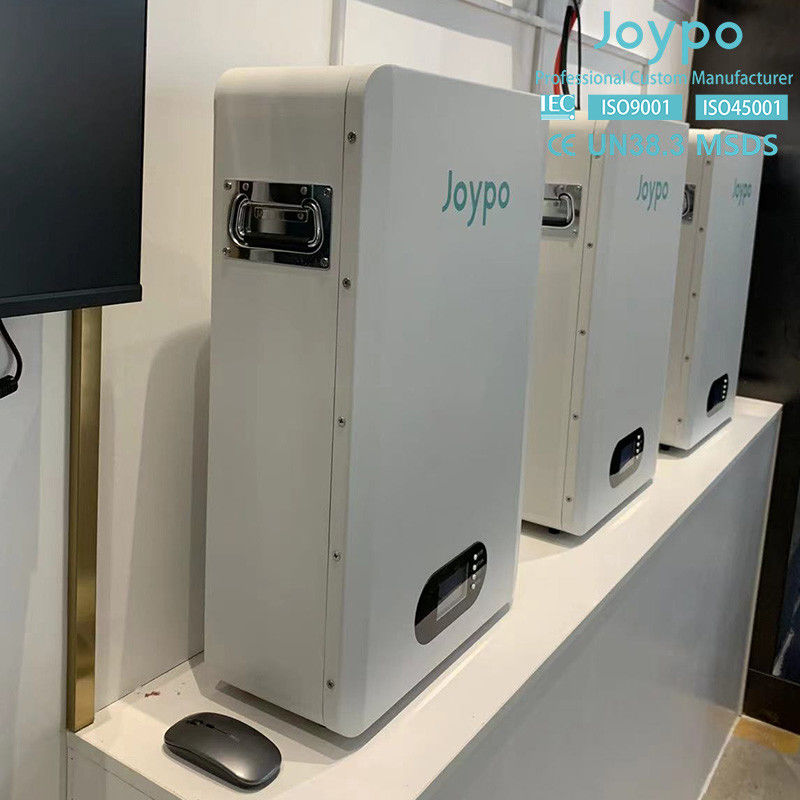

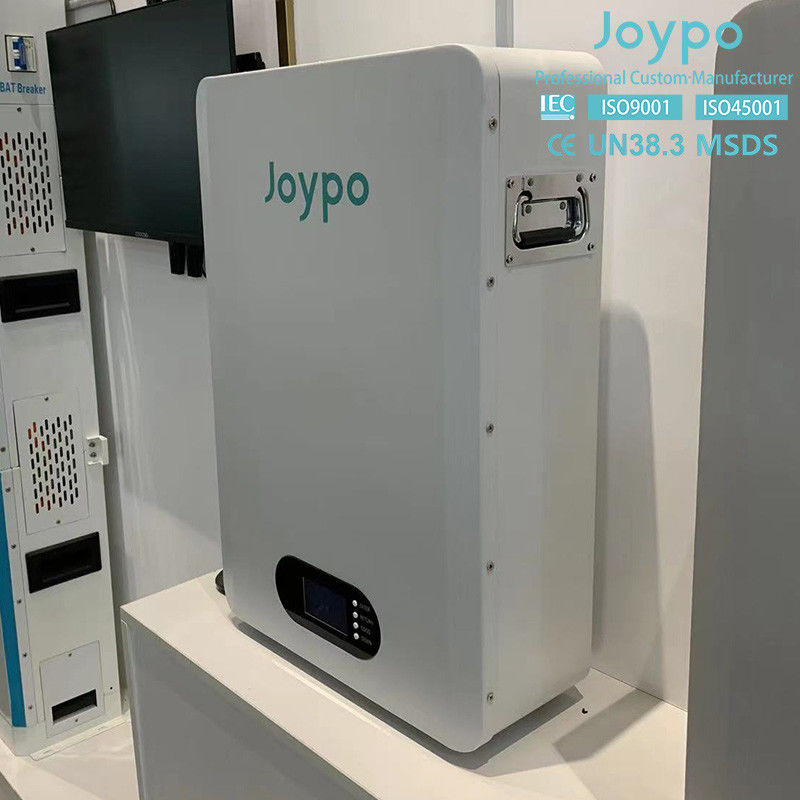

Joypo wall mount solar back up power storage battery for home backup energy system
Six reasons to choose Joypo Power Wall:
Safe and reliable, built-in intelligent BMS, high quality A grade LiFePO4 cells.
Strong compatibility, compatible with most inverters on the market.
Long cycle life, more than 6000 times long lifespan.
Support parallel connection, support up to 16 pieces connect in parallel.
Easy to operate, LCD screen displays battery status in real time.
Support ODM/OEM, low MOQ, easily build your own brand.
| Project name | Standard requirement |
| Operating Voltage | 43.2~58.4V |
| Battery capacity | 200Ah |
| Battery energy | 10240Wh |
| Weight | About 87kg |
| Dimension | L650 X W580 X 230mm |
| Enclosure material | 1.5mm cold rolled iron plate |
| Continuous charging current | 100A |
| Peak discharge current | 300A (duration 3S) |
| Rated discharge current | 200A |
| Charging cut-off voltage | 58.4V |
| Discharge cut-off voltage | 43.2V |
| charging method | CC-CV |
| Self-discharge | ≤2% per month |
| Temperature characteristics |
Charging Temperature:0℃～45℃ Discharge Temperature:-20℃～55℃ |
| Storage temperature | 0～45℃ |
| Communication | CAN/RS485/RS232 |
| Cycle life | 6000 times |
| Parallel rule | Up to 16 packs can be connected in parallel |
| Battery protection | Cell balancing, overcharging, over-discharge, overcurrent, overvoltage, short circuit, and so on |
Advantages:
1. Energy independence
2. Reduce your electricity bill
3. Keep your appliances running during power shortages
4. Higher property values
5. Environmental benefits
