Place of Origin:
Hunan, China
Brand Name:
JOYPO
Certification:
MSDS,UN38.3,CE,etc
Model Number:
JP012200AP

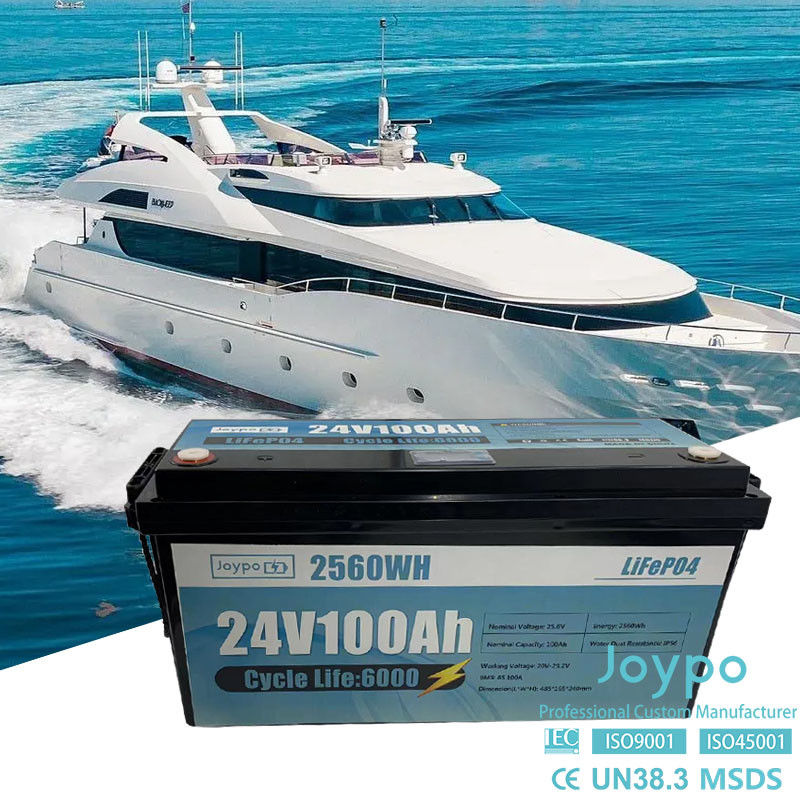

Joypo 12V 24V 100Ah 200Ah Anti-Vibration Fishing Boat Batteries For Marine
Once upon a time, Captain Jack sailed the vast ocean aboard his beloved sailboat, the "Mermaid's Dream." With the wind in his sails and the sun on his face, every voyage was an adventure waiting to unfold. However, despite his love for the sea, Captain Jack faced a recurring challenge that threatened to dampen his spirits - unreliable marine batteries.
On one fateful journey, as he charted a course through treacherous waters, his old batteries failed him at a critical moment. The sudden loss of power left him stranded, his dreams of exploration fading with each passing minute. Determined not to let this setback define his seafaring adventures, Captain Jack sought a solution that would ensure uninterrupted voyages.
That's when he discovered Joypo's durable and long-lasting marine batteries. With a sense of hope renewed, he equipped his vessel with these reliable power sources, ready to face the open sea once more. As he set sail on his next expedition, a newfound sense of confidence filled his heart.
Through stormy weather and calm seas alike, the Joypo batteries proved their worth time and time again. Their unwavering performance and longevity became the backbone of Captain Jack's maritime escapades, allowing him to navigate with ease and focus on the wonders that lay ahead.
With Joypo by his side, Captain Jack's voyages became a symphony of uninterrupted moments - from breathtaking sunsets on the horizon to encounters with majestic marine life. The worry of power failure was but a distant memory, replaced by the freedom to explore the boundless beauty of the ocean.
As he sailed into the sunset, Captain Jack knew that with Joypo's durable and long-lasting marine batteries, every journey held the promise of new discoveries and unforgettable experiences. In the heart of the ocean, where adventure knows no bounds, he found solace in the reliability and endurance of his trusted companions, ready to accompany him on countless voyages yet to come.
|
Model
|
JP012100AP |
JP012200AP
|
|
ELECTRICAL SPECIFICATIONS
|
|
|
|
Cell Type - Chemistry
|
LiFePO4 |
LiFePO4
|
|
Packing model
|
4S1P |
4S2P
|
|
Nominal Capacity
|
100Ah |
200Ah
|
|
Nominal Voltage
|
12.8V |
12.8V
|
|
Energy
|
1280Wh |
2560Wh
|
|
MECHANICAL SPECIFICATIONS
|
|
|
|
Weight
|
Approx.11kg(24lb) |
Approx. 22kg(48.5lb)
|
|
Dimensions (L x W x H)
|
330*172*215mm or customized |
520*217*225mm or customized
|
|
DISCHARGING SPECIFICATIONS
|
|
|
|
Discharge cut-off voltage
|
10 V |
10 V
|
|
Peak discharge current
|
200A (duration 2S) |
300A (duration 2S)
|
|
Rated discharge current
|
100A |
100A
|
|
Self-discharge rate
|
≤2% per month(25°C) |
≤2% per month(25°C)
|
|
CHARGING SPECIFICATIONS
|
|
|
|
Charging cut-off voltage
|
14.6V |
14.6V
|
|
Continuous charging current
|
50A |
100A
|
|
SAFETY&Quality
|
|
|
|
Working temperature
|
-20°C-55°C |
-20°C-55°C
|
|
Storage temperature
|
0～45°C |
0～45°C
|
|
Waterproof level
|
IP65 |
IP65
|
|
Certificate & Safety Standard
|
UL/ROHS/TUV/FCC / CE / MSDS/EN62619 / IEC62040 / UN38.3
|
|
|
Communication
|
CAN/RS485/DRY CONTACT
|
|
|
Cycle life
|
6000 times
|
|
LiFePO4 Battery Features:
1.Longer service life: cycle life 6000+ times, service life can reach 10 years,it’s much longer than Lead acid battery’s life.If the battery is not used continually, it should be charged every 3-5 months,that can make the battery available for a longer time.
2.Built-in BMS: Joypo LiFePO4 battery has a built-in BMS, it can prevent over-charge,over-discharge,over current,over voltage,over heat,short circuit.
3.Light and practical: Joypo LiFePO4 battery can achieve truly deft effect, It weighs only 30% as much as a typical lead-acid battery, easy to carry and easy to install is the best choice for marine and RV.
4.Faster charging speed, reducing waiting time and improving usage efficiency
5.Eco-friendly, your small choice will benifit the world.
6.More widely used: Joypo LiFePO4 battery can be used in the following fields: electric vehicles, recreational vehicles, golf carts, RV, boats, towing motors, solar street light, UPS backup power supply, home solar equipment, portable TV, etc.
