Place of Origin:
Hunan, China
Brand Name:
JOYPO
Certification:
MSDS,UN38.3,CE,etc
Model Number:
JP012200AP

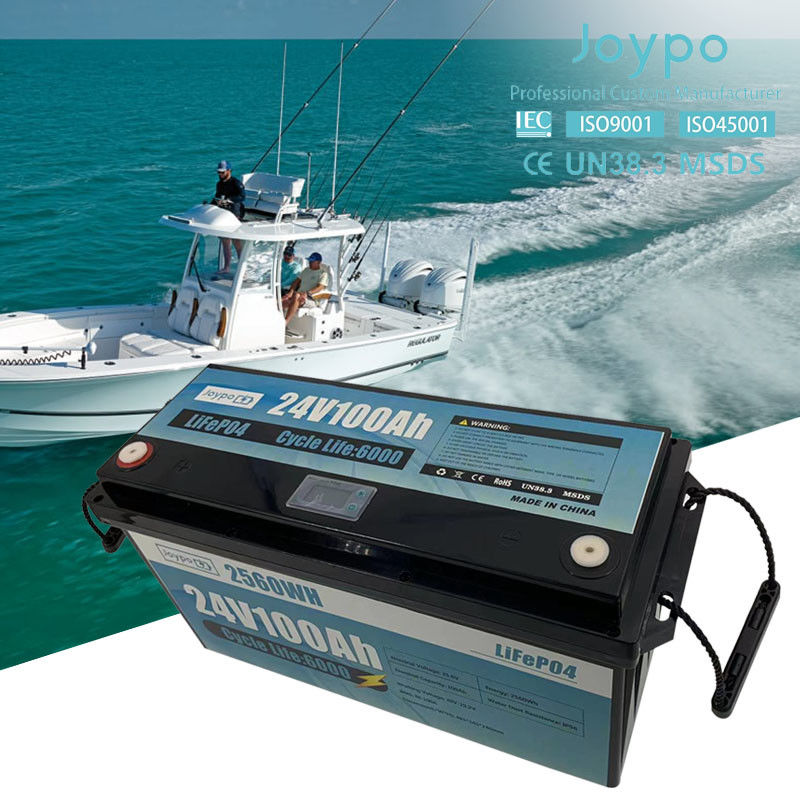

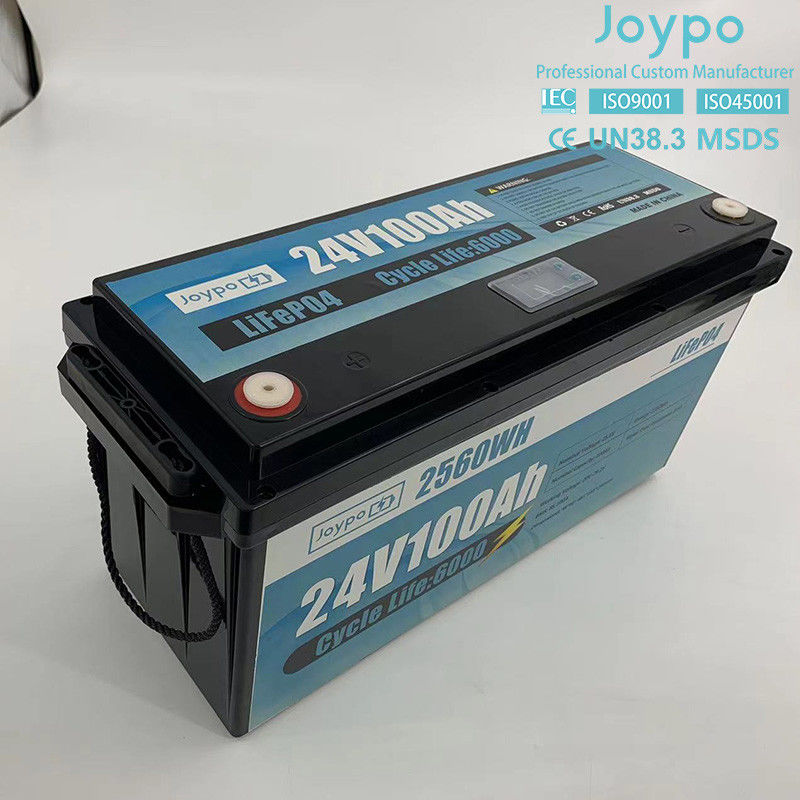

Joypo Reliable Marine Battery Lithium 24 Volt LiFePO4 For Trolling Motor
Facing frequent power outages and unreliable performance is a common challenge for users of marine boat batteries. The frustration of disrupted trips and the uncertainty of battery life can hinder the overall boating experience. However, amidst these concerns, Joypo marine boat lithium battery stands out as a beacon of reliability and performance.
Joypo battery is engineered to address these common issues head-on. With a focus on durability and longevity, this battery offers a seamless power supply that ensures uninterrupted sailing adventures. Its advanced technology provides stable power output, allowing users to navigate the waters with confidence and peace of mind.
Moreover, Joypo marine battery is designed to withstand the harsh marine environment, making it a dependable companion for all types of boating excursions. Its superior performance and extended battery life not only enhance the overall boating experience but also guarantee a hassle-free journey each time you set sail.
| Model | JP02450AP | JP024100AP | JP024200AP |
| ELECTRICAL SPECIFICATIONS | |||
| Cell Type - Chemistry | LiFePO4 | LiFePO4 | LiFePO4 |
| Packing model | 8S1P | 8S1P | 8S2P |
| Nominal Capacity | 50Ah | 100Ah | 200Ah |
| Nominal Voltage | 25.6V | 25.6V | 25.6V |
| Energy | 1280Wh | 2560Wh | 5120Wh |
| MECHANICAL SPECIFICATIONS | |||
| Weight | Approx. 11kg(24lb) | Approx. 22kg(48.5lb) | Approx. 45kg(99lb) |
| Dimensions (L x W x H) | 330*172*215mm | 485*165*240mm or customized | customized |
| DISCHARGING SPECIFICATIONS | |||
| Discharge cut-off voltage | 20 V | 20 V | 20 V |
| Peak discharge current | 100A (duration 2S) | 200A (duration 2S) | 300A (duration 2S) |
| Rated discharge current | 50A | 100A | 100A |
| Self-discharge rate | ≤2% per month(25°C) | ≤2% per month(25°C) | ≤2% per month(25°C) |
| CHARGING SPECIFICATIONS | |||
| Charging cut-off voltage | 29.2V | 29.2V | 29.2V |
| Continuous charging current | 25A | 50A | 100A |
| SAFETY&Quality | |||
| Working temperature | -20°C-55°C | -20°C-55°C | -20°C-55°C |
| Storage temperature | 0～45°C | 0～45°C | 0～45°C |
| Waterproof level | IP65 | IP65 | IP65 |
| Certificate & Safety Standard | UL/ROHS/TUV/FCC / CE / MSDS/EN62619 / IEC62040 / UN38.3 | ||
| Communication | CAN/RS485/DRY CONTACT | ||
| Cycle life | 6000 times, capacity≥80% @25℃ 0.5C/0.5C | ||
Maximize your time on the water with Joypo advanced marine battery technology!
Features:
1. Smart BMS, gives you more protection from short-circuits, over-current, over-voltage, overcharge, over-discharge, and so on.
2. Excellent anti-vibration and waterproof performance, allowing you to enjoy your time on the water.
3. High Discharge / Fast Charge, more convenient to use.
4. Lightweight with small size.
5. Deep Cycle and as long as 6000 times long cycle life.
6. Maintenance-free.
7. Pollution-free for environmental protection.
8. Optional bluetooth function to monitor battery status through mobile phone.
9. LED indicator shows the voltage and power percentage in real-time.
