Place of Origin:
Hunan, China
Brand Name:
JOYPO
Certification:
MSDS,UN38.3,CE
Model Number:
JP024100AP

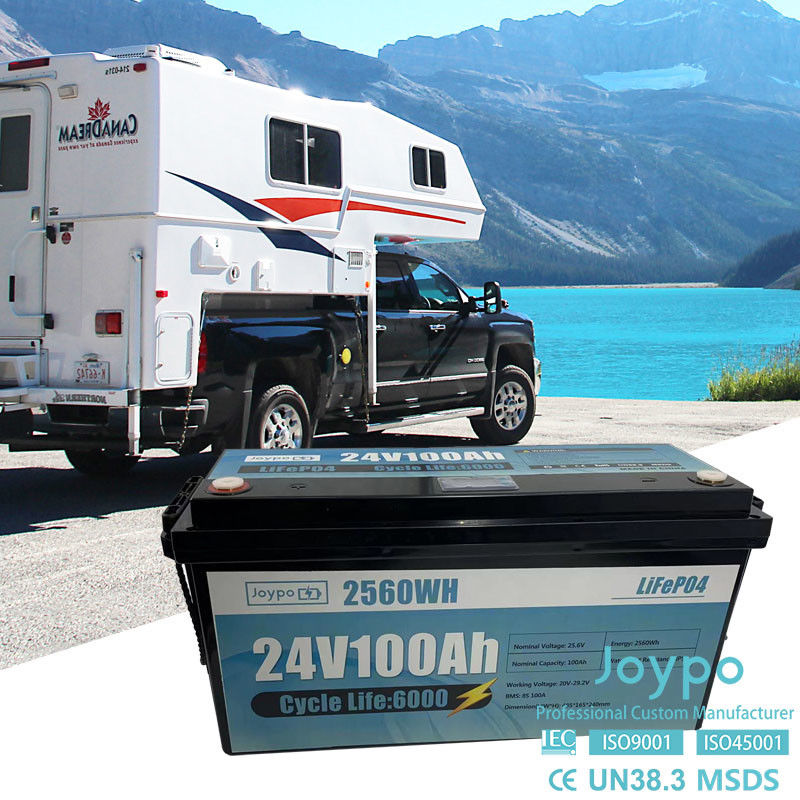

Joypo Deep And Long Cycle Motorhome RV LiFePO4 Battery 24V 100Ah 200Ah 300Ah
LiFePO4 Battery Features:
1.Longer service life: cycle life 6000+ times, service life can reach 10 years,it’s much longer than Lead acid battery’s life.If the battery is not used continually, it should be charged every 3-5 months,that can make the battery available for a longer time.
2.Built-in BMS: Joypo LiFePO4 battery has a built-in BMS, it can prevent over-charge,over-discharge,over current,over voltage,over heat,short circuit.
3.Light and practical: Joypo LiFePO4 battery can achieve truly deft effect, It weighs only 30% as much as a typical lead-acid battery, easy to carry and easy to install is the best choice for marine and RV.
4.Faster charging speed, reducing waiting time and improving usage efficiency
5.Eco-friendly, your small choice will benifit the world.
6.More widely used: Joypo LiFePO4 battery can be used in the following fields: electric vehicles, recreational vehicles, golf carts, RV, boats, towing motors, solar street light, UPS backup power supply, home solar equipment, portable TV, etc.
Model
|
JP024100AP
|
JP024200AP |
ELECTRICAL SPECIFICATIONS
|
|
|
Cell Type - Chemistry
|
LiFePO4
|
LiFePO4 |
Packing model
|
8S1P
|
8S2P |
Nominal Capacity
|
100Ah
|
200Ah |
Nominal Voltage
|
25.6V
|
25.6V |
Energy
|
2560Wh
|
5120Wh |
MECHANICAL SPECIFICATIONS
|
|
|
Weight
|
Approx. 22kg(48.5lb)
|
Approx. 45kg(99lb) |
Dimensions (L x W x H)
|
485*165*240mm or customized
|
customized |
DISCHARGING SPECIFICATIONS
|
|
|
Discharge cut-off voltage
|
20 V
|
20 V |
Peak discharge current
|
200A (duration 2S)
|
300A (duration 2S) |
Rated discharge current
|
100A
|
100A |
Self-discharge rate
|
≤2% per month(25°C)
|
≤2% per month(25°C) |
CHARGING SPECIFICATIONS
|
|
|
Charging cut-off voltage
|
29.2V
|
29.2V |
Continuous charging current
|
50A
|
100A |
SAFETY&Quality
|
|
|
Working temperature
|
-20°C-55°C
|
-20°C-55°C |
Storage temperature
|
0~45°C
|
0~45°C |
Waterproof level
|
IP65
|
IP65 |
Certificate & Safety Standard
|
UL/ROHS/TUV/FCC / CE / MSDS/EN62619 / IEC62040 / UN38.3
|
UL/ROHS/TUV/FCC / CE / MSDS/EN62619 / IEC62040 / UN38.3 |
Communication
|
CAN/RS485/DRY CONTACT
|
|
Cycle life
|
6000 times, capacity≥80% @25℃ 0.5C/0.5C |
6000 times, capacity≥80% @25℃ 0.5C/0.5C |
Why choose Joypo?
* ISO 9001 & 14001 management certified factory
* R&D team with experienced engineers and designers
* OEM&ODM professionals
* Multiple production lines and multiple production workers
* Use only high quality brand new materials
* Strict quality control process before, during and after production, 100% quality test before leaving factory
* Production integration
* Long time warranty and excellent customer service
