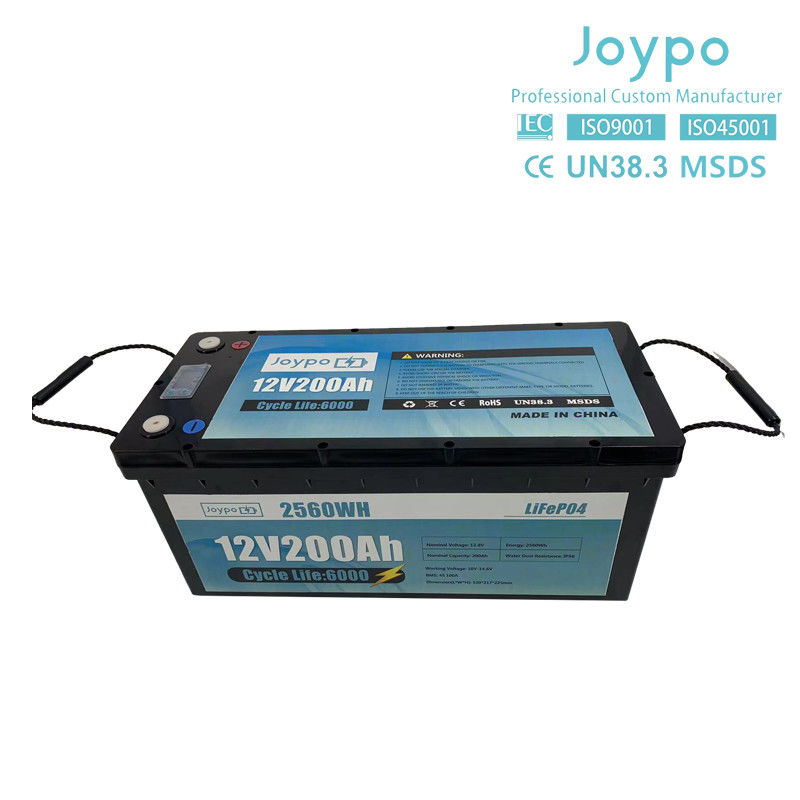

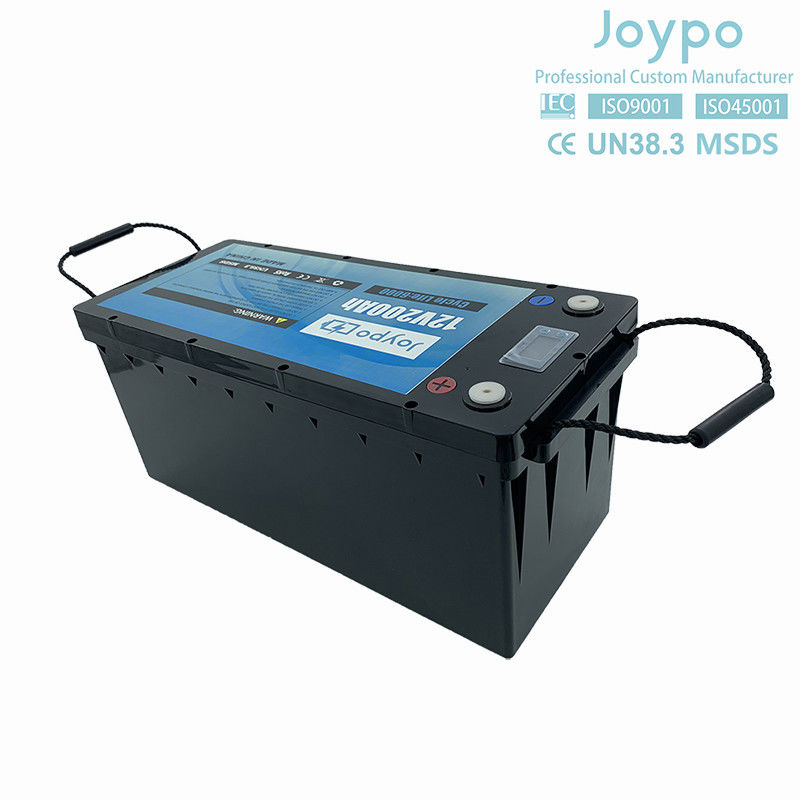

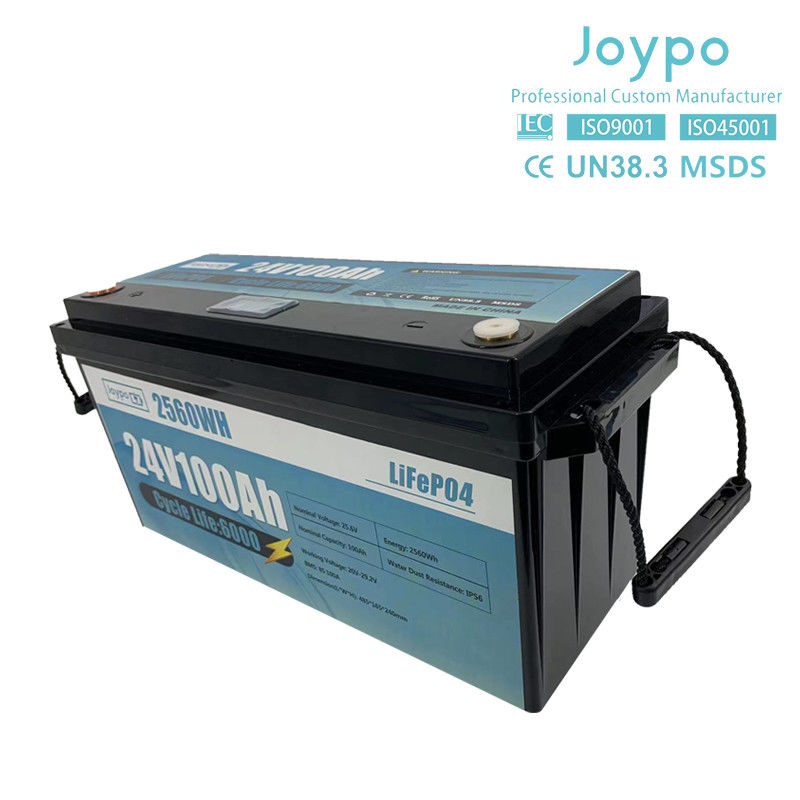

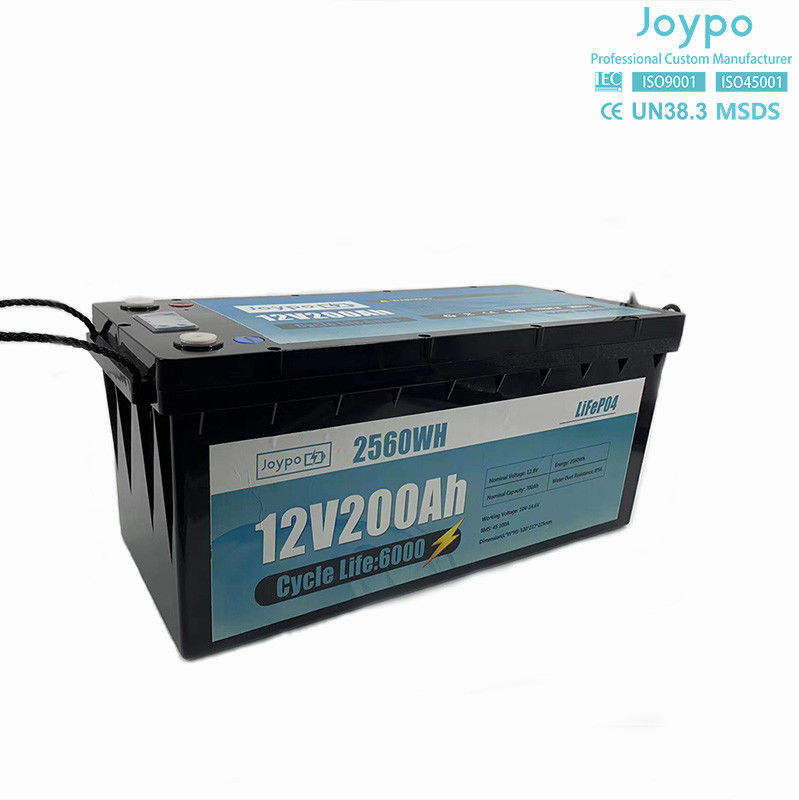

Joypo Long Life RV Camper Lifepo4 Battery 12V 24V 100Ah 200Ah With Smart BMS
Unleash the Freedom of the Open Road: Choose Joypo RV Batteries for Uninterrupted Power:
1. Smart BMS, with complete protection from short circuits, over-current, over-voltage, overcharge, over-discharge, over heat, etc.
2. LED indicator shows the voltage and power percentage in real-time.
3. High Discharge / Fast Charge, more convenient to use.
4. Lightweight with small size.
5. Deep Cycle and as long as 6000 times long cycle life.
6. Maintenance-free.
7. Environment-friendly.
8. CAN RS485 Communication / Bluetooth optional.
|
Model
|
JP024100AP
|
|
ELECTRICAL SPECIFICATIONS
|
|
|
Cell Type - Chemistry
|
LiFePO4
|
|
Packing model
|
8S1P
|
|
Nominal Capacity
|
100Ah
|
|
Nominal Voltage
|
25.6V
|
|
Energy
|
2560Wh
|
|
MECHANICAL SPECIFICATIONS
|
|
|
Weight
|
Approx. 22kg
|
|
Dimensions (L x W x H)
|
485*165*240mm or customized
|
|
DISCHARGING SPECIFICATIONS
|
|
|
Discharge cut-off voltage
|
20 V
|
|
Peak discharge current
|
200A (duration 2S)
|
|
Rated discharge current
|
100A
|
|
Self-discharge rate
|
≤2% per month(25°C)
|
|
CHARGING SPECIFICATIONS
|
|
|
Charging cut-off voltage
|
29.2V
|
|
Continuous charging current
|
100A
|
|
SAFETY&Quality
|
|
|
Working temperature
|
-20°C-55°C
|
|
Storage temperature
|
0～45°C
|
|
Waterproof level
|
IP65
|
|
Certificate & Safety Standard
|
UL/ROHS/TUV/FCC / CE / MSDS/EN62619 / IEC62040 / UN38.3
|
|
Communication
|
CAN/RS485/DRY CONTACT
|
|
Cycle life
|
6000 times, capacity≥80% @25℃ 0.5C/0.5C |
