Place of Origin:
Hunan, China
Brand Name:
JOYPO
Certification:
MSDS,UN38.3,CE
Model Number:
JP024100AP
Video

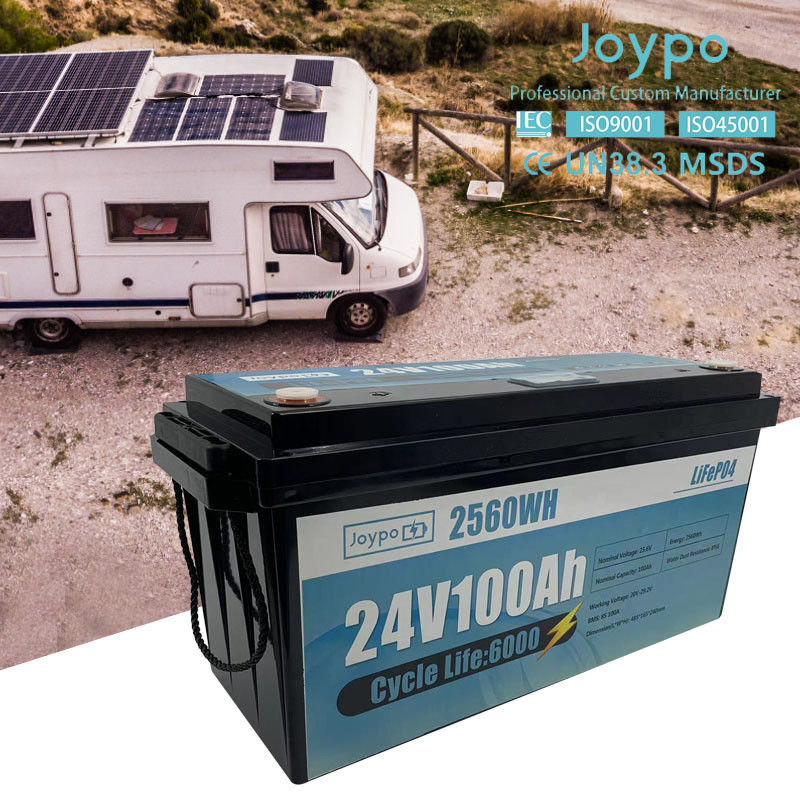

Joypo 6000 Cycles Rechargeable RV Lithium Battery Pack 100Ah 200Ah 24V
LiFePO4 Battery Features:
1.Longer service life: cycle life 6000+ times, service life can reach 10 years,it’s much longer than Lead acid battery’s life.If the battery is not used continually, it should be charged every 3-5 months,that can make the battery available for a longer time.
2.Built-in BMS: Joypo LiFePO4 battery has a built-in BMS, it can prevent over-charge,over-discharge,over current,over voltage,over heat,short circuit.
3.Light and practical: Joypo LiFePO4 battery can achieve truly deft effect, It weighs only 30% as much as a typical lead-acid battery, easy to carry and easy to install is the best choice for marine and RV.
4.Faster charging speed, reducing waiting time and improving usage efficiency
5.Eco-friendly, your small choice will benifit the world.
6.More widely used: Joypo LiFePO4 battery can be used in the following fields: electric vehicles, recreational vehicles, golf carts, RV, boats, towing motors, solar street light, UPS backup power supply, home solar equipment, portable TV, etc.
|
Model
|
JP024100AP
|
JP024200AP |
|
ELECTRICAL SPECIFICATIONS
|
|
|
|
Cell Type - Chemistry
|
LiFePO4
|
LiFePO4 |
|
Packing model
|
8S1P
|
8S2P |
|
Nominal Capacity
|
100Ah
|
200Ah |
|
Nominal Voltage
|
25.6V
|
25.6V |
|
Energy
|
2560Wh
|
5120Wh |
|
MECHANICAL SPECIFICATIONS
|
|
|
|
Weight
|
Approx. 22kg(48.5lb)
|
Approx. 45kg(99lb) |
|
Dimensions (L x W x H)
|
485*165*240mm or customized
|
customized |
|
DISCHARGING SPECIFICATIONS
|
|
|
|
Discharge cut-off voltage
|
20 V
|
20 V |
|
Peak discharge current
|
200A (duration 2S)
|
300A (duration 2S) |
|
Rated discharge current
|
100A
|
100A |
|
Self-discharge rate
|
≤2% per month(25°C)
|
≤2% per month(25°C) |
|
CHARGING SPECIFICATIONS
|
|
|
|
Charging cut-off voltage
|
29.2V
|
29.2V |
|
Continuous charging current
|
50A
|
100A |
|
SAFETY&Quality
|
|
|
|
Working temperature
|
-20°C-55°C
|
-20°C-55°C |
|
Storage temperature
|
0～45°C
|
0～45°C |
|
Waterproof level
|
IP65
|
IP65 |
|
Certificate & Safety Standard
|
UL/ROHS/TUV/FCC / CE / MSDS/EN62619 / IEC62040 / UN38.3
|
UL/ROHS/TUV/FCC / CE / MSDS/EN62619 / IEC62040 / UN38.3 |
|
Communication
|
CAN/RS485/DRY CONTACT
|
|
|
Cycle life
|
6000 times, capacity≥80% @25℃ 0.5C/0.5C |
6000 times, capacity≥80% @25℃ 0.5C/0.5C |
FAQ:
1. Can I have a sample order?
Re: Yes, the sample order is welcome here, so you can test the product quality.
2. How long is the lead time?
Re: Sample order takes around 7-20 days, bulk order takes 20-35 days, depending on the order size and production schedule.
3. How long is the battery warranty?
Re: 2 years, can be extended for large orders.
4. Can you supply the charger for the battery?
Re: Yes, if you need the charger, please tell us before ordering, for the charger cost is not included in the battery price.
5. What products can you supply?
Re: Except for the lithium batteries and cells, we can also supply the all-in-one solar power system, solar panels, inverter, and brackets.
6. How can you guarantee the quality?
Strict Quality Checks: Multiple rounds of strict quality checks during manufacturing. Each battery is carefully inspected to meet and exceed industry standards.
High-Quality Materials: This includes advanced cell technologies and materials that are proven to deliver superior energy density, longer cycle life, and stable performance.
Customer Feedback: Our customers' satisfaction is a testament to the quality of our batteries. Positive reviews and long-term customer relationships underscore our commitment to delivering on our promises.
Warranty: A long-term warranty not only protects your investment but also reflects our confidence in the durability and performance of our batteries.
We understand the importance of earning your trust, and we are committed to delivering a product that exceeds your expectations. Should you have any further questions or concerns, please feel free to reach out to our customer service team. We look forward to the opportunity to serve you and provide you with reliable, high-quality batteries.
