Place of Origin:
Hunan, China
Brand Name:
Joypo or buyer's brand
Certification:
CE,MSDS,UN38.3
Model Number:
JP-GY10-10

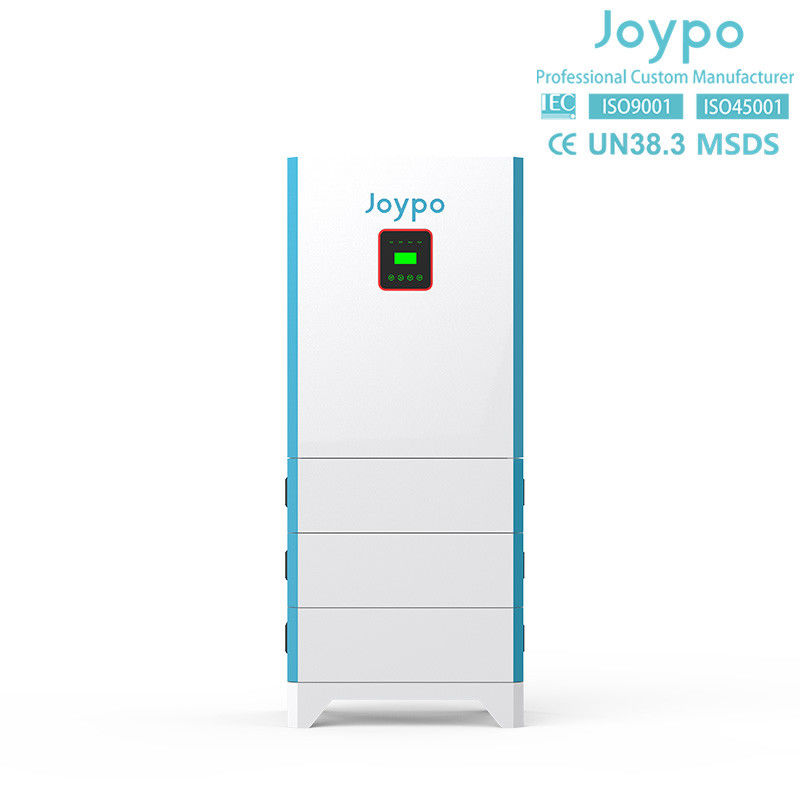

Joypo 10KW Inverter With Lithium Ion Battery System For Home Solar Power Storage
Reasons to choose Joypo ESS:
Safe and reliable, built-in smart BMS, high quality A grade LiFePO4 cells, high voltage storage lithium battery and 3 phase hybrid inverter.
Easy to install, integrated battery and inverter, with hidden cables, save effort and time to install
Long cycle life, more than 6000 times long lifespan.
Stackable batteries, flexible installation from 10kwh to 30kwh.
Easy to operate, LCD screen displays battery status in real time.
Smart home, support remote control via cellphone or PC side.
Support ODM/OEM, low MOQ, easily build your own brand.
|
Item Name
|
10KW Home Solar Energy Storage System
|
|||
|
Model No.
|
JP-GY10-10
|
JP-GY10-15
|
JP-GY10-20
|
JP-GY10-25
|
|
Working Voltage
|
172.8V-233.6V
|
259.2V-350.4V
|
345.6V-467.2V
|
432V-584V
|
|
Max charge voltage
|
233.6V
|
350.4V
|
467.2V
|
584V
|
|
Module energy
|
5.12KWh
|
|||
|
Module quantity
|
2
|
3
|
4
|
5
|
|
Energy
|
10.24kwh
|
15.36kwh
|
20.48kwh
|
25.6kwh
|
|
Size(mm)
|
630*420*1300
|
630*420*1500
|
630*420*1700
|
630*420*1900
|
|
Weight(kg)
|
205Kg
|
260Kg
|
315Kg
|
370Kg
|
|
Nominal output voltage
|
380V, 3W+N+PE
|
|||
|
Max Continuous Charge and Discharge Current
|
40A
|
|||
|
Max Charge Power
|
10KW
|
|||
|
IP level
|
IP21
|
|||
|
Communication
|
RS485/CAN/WIFI
|
|||
|
Cycle life
|
≥6000 times
|
|||
|
Warranty
|
5 Years
|
|||
|
Supported Certifications
|
CE/RoHS/KC/BIS/MSDS/UN38.3 etc
|
|||
Energy storage batteries are essential in home solar power systems. Here are some of the main reasons:
Energy Independence: Solar power systems can provide clean, renewable electricity to homes by converting solar energy into electricity. However, solar power generation is affected by sunlight intensity, weather conditions and seasonal changes and is unstable. Energy storage batteries can store excess solar energy for use when solar energy is unavailable or insufficient, making the home self-sufficient.
Savings on electricity bills: Energy storage batteries allow households to store solar energy during times of peak electricity prices, such as peak electricity prices, and use the stored energy when electricity prices are low or solar power is unavailable. This optimizes energy usage and reduces home electricity bills.
Grid failure backup: In traditional solar power systems, when the grid fails, the system will also stop working to ensure safety. However, if a home has an energy storage battery system installed, it can continue to provide power to the home when the power grid fails, improving the home's power supply reliability and emergency backup capabilities.
Smooth power fluctuations: Solar power systems are affected by changes in sunlight, causing power output to fluctuate. Energy storage batteries can smooth these power fluctuations, provide stable power output, and reduce dependence on the power grid.
Environmental protection: Energy storage batteries can help households reduce their reliance on traditional power grids and reduce the use of fossil fuels, thereby reducing greenhouse gas emissions and reducing negative impacts on the environment.
