Place of Origin:
Hunan, China
Brand Name:
Joypo or buyer's brand
Certification:
CE,MSDS,UN38.3
Model Number:
JP-GY10-15

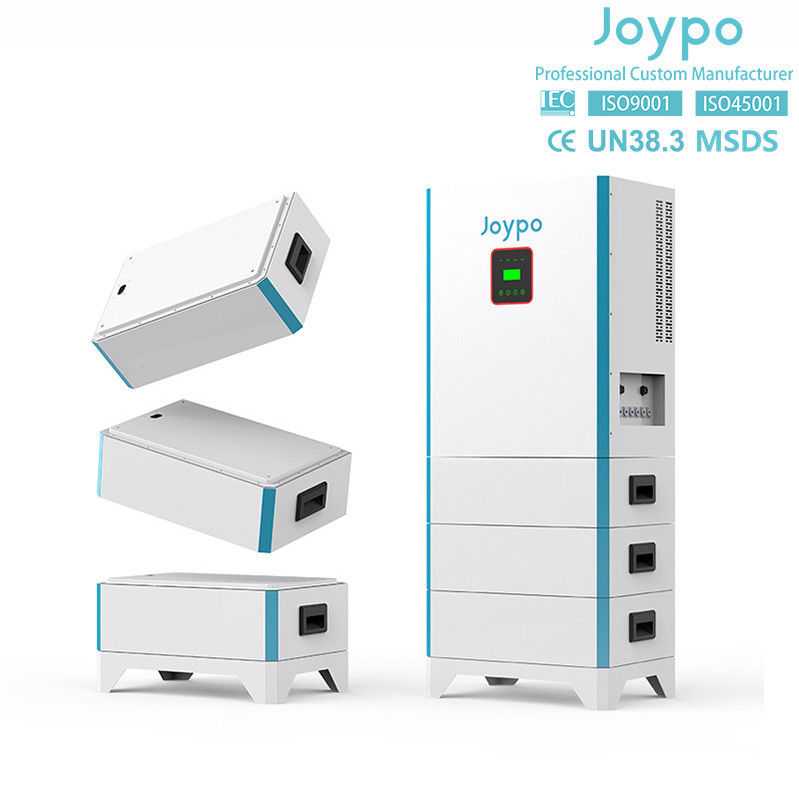

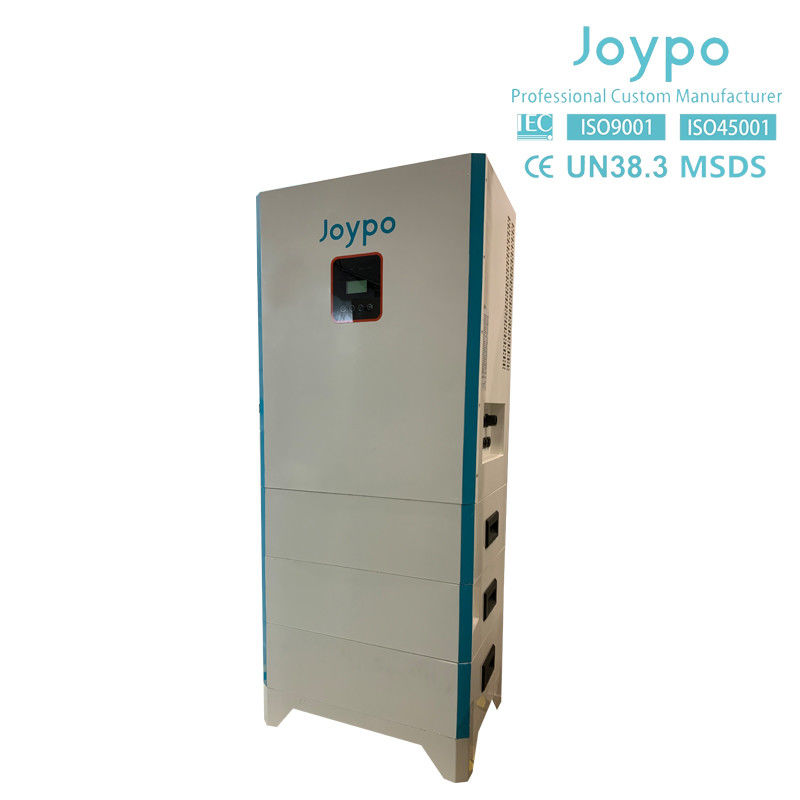

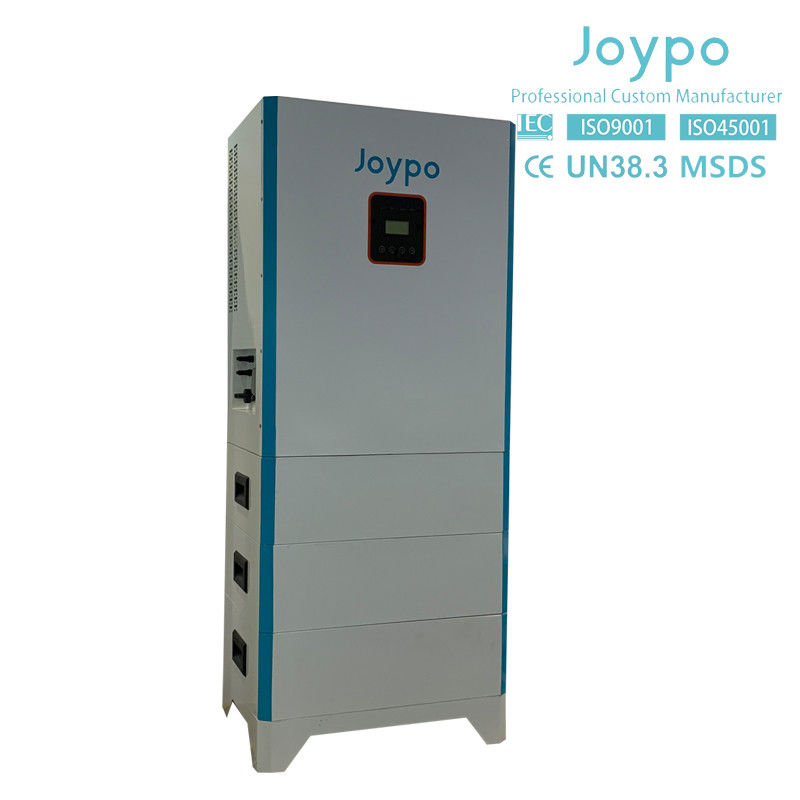

Joypo All-In-One 10kw 15kwh Solar Energy Storage System With 3 Phase Hybrid Inverter With High Voltage Battery
Features:
1. Three phase, hybrid inverter, high voltage battery
2. Flexible capacity options from 5.12 to 30.72kwh
3. Excellent safety of LiFePO4 battery with smart BMS
4. Easy installation with module and stackable design
5. Exceptional lifespan, more than 6000 times cycle life, 5-10 years warranty
6. Support remotely control via APP on your cell phone
| Model No. | JP-GY10-15 |
| Energy | 15.36KWh |
| Working voltage | 259.2V-350.4V |
| Max Charging Voltage | 350.4V |
| Module Energy | 5.12KWh |
| Module Quantity | 3 |
| Battery type | LFP |
| Size | 630*420*1500mm |
| Weight | 260Kg |
| Nominal Output Voltage | 380V, 3W+N+PE |
| Battery Module Size(mm) | 630*420*210mm |
| Max Continuous Charge and Discharge Current | 40A |
| Max Charge Power | 10KW |
| Working Altitude | ≤4000m |
| IP Degree | IP21 |
| Installation Method | Floor-standing |
| Cycle Life | 10 years |
| Communication | RS485/CAN/WIFI |
Home solar energy storage systems using high-voltage lithium batteries for energy storage have the following advantages over low-voltage lithium batteries:
1. High energy density: High-voltage lithium batteries can store more electrical energy and provide power for a longer period of time.
2. Higher charge and discharge efficiency: High-voltage lithium batteries with less energy lost during storage and release, improving the overall efficiency of the system.
3. Smaller volume and weight: High-voltage lithium battery provides more flexible installation and layout options for home applications.
4. Longer service life: High-voltage lithium batteries generally have a longer service life, reducing the frequency and cost of battery replacement.
It should be noted that high-voltage lithium batteries also have some potential challenges and considerations. For example, high-voltage lithium batteries have higher requirements for the electrical safety of the system and require stricter protection measures to prevent overcharge, over-discharge, short circuit and other problems. In addition, the cost of high-voltage lithium batteries is usually higher, so when choosing a suitable energy storage system, you need to comprehensively consider factors such as cost, performance, safety, and reliability, and conduct detailed consultation and evaluation with a professional solar system supplier.
