Place of Origin:
Hunan, China
Brand Name:
JOYPO
Certification:
MSDS,UN38.3,CE
Model Number:
JP-SR5-20S

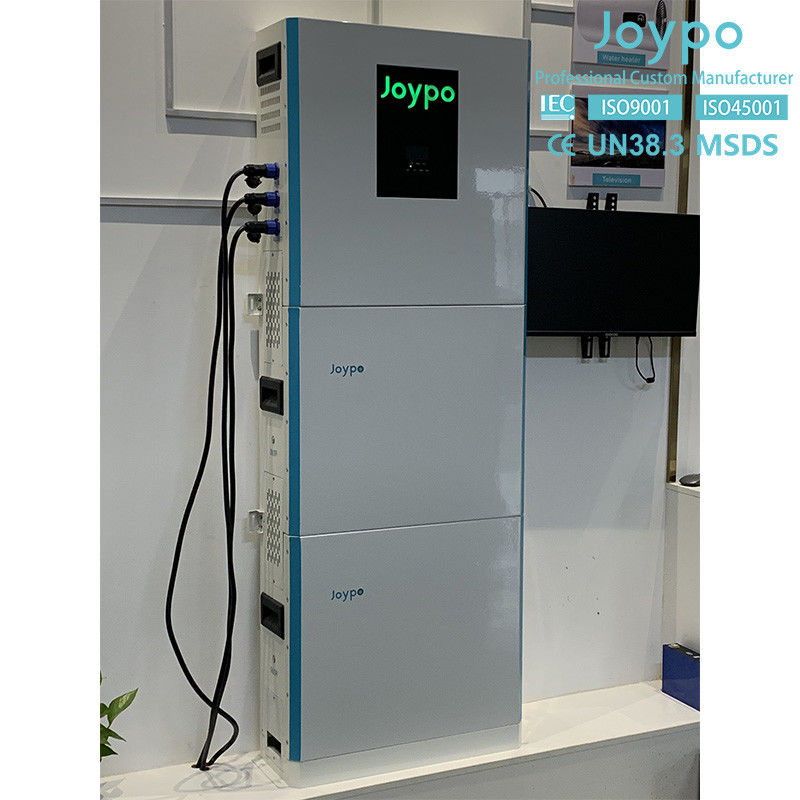

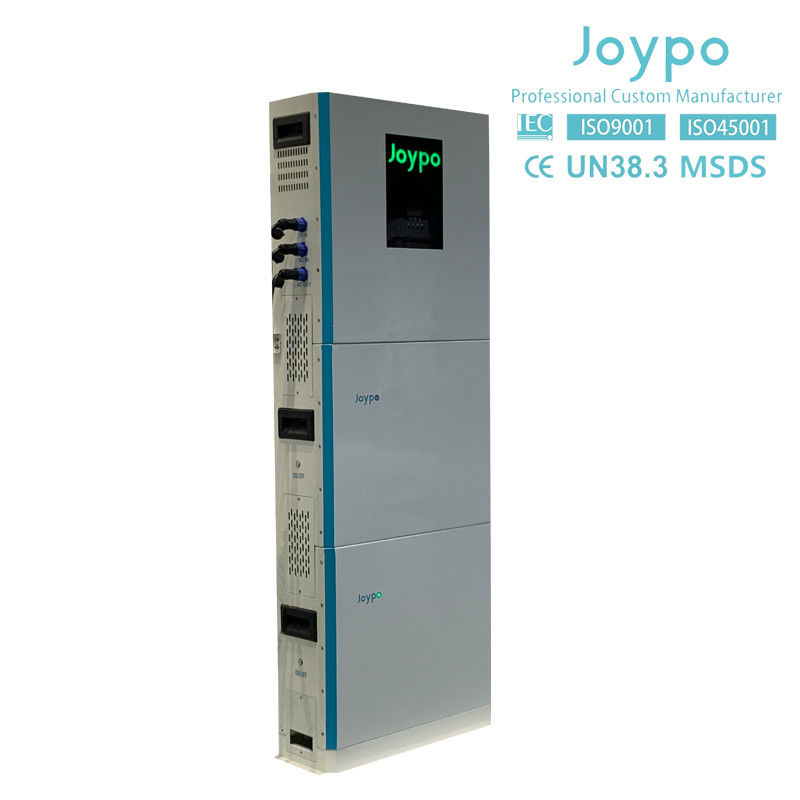

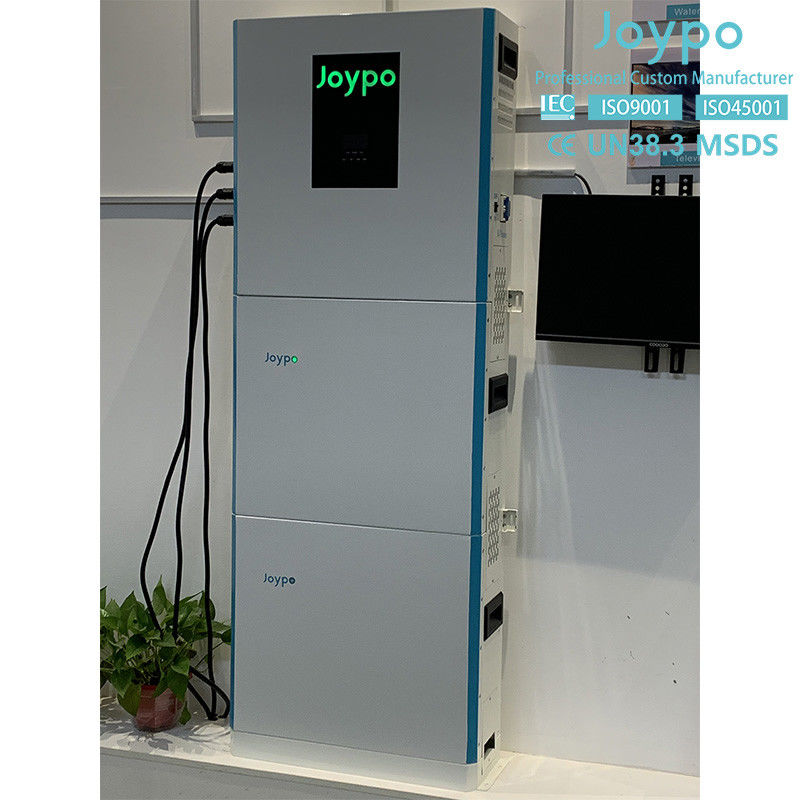

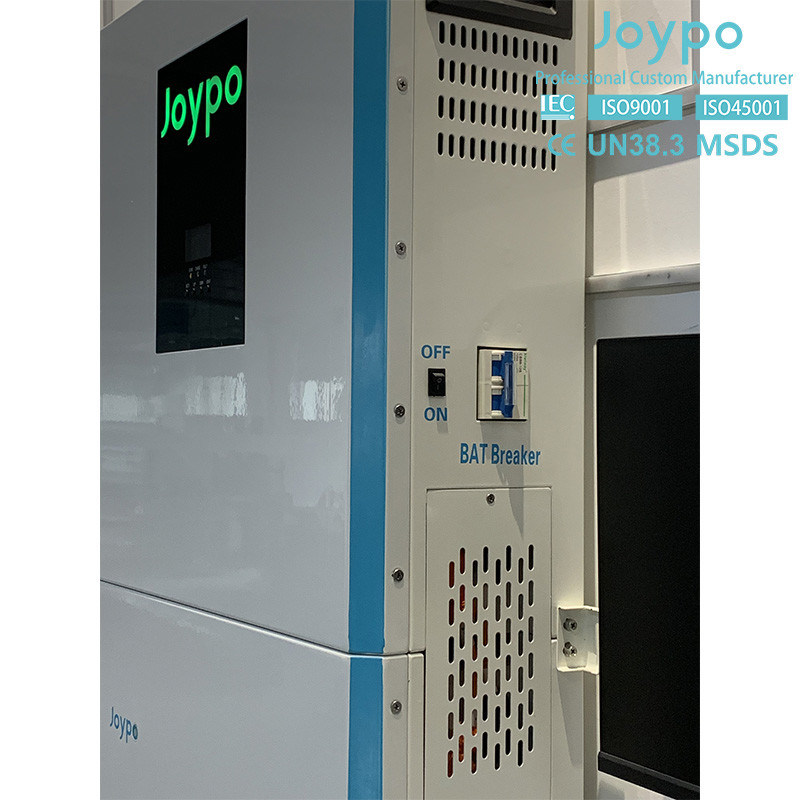

Joypo 51.2V 100Ah 200Ah 300Ah 400Ah Solar PV Battery Storage Systems For Home
Joypo off-grid home energy storage all-in-one machine is a device that integrates solar power generation, battery energy storage and energy management functions. It has the following features and benefits:
1. Integrated design: The home energy storage all-in-one machine integrates the solar power generation system and the battery energy storage system into one device, simplifying the installation and operation of the system. Users only need to purchase one device to realize the functions of solar power generation and energy storage.
2. Versatility: The household energy storage integrated machine can not only convert solar energy into electrical energy for power supply, but also store excess electrical energy for later use. At the same time, it can also intelligently manage energy use and storage based on the household's energy needs and electricity prices to achieve optimal utilization of energy.
3. Automatic switching and backup power function: When the power grid fails, the home energy storage integrated machine can automatically switch to the backup power mode to provide continuous power supply for the home. This is important in responding to grid failures and providing emergency backup energy.
4. Saving energy costs: Home energy storage integrated machines can help households store electrical energy when electricity prices are low and use the stored electrical energy when electricity prices are high by optimizing energy use and storage, thereby reducing household energy costs.
Energy management and monitoring: Home energy storage integrated machines are usually equipped with energy management systems and monitoring systems that can monitor solar power generation, battery status and energy consumption in real time. Users can remotely monitor and control through mobile applications or network interfaces to conveniently manage and optimize home energy use.
5. Environmentally friendly: By using solar energy to generate and store electrical energy, household energy storage integrated machines reduce dependence on traditional power grids and reduce the use of fossil fuels, thereby reducing greenhouse gas emissions and becoming more environmentally friendly.
|
Item Name
|
5KW Home Solar Energy Storage System
|
|||
|
Model No.
|
JP-SR5-5S
|
JP-SR5-10S
|
JP-SR5-15S
|
JP-SR5-20S
|
|
Nominal output voltage
|
230V
|
|||
|
Rated output frequency
|
50HZ/60HZ
|
|||
|
Module energy
|
5.12KWh
|
|||
|
Module quantity
|
1
|
2
|
3
|
4
|
|
Energy
|
5.12kwh
|
10.24kwh
|
15.36kwh
|
20.48kwh
|
|
Size(mm)
|
1160*600*210
|
1660*600*210
|
1660*1200*210
|
1660*1200*210
|
|
Weight
|
84kg
|
141kg
|
198kg
|
255kg
|
|
MPPT voltage range
|
60-145V
|
|||
|
Max bypass overload current
|
40A
|
|||
|
Max PV Input Power
|
4400W
|
|||
|
IP level
|
IP21
|
|||
|
Communication
|
RS485/CAN/WIFI
|
|||
|
Cycle life
|
≥6000 times
|
|||
|
Warranty
|
10 Years
|
|||
|
Supported Certifications
|
CE/RoHS/KC/BIS/MSDS/UN38.3 etc
|
|||
Why choose Joypo?
* ISO 9001 & 14001 management certified factory
* R&D team with experienced engineers and designers
* OEM&ODM professionals
* Multiple production lines and multiple production workers
* Use only high quality brand new materials
* Strict quality control process before, during and after production, 100% quality test before leaving factory
* Production integration
