Home Solar Energy Storage System Battery LiFePO4 20KWH 5KW Off Grid Inverter

Home Solar Energy Storage System Battery LiFePO4 20KWH 5KW Off Grid Inverter

20KWH Solar Energy Storage System

LiFePO4 Solar Energy Storage System

Place of Origin:

Hunan, China

Brand Name:

JOYPO

Certification:

MSDS,UN38.3,CE

Model Number:

JP-SR5-20S

Contact Us
Request A Quote
Product Details
Product Name:
Integrated Inverter And Lithium Ion Battery System For Home Solar Power
Grid Connection:
Off-grid
Phase:
Single Phase
Battery Size:
51.2V 400Ah
Battery Storage Energy:
20kwh
Max PV Input Power:
4400W
Certificates:
CE, MSDS, UN38.8
Warranty:
5-10 Years
Communication:
Can/RS485/WiFi
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$1099-4999/piece
Packaging Details
Carton or Wooden Carton
Delivery Time
7-20 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 pieces per month
Product Description

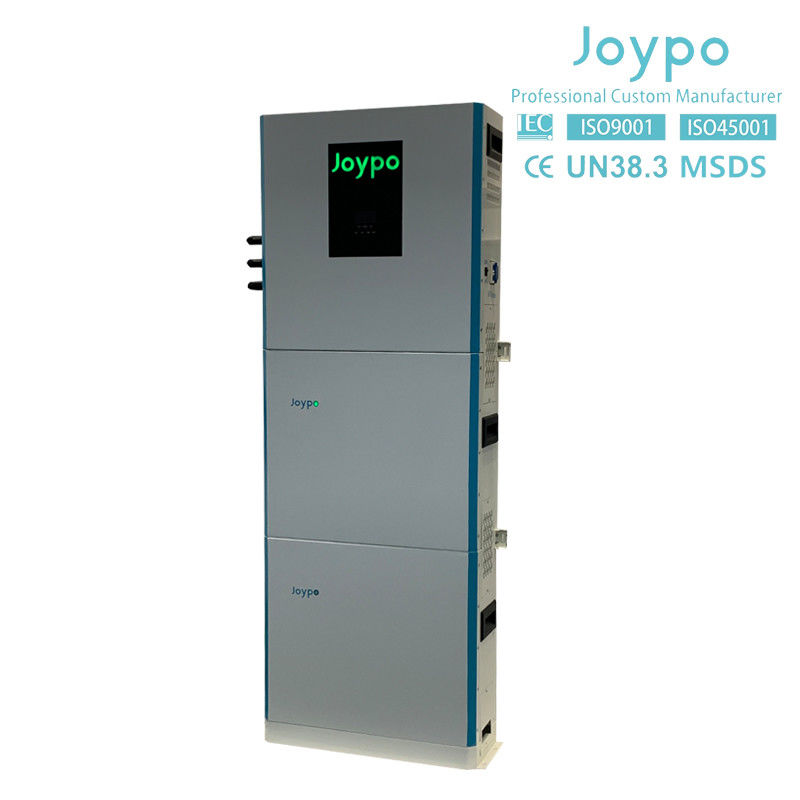

Joypo Home Energy Storage Systems Battery LiFePO4 20KWH And 5KW Off Grid Inverter


Joypo off-grid home energy storage all-in-one machine is a device that integrates solar power generation, battery energy storage and energy management functions. It has the following features and benefits:

1. Integrated design: The home energy storage all-in-one machine integrates the solar power generation system and the battery energy storage system into one device, simplifying the installation and operation of the system. Users only need to purchase one device to realize the functions of solar power generation and energy storage.

2. Versatility: The household energy storage integrated machine can not only convert solar energy into electrical energy for power supply, but also store excess electrical energy for later use. At the same time, it can also intelligently manage energy use and storage based on the household's energy needs and electricity prices to achieve optimal utilization of energy.

3. Automatic switching and backup power function: When the power grid fails, the home energy storage integrated machine can automatically switch to the backup power mode to provide continuous power supply for the home. This is important in responding to grid failures and providing emergency backup energy.

4. Saving energy costs: Home energy storage integrated machines can help households store electrical energy when electricity prices are low and use the stored electrical energy when electricity prices are high by optimizing energy use and storage, thereby reducing household energy costs.
Energy management and monitoring: Home energy storage integrated machines are usually equipped with energy management systems and monitoring systems that can monitor solar power generation, battery status and energy consumption in real time. Users can remotely monitor and control through mobile applications or network interfaces to conveniently manage and optimize home energy use.

5. Environmentally friendly: By using solar energy to generate and store electrical energy, household energy storage integrated machines reduce dependence on traditional power grids and reduce the use of fossil fuels, thereby reducing greenhouse gas emissions and becoming more environmentally friendly.



Item Name
5KW Home Solar Energy Storage System
Model No.
JP-SR5-5S
JP-SR5-10S
JP-SR5-15S
JP-SR5-20S
Nominal output voltage
230V
Rated output frequency
50HZ/60HZ
Module energy
5.12KWh
Module quantity
1
2
3
4
Energy
5.12kwh
10.24kwh
15.36kwh
20.48kwh
Size(mm)
1160*600*210
1660*600*210
1660*1200*210
1660*1200*210
Weight
84kg
141kg
198kg
255kg
MPPT voltage range
60-145V
Max bypass overload current
40A
Max PV Input Power
4400W
IP level
IP21
Communication
RS485/CAN/WIFI
Cycle life
≥6000 times
Warranty
10 Years
Supported Certifications
CE/RoHS/KC/BIS/MSDS/UN38.3 etc



Home Solar Energy Storage System Battery LiFePO4 20KWH 5KW Off Grid Inverter 0




Advantages:

1. Energy independence

2. Reduce your electricity bill

3. Keep your appliances running during power shortages

4. Higher property values

5. Environmental benefits
