Place of Origin:
Hunan, China
Brand Name:
Joypo or buyer's brand
Certification:
CE,MSDS,UN38.3
Model Number:
JP-GY10-15

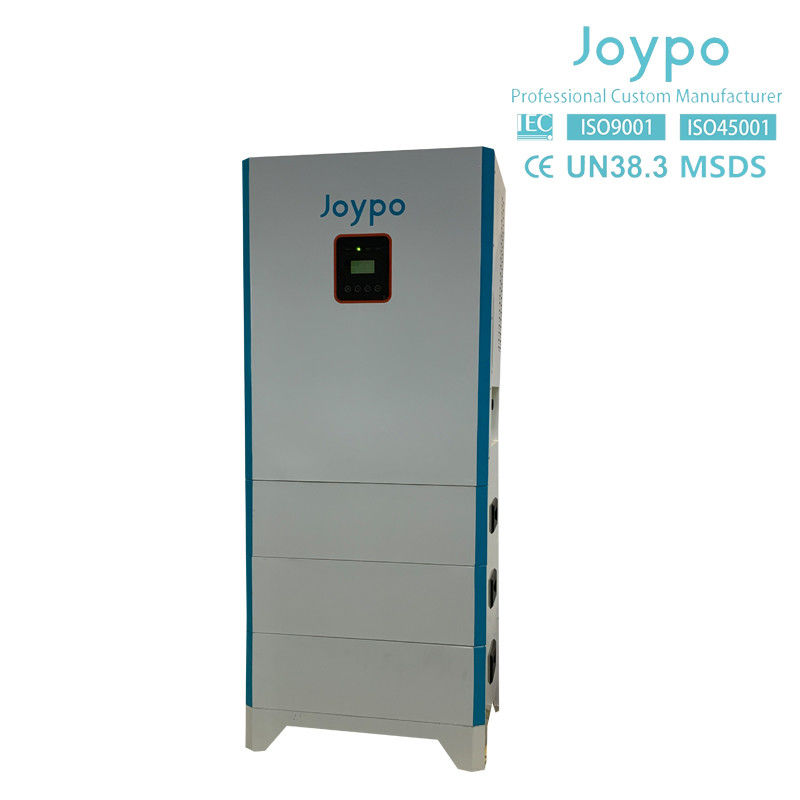

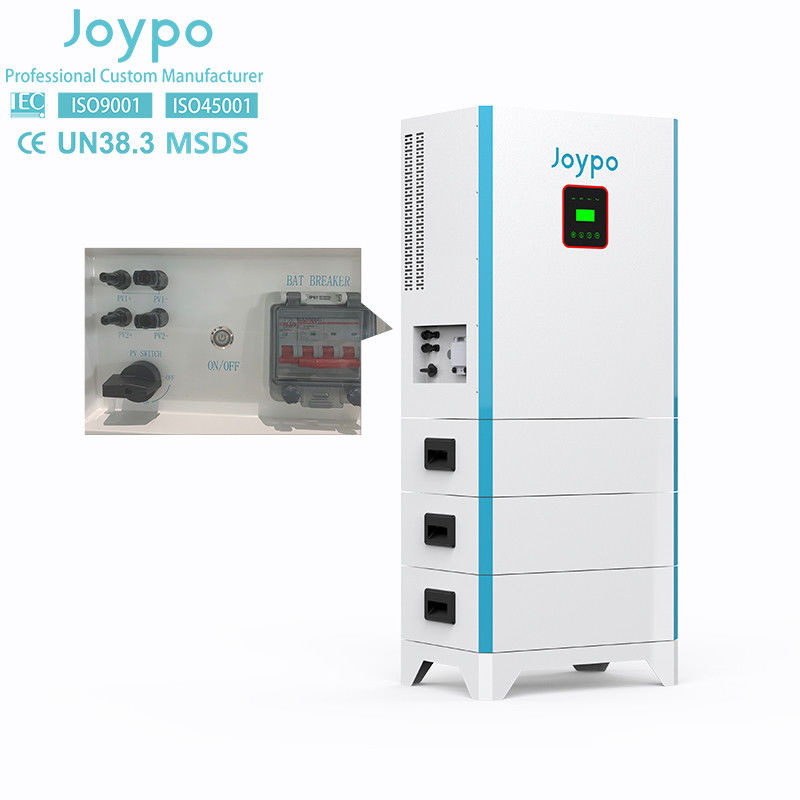

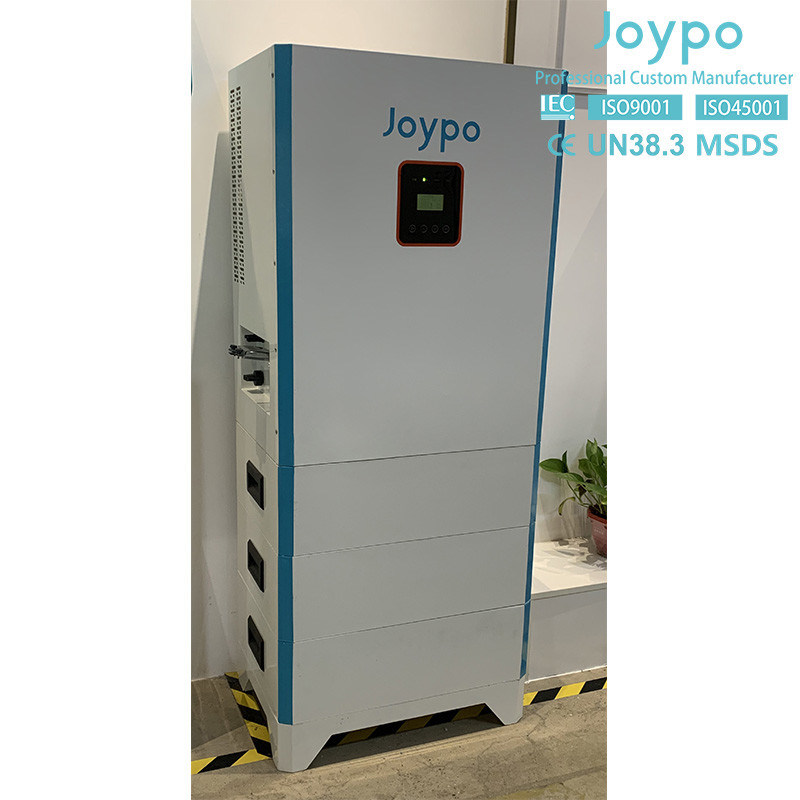

Joypo 3 Phase Home Inverter Hybrid Solar Energy System 10KW With Storage Battery
Reasons to choose Joypo ESS:
Safe and reliable, built-in smart BMS, high quality A grade LiFePO4 cells, high voltage storage lithium battery and 3 phase hybrid inverter.
Easy to install, integrated battery and inverter, with hidden cables, save effort and time to install
Long cycle life, more than 6000 times long lifespan.
Stackable batteries, flexible installation from 10kwh to 30kwh.
Easy to operate, LCD screen displays battery status in real time.
Smart home, support remote control via cellphone or PC side.
Support ODM/OEM, low MOQ, easily build your own brand.
|
Item Name
|
10KW Home Solar Energy Storage System
|
|||
|
Model No.
|
JP-GY10-10
|
JP-GY10-15
|
JP-GY10-20
|
JP-GY10-25
|
|
Working Voltage
|
172.8V-233.6V
|
259.2V-350.4V
|
345.6V-467.2V
|
432V-584V
|
|
Max charge voltage
|
233.6V
|
350.4V
|
467.2V
|
584V
|
|
Module energy
|
5.12KWh
|
|||
|
Module quantity
|
2
|
3
|
4
|
5
|
|
Energy
|
10.24kwh
|
15.36kwh
|
20.48kwh
|
25.6kwh
|
|
Size(mm)
|
630*420*1300
|
630*420*1500
|
630*420*1700
|
630*420*1900
|
|
Weight(kg)
|
205Kg
|
260Kg
|
315Kg
|
370Kg
|
|
Nominal output voltage
|
380V, 3W+N+PE
|
|||
|
Max Continuous Charge and Discharge Current
|
40A
|
|||
|
Max Charge Power
|
10KW
|
|||
|
IP level
|
IP21
|
|||
|
Communication
|
RS485/CAN/WIFI
|
|||
|
Cycle life
|
≥6000 times
|
|||
|
Warranty
|
5 Years
|
|||
|
Supported Certifications
|
CE/RoHS/KC/BIS/MSDS/UN38.3 etc
|
|||
Advantages:
1. Energy independence: get rid of reliance on the main grid, no longer worry about the power shortages and energy crisis, give your family a sense of security.
2. Save energy and money: zero electricity bill is possible.
3. Invest to make money: Sell the extra electricity to the grid to earn a profit.
4. Green and low carbon: enjoy clean energy, save the mother earth.
