Place of Origin:
Hunan, China
Brand Name:
Joypo or buyer's brand
Certification:
CE,MSDS,UN38.3
Model Number:
JP-GY10-15

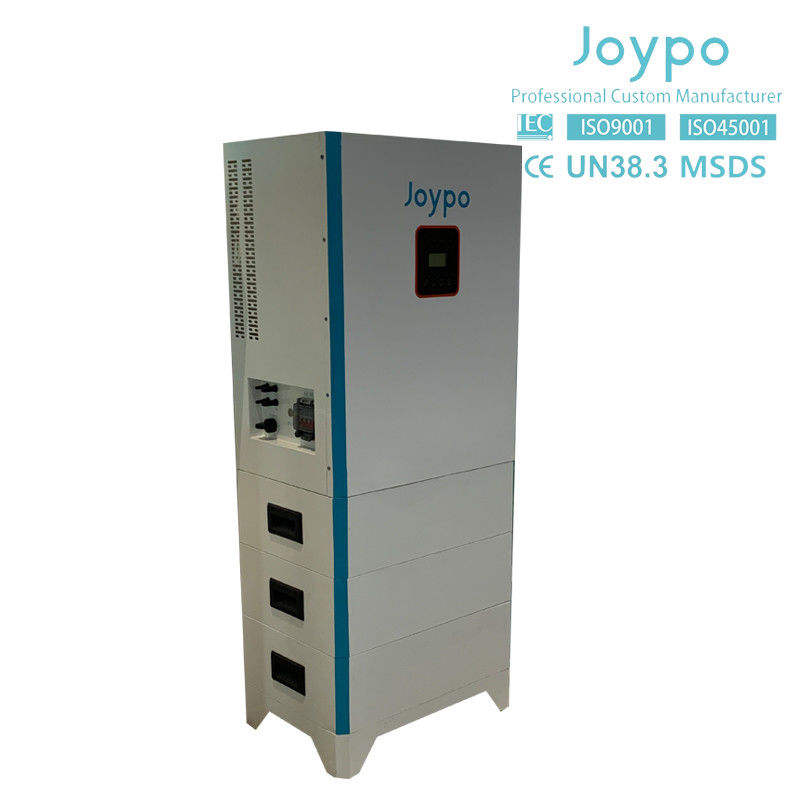

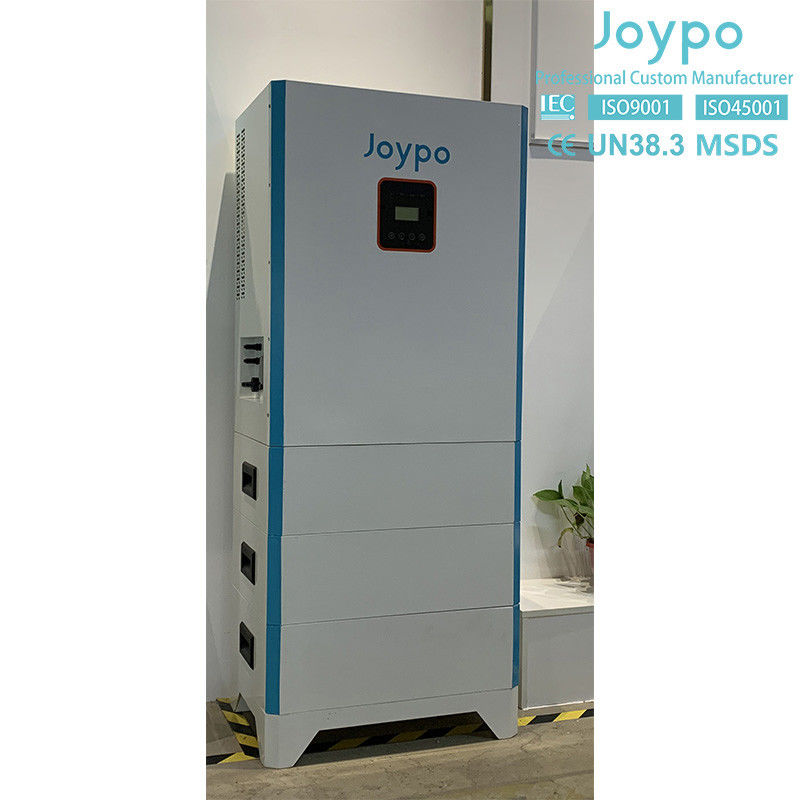

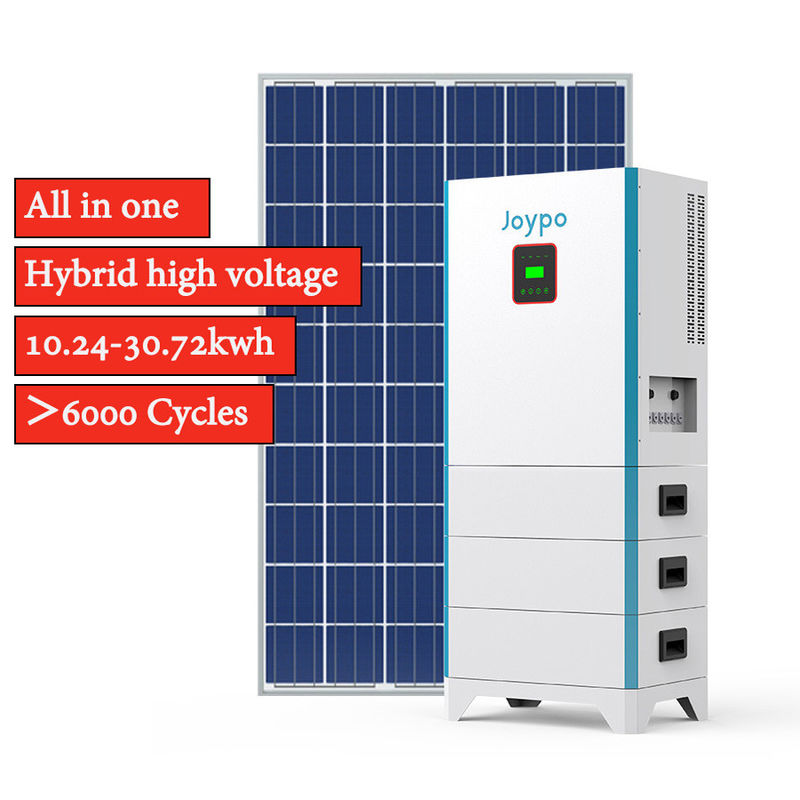

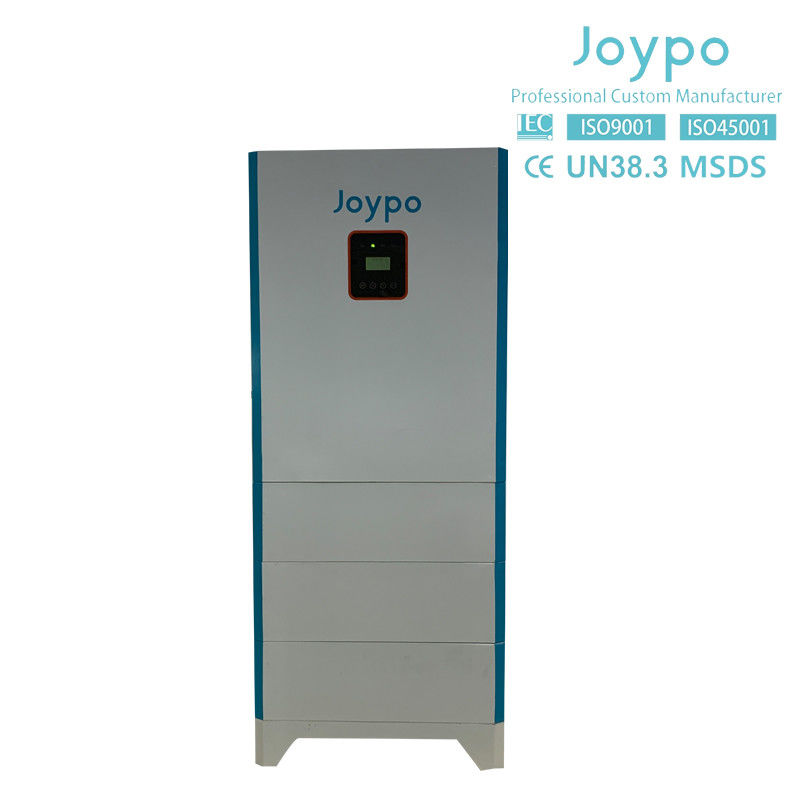

Joypo ESS Lithium Battery Power Storage System With Hybrid Inverter Solar Panels
Reasons to choose Joypo ESS:
Safe and reliable, built-in intelligent BMS, high quality A grade LiFePO4 cells.
Easy to install, integrated lithium battery and hybrid inverter, with hidden cables, save effort and time to install
Long cycle life, more than 6000 times long lifespan.
Stackable batteries, flexible installation from 10kwh to 30kwh.
Easy to operate, LCD screen displays battery status in real time.
Smart home, support remote control via cellphone or PC side.
Support ODM/OEM, low MOQ, easily build your own brand.
|
Item Name
|
10KW Home Solar Energy Storage System
|
|||
|
Model No.
|
JP-GY10-10
|
JP-GY10-15
|
JP-GY10-20
|
JP-GY10-25
|
|
Working Voltage
|
172.8V-233.6V
|
259.2V-350.4V
|
345.6V-467.2V
|
432V-584V
|
|
Max charge voltage
|
233.6V
|
350.4V
|
467.2V
|
584V
|
|
Module energy
|
5.12KWh
|
|||
|
Module quantity
|
2
|
3
|
4
|
5
|
|
Energy
|
10.24kwh
|
15.36kwh
|
20.48kwh
|
25.6kwh
|
|
Size(mm)
|
630*420*1300
|
630*420*1500
|
630*420*1700
|
630*420*1900
|
|
Weight(kg)
|
205Kg
|
260Kg
|
315Kg
|
370Kg
|
|
Nominal output voltage
|
380V, 3W+N+PE
|
|||
|
Max Continuous Charge and Discharge Current
|
40A
|
|||
|
Max Charge Power
|
10KW
|
|||
|
IP level
|
IP21
|
|||
|
Communication
|
RS485/CAN/WIFI
|
|||
|
Cycle life
|
≥6000 times
|
|||
|
Warranty
|
5 Years
|
|||
|
Supported Certifications
|
CE/RoHS/KC/BIS/MSDS/UN38.3 etc
|
|||
Home solar energy storage systems using high-voltage lithium batteries for energy storage have the following advantages over low-voltage lithium batteries:
High energy density: High-voltage lithium batteries generally have higher energy density, which means they can store more electrical energy per unit volume or unit weight. This means that under the same volume or weight, high-voltage lithium batteries can store more electrical energy and provide power for a longer period of time.
Higher charge and discharge efficiency: High-voltage lithium batteries usually have higher charge and discharge efficiency, that is, the energy loss during the power conversion process is lower. This means more solar energy can be efficiently converted into electricity, with less energy lost during storage and release, improving the overall efficiency of the system.
Smaller volume and weight: Due to the high energy density of high-voltage lithium batteries, a smaller number of high-voltage lithium batteries are required for the same electrical energy storage demand, thus reducing the volume and weight of the entire energy storage system. This provides more flexible installation and layout options for home applications.
Longer service life: High-voltage lithium batteries generally have a longer service life, meaning they can be charged and discharged more times. This means that under the same conditions of use, high-voltage lithium batteries can provide longer service life and longer-lasting performance, reducing the frequency and cost of battery replacement.
