Place of Origin:
Hunan, China
Brand Name:
Joypo or buyer's brand
Certification:
CE,MSDS,UN38.3
Model Number:
JP-GY10-15

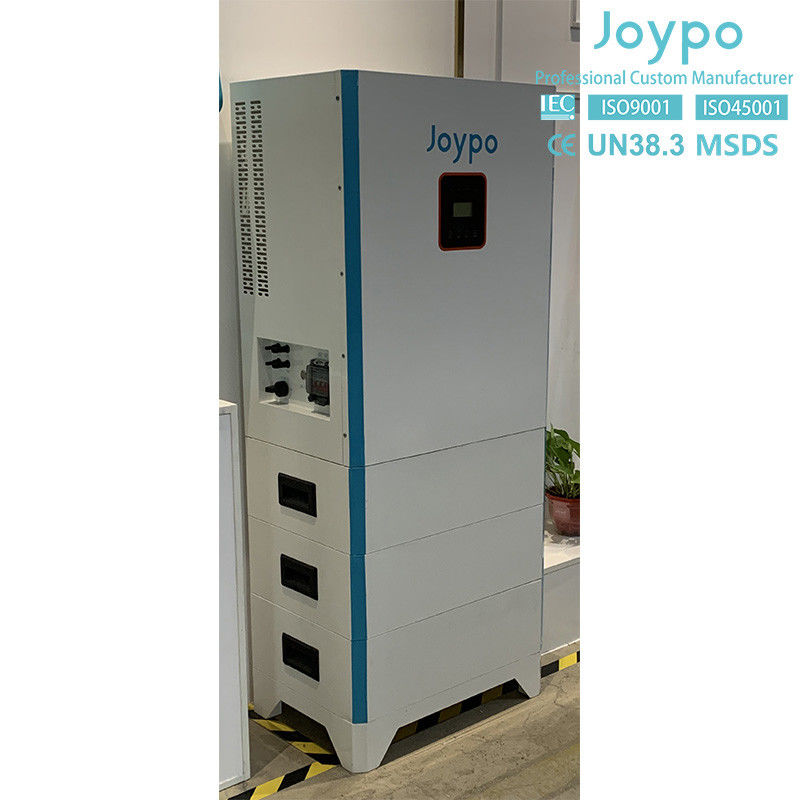

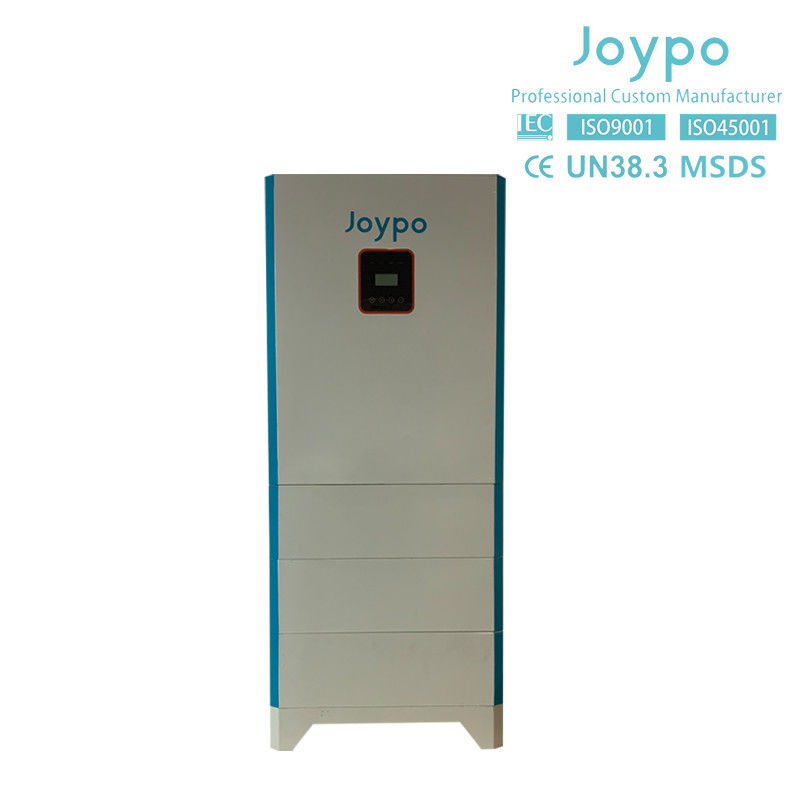

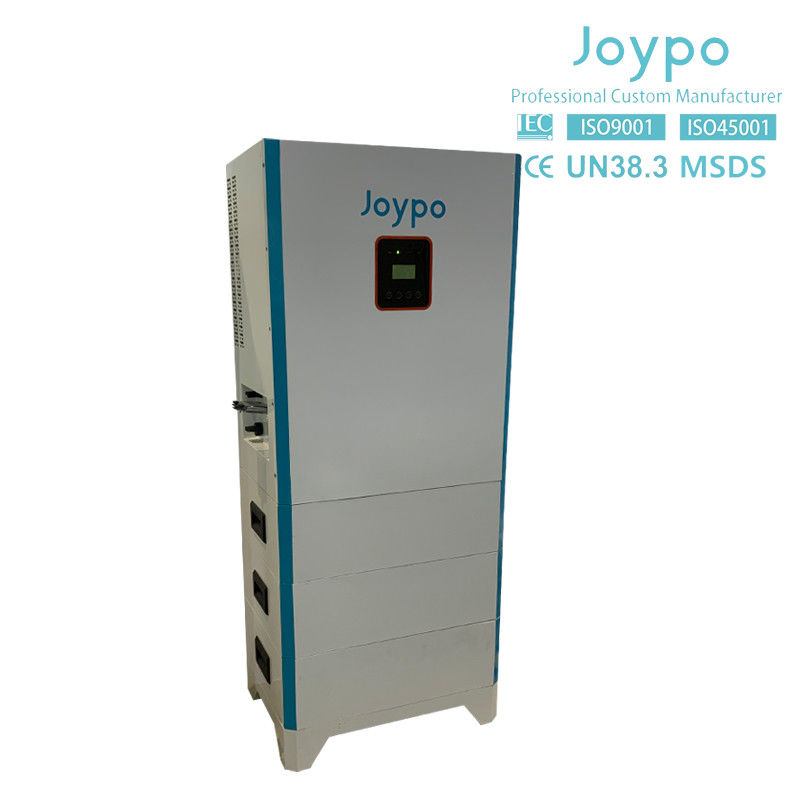

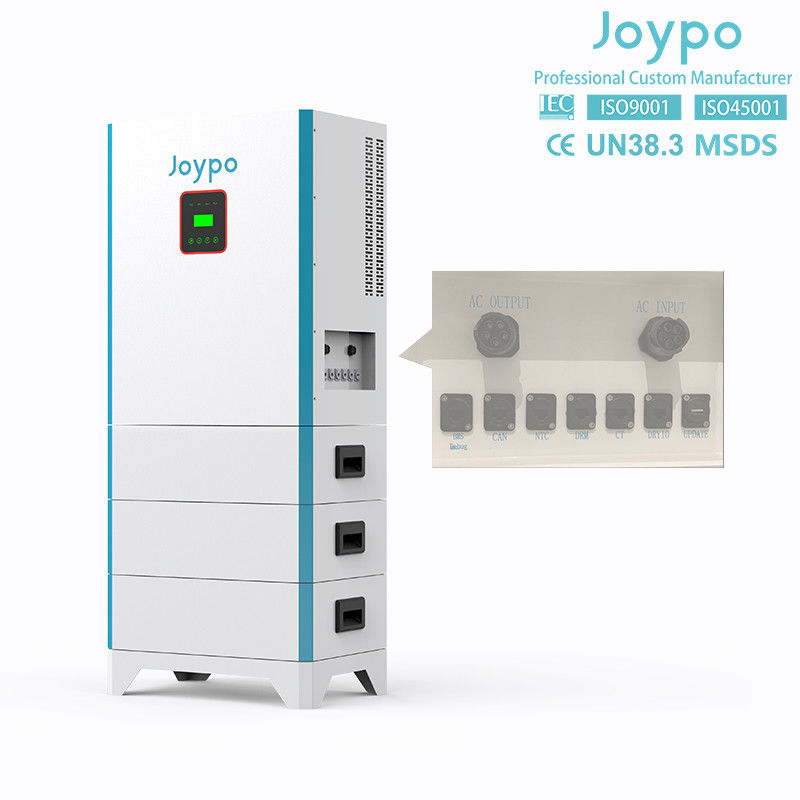

Joypo Home Stackable 15kwh Solar Energy Storage Battery With Build In Inverter
Advantages:
1. Energy independence: get rid of reliance on the main grid, no longer worry about the power shortages and energy crisis, give your family a sense of security.
2. Save energy and money: zero electricity bill is possible.
3. Invest to make money: Sell the extra electricity to the grid to earn a profit.
4. Green and low carbon: enjoy clean energy, save the mother earth.
|
Item Name
|
10KW Home Solar Energy Storage System
|
|||
|
Model No.
|
JP-GY10-10
|
JP-GY10-15
|
JP-GY10-20
|
JP-GY10-25
|
|
Working Voltage
|
172.8V-233.6V
|
259.2V-350.4V
|
345.6V-467.2V
|
432V-584V
|
|
Max charge voltage
|
233.6V
|
350.4V
|
467.2V
|
584V
|
|
Module energy
|
5.12KWh
|
|||
|
Module quantity
|
2
|
3
|
4
|
5
|
|
Energy
|
10.24kwh
|
15.36kwh
|
20.48kwh
|
25.6kwh
|
|
Size(mm)
|
630*420*1300
|
630*420*1500
|
630*420*1700
|
630*420*1900
|
|
Weight(kg)
|
205Kg
|
260Kg
|
315Kg
|
370Kg
|
|
Nominal output voltage
|
380V, 3W+N+PE
|
|||
|
Max Continuous Charge and Discharge Current
|
40A
|
|||
|
Max Charge Power
|
10KW
|
|||
|
IP level
|
IP21
|
|||
|
Communication
|
RS485/CAN/WIFI
|
|||
|
Cycle life
|
≥6000 times
|
|||
|
Warranty
|
5 Years
|
|||
|
Supported Certifications
|
CE/RoHS/KC/BIS/MSDS/UN38.3 etc
|
|||
Home solar energy storage systems using high-voltage lithium batteries for energy storage have the following advantages over low-voltage lithium batteries:
1. High energy density: High-voltage lithium batteries can store more electrical energy and provide power for a longer period of time.
2. Higher charge and discharge efficiency: High-voltage lithium batteries with less energy lost during storage and release, improving the overall efficiency of the system.
3. Smaller volume and weight: High-voltage lithium battery provides more flexible installation and layout options for home applications.
4. Longer service life: High-voltage lithium batteries generally have a longer service life, reducing the frequency and cost of battery replacement.
It should be noted that high-voltage lithium batteries also have some potential challenges and considerations. For example, high-voltage lithium batteries have higher requirements for the electrical safety of the system and require stricter protection measures to prevent overcharge, over-discharge, short circuit and other problems. In addition, the cost of high-voltage lithium batteries is usually higher, so when choosing a suitable energy storage system, you need to comprehensively consider factors such as cost, performance, safety, and reliability, and conduct detailed consultation and evaluation with a professional solar system supplier.
