Place of Origin:
Hunan, China
Brand Name:
Joypo or buyer's brand
Certification:
CE,MSDS,UN38.3
Model Number:
JP-GY10-15

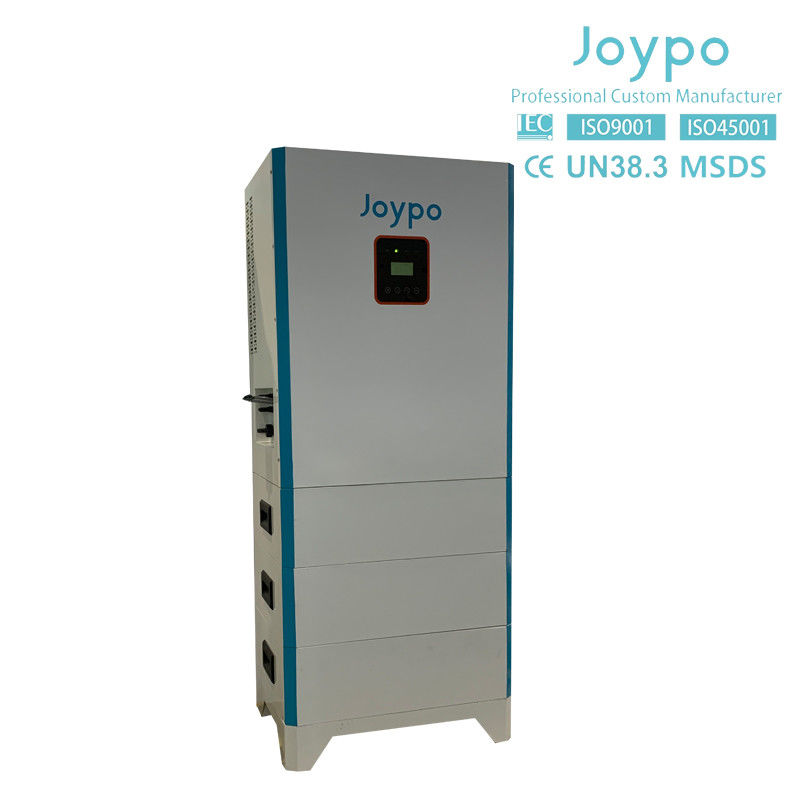

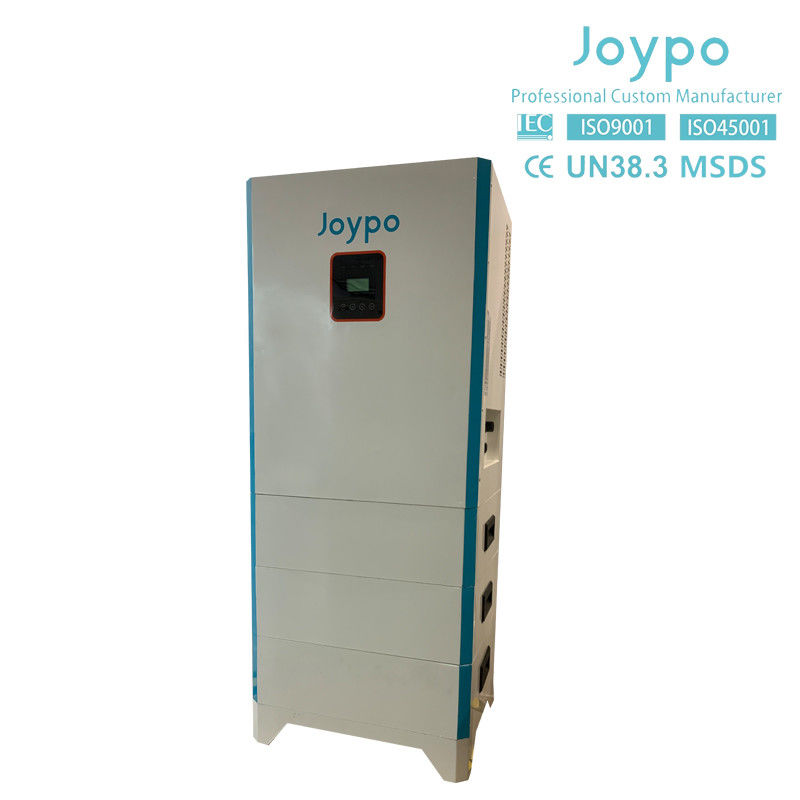

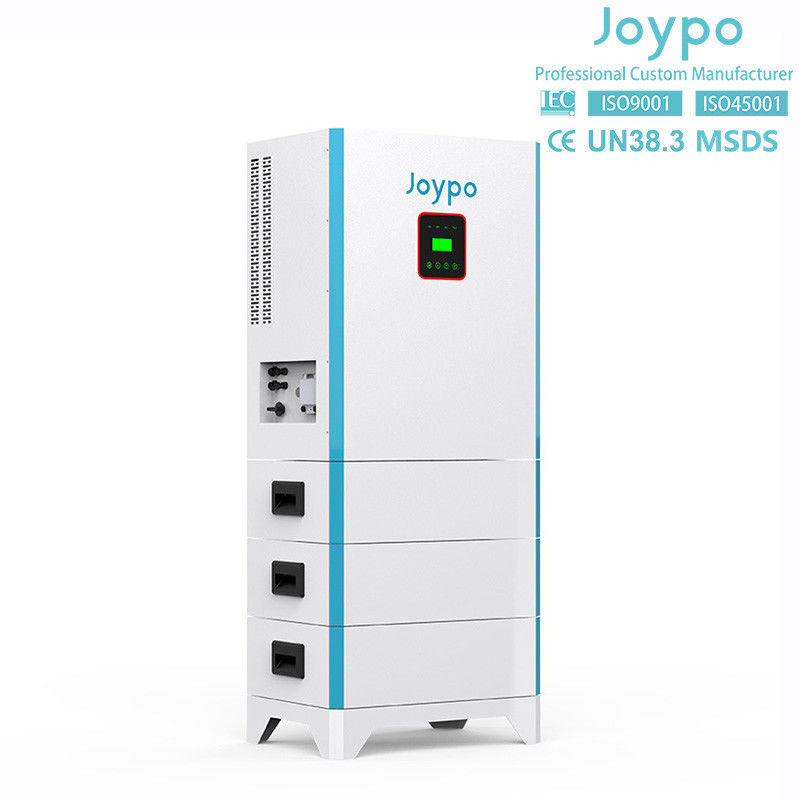

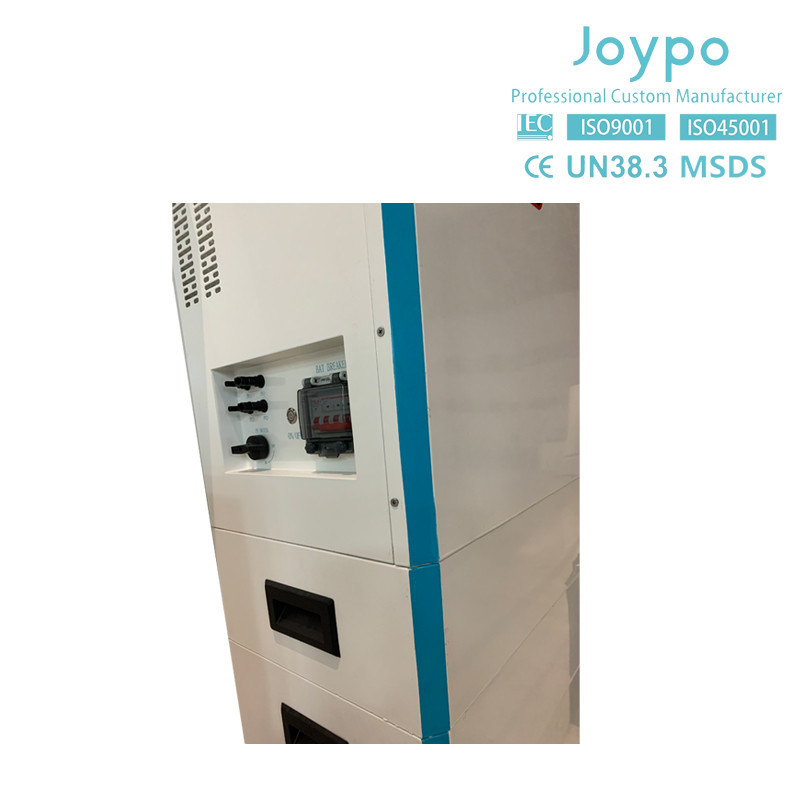

Joypo 10kwh To 30kwh Renewable Energy Storage System For Home Solar Backup
Features:
1. Three phase, hybrid inverter, high voltage battery
2. Flexible capacity options from 5.12 to 30.72kwh
3. Excellent safety of LiFePO4 battery with smart BMS
4. Easy installation with module and stackable design
5. Exceptional lifespan, more than 6000 times cycle life, 5-10 years warranty
6. Support remotely control via APP on your cell phone
Item Name
|
10KW Home Solar Energy Storage System
|
|||
Model No.
|
JP-GY10-10
|
JP-GY10-15
|
JP-GY10-20
|
JP-GY10-25
|
Working Voltage
|
172.8V-233.6V
|
259.2V-350.4V
|
345.6V-467.2V
|
432V-584V
|
Max charge voltage
|
233.6V
|
350.4V
|
467.2V
|
584V
|
Module energy
|
5.12KWh
|
|||
Module quantity
|
2
|
3
|
4
|
5
|
Energy
|
10.24kwh
|
15.36kwh
|
20.48kwh
|
25.6kwh
|
Size(mm)
|
630*420*1300
|
630*420*1500
|
630*420*1700
|
630*420*1900
|
Weight(kg)
|
205Kg
|
260Kg
|
315Kg
|
370Kg
|
Nominal output voltage
|
380V, 3W+N+PE
|
|||
Max Continuous Charge and Discharge Current
|
40A
|
|||
Max Charge Power
|
10KW
|
|||
IP level
|
IP21
|
|||
Communication
|
RS485/CAN/WIFI
|
|||
Cycle life
|
≥6000 times
|
|||
Warranty
|
5 Years
|
|||
Supported Certifications
|
CE/RoHS/KC/BIS/MSDS/UN38.3 etc
|
Why choose Joypo?
* ISO 9001 & 14001 management certified factory
