Place of Origin:
Hunan, China
Brand Name:
JOYPO
Certification:
MSDS,UN38.3,CE
Model Number:
JP-SR5-10S

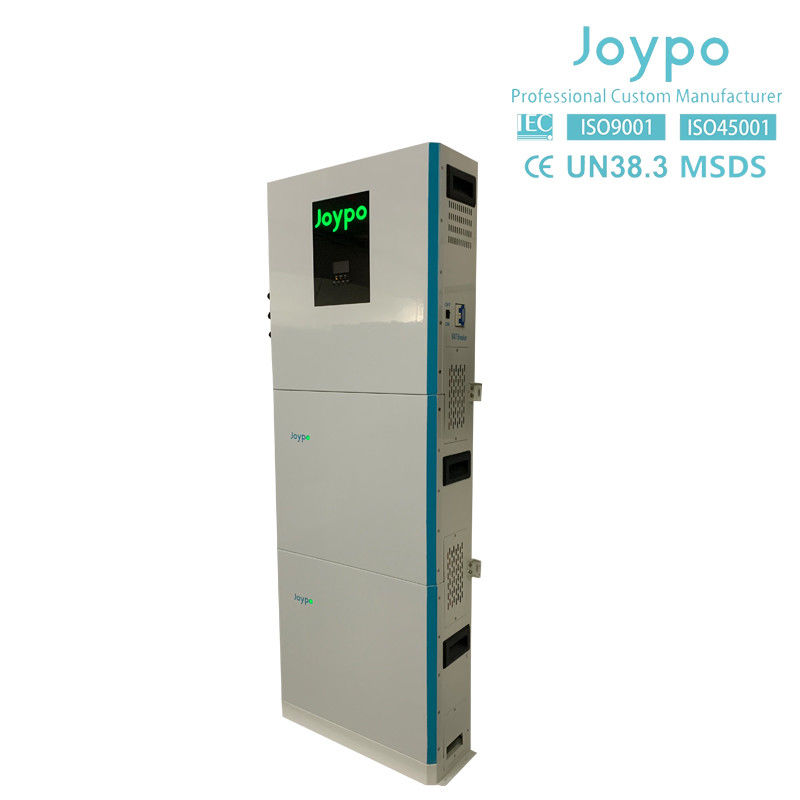

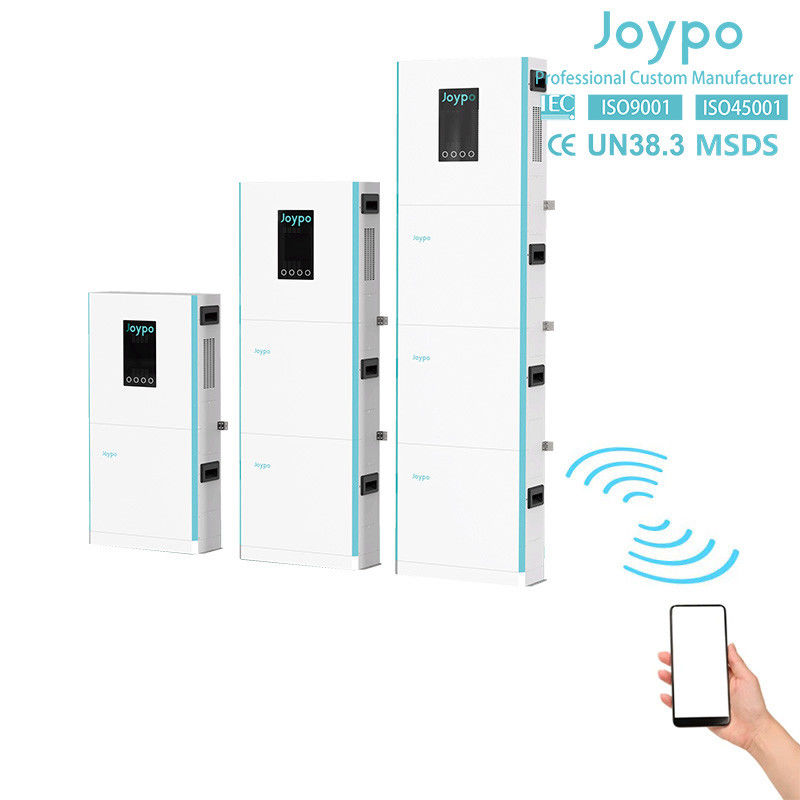

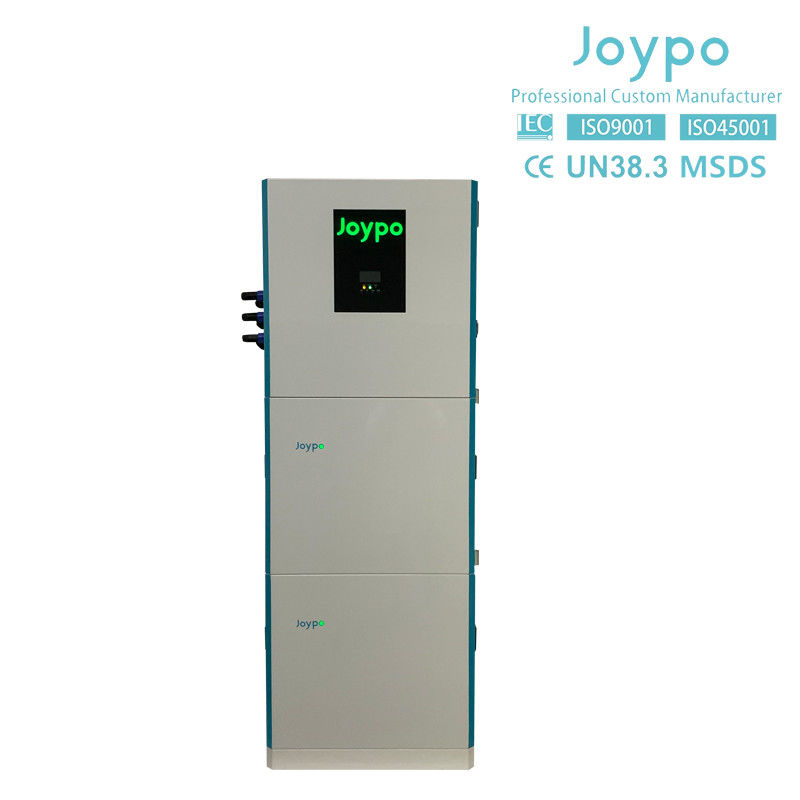

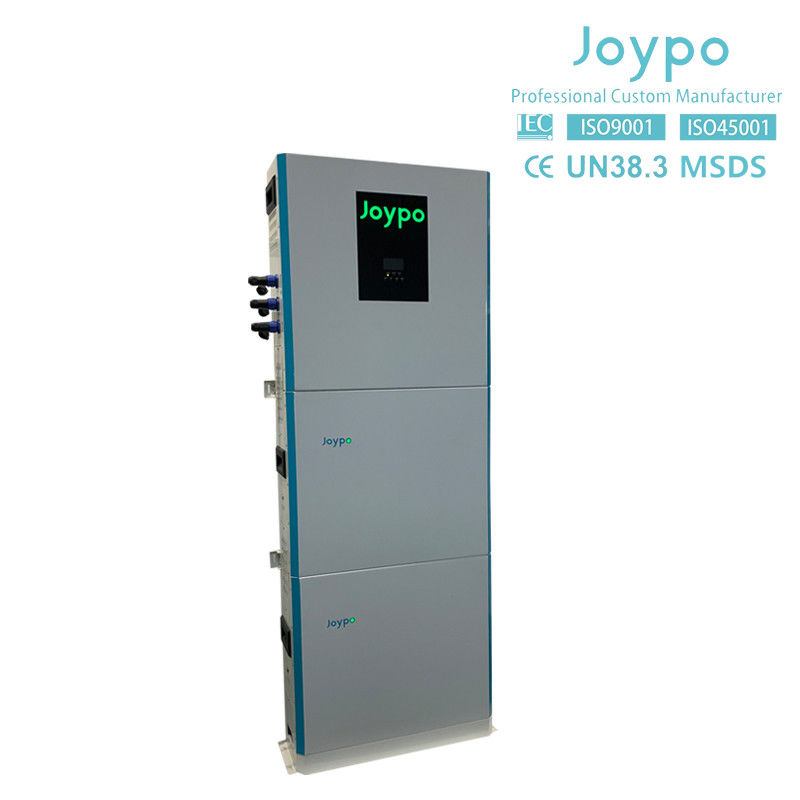

Joypo Home Solar PV Power Storage System With Battery 48V 200Ah And 5KW Inverter
Joypo off-grid home energy storage all-in-one machine is a device that integrates solar power generation, battery energy storage and energy management functions. It has the following features and benefits:
1. Integrated design: The home energy storage all-in-one machine integrates the solar power generation system and the battery energy storage system into one device, simplifying the installation and operation of the system. Users only need to purchase one device to realize the functions of solar power generation and energy storage.
2. Versatility: The household energy storage integrated machine can not only convert solar energy into electrical energy for power supply, but also store excess electrical energy for later use. At the same time, it can also intelligently manage energy use and storage based on the household's energy needs and electricity prices to achieve optimal utilization of energy.
3. Automatic switching and backup power function: When the power grid fails, the home energy storage integrated machine can automatically switch to the backup power mode to provide continuous power supply for the home. This is important in responding to grid failures and providing emergency backup energy.
4. Saving energy costs: Home energy storage integrated machines can help households store electrical energy when electricity prices are low and use the stored electrical energy when electricity prices are high by optimizing energy use and storage, thereby reducing household energy costs.
Energy management and monitoring: Home energy storage integrated machines are usually equipped with energy management systems and monitoring systems that can monitor solar power generation, battery status and energy consumption in real time. Users can remotely monitor and control through mobile applications or network interfaces to conveniently manage and optimize home energy use.
5. Environmentally friendly: By using solar energy to generate and store electrical energy, household energy storage integrated machines reduce dependence on traditional power grids and reduce the use of fossil fuels, thereby reducing greenhouse gas emissions and becoming more environmentally friendly.
Item Name
|
5KW Home Solar Energy Storage System
|
|||
Model No.
|
JP-SR5-5S
|
JP-SR5-10S
|
JP-SR5-15S
|
JP-SR5-20S
|
Nominal output voltage
|
230V
|
|||
Rated output frequency
|
50HZ/60HZ
|
|||
Module energy
|
5.12KWh
|
|||
Module quantity
|
1
|
2
|
3
|
4
|
Energy
|
5.12kwh
|
10.24kwh
|
15.36kwh
|
20.48kwh
|
Size(mm)
|
1160*600*210
|
1660*600*210
|
1660*1200*210
|
1660*1200*210
|
Weight
|
84kg
|
141kg
|
198kg
|
255kg
|
MPPT voltage range
|
125-450V
|
|||
Max bypass overload current
|
40A
|
|||
Max PV Input Power
|
4400W
|
|||
IP level
|
IP21
|
|||
Communication
|
RS485/CAN/WIFI
|
|||
Cycle life
|
≥6000 times
|
|||
Warranty
|
10 Years
|
|||
Supported Certifications
|
CE/RoHS/KC/BIS/MSDS/UN38.3 etc
|
FAQ
1. Can I have a sample order?
Re: Yes, the sample order is welcome here, so you can test the product quality.
2. How long is the lead time?
Re: Sample order takes around 7-20 days, bulk order takes 20-35 days, depending on the order size and production schedule.
3. How long is the warranty for the solar storage system?
Re: 5 years, can be extended for large orders.
4. What products can you supply?
Re: Except for the energy storage system, we can also supply lithium batteries and cells, solar panels, inverters, and brackets.
5. How can you guarantee the quality?
Strict Quality Checks: Multiple rounds of strict quality checks during manufacturing. Each battery is carefully inspected to meet and exceed industry standards.
High-Quality Materials: This includes advanced cell technologies and materials that are proven to deliver superior energy density, longer cycle life, and stable performance.
Customer Feedback: Our customers' satisfaction is a testament to the quality of our batteries. Positive reviews and long-term customer relationships underscore our commitment to delivering on our promises.
Warranty: A long-term warranty not only protects your investment but also reflects our confidence in the durability and performance of our batteries.
We understand the importance of earning your trust, and we are committed to delivering a product that exceeds your expectations. Should you have any further questions or concerns, please feel free to reach out to our customer service team. We look forward to the opportunity to serve you and provide you with reliable, high-quality batteries.
6. What payment terms do you accept?
We accept T/T, 50% for deposit, the balance paid before shipment.
7. How to get the product details?
Please click here to download our product details. Joypo 5kw integrated inverter+battery.pdf
