Place of Origin:
Hunan, China
Brand Name:
JOYPO
Certification:
MSDS,UN38.3,CE
Model Number:
JP024100AP
Video

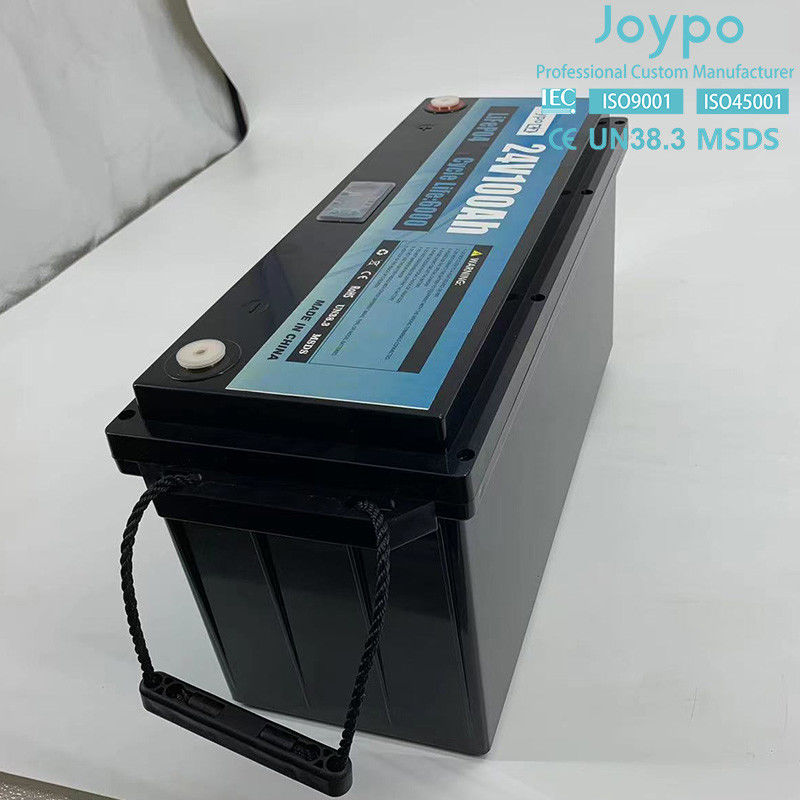

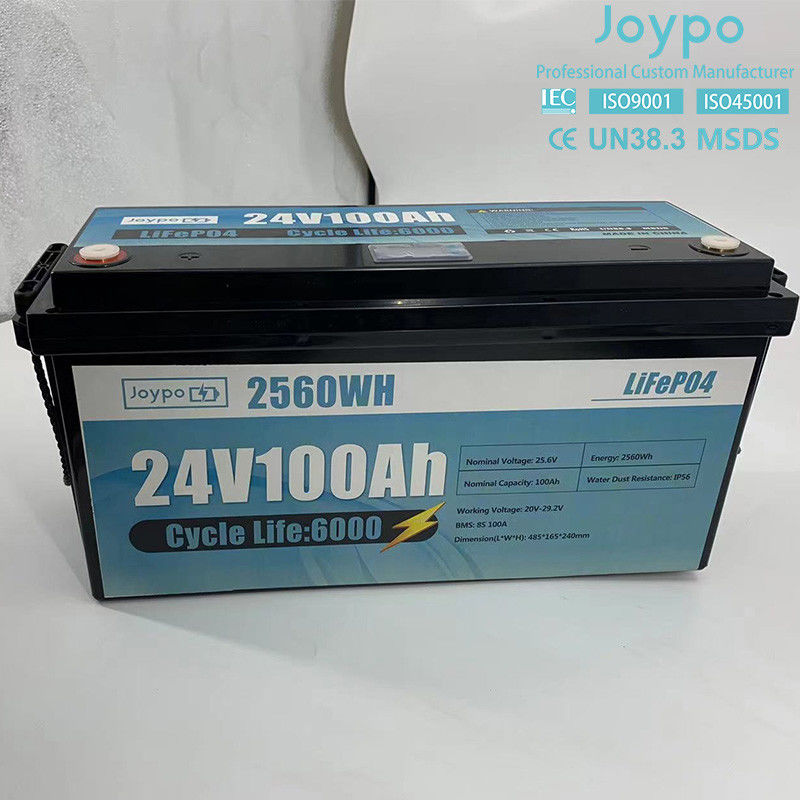

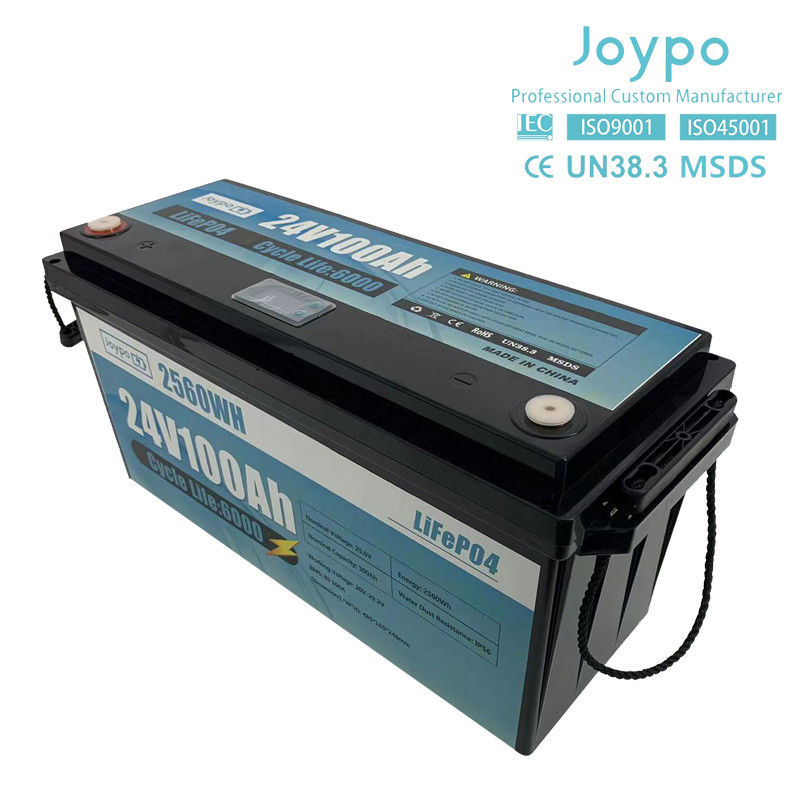

Joypo 100Ah 200Ah Lithium Ion LiFePO4 24 Volt Deep Cycle Batteries For RV Campers
Although traditional RV systems usually use 12V batteries, with the advancement of technology and changes in needs, more and more RV manufacturers and owners are choosing to use 24V lithium batteries.
RVs using 24V lithium batteries can enjoy the following advantages:
Higher energy density: Lithium batteries have higher energy density than traditional lead-acid batteries, providing longer cruising range and larger energy reserves.
Lighter and smaller: Lithium batteries are lighter and smaller than traditional lead-acid batteries, which can reduce the overall weight of the RV and improve carrying capacity and fuel efficiency.
Longer Life and Cycles: Lithium batteries generally have a longer life and more charge and discharge cycles, which means they provide longer lasting use and a longer service life.
Faster charging speed: Lithium batteries have faster charging speed, which can restore energy faster and reduce waiting time.
RVs using 24V lithium batteries require corresponding electrical systems and charging equipment to support them, so system design and adjustments are required before installation. In addition, lithium batteries also require specific management and maintenance to ensure safety and performance.
In short, 24V lithium batteries can provide higher energy reserves, lighter weight and longer service life in RVs, and are suitable for RV users who have higher energy demands and pursue higher performance and portability.
|
Model
|
JP024100AP
|
|
ELECTRICAL SPECIFICATIONS
|
|
|
Cell Type - Chemistry
|
LiFePO4
|
|
Packing model
|
8S1P
|
|
Nominal Capacity
|
100Ah
|
|
Nominal Voltage
|
25.6V
|
|
Energy
|
2560Wh
|
|
MECHANICAL SPECIFICATIONS
|
|
|
Weight
|
Approx. 22kg
|
|
Dimensions (L x W x H)
|
485*165*240mm or customized
|
|
DISCHARGING SPECIFICATIONS
|
|
|
Discharge cut-off voltage
|
20 V
|
|
Peak discharge current
|
200A (duration 2S)
|
|
Rated discharge current
|
100A
|
|
Self-discharge rate
|
≤2% per month(25°C)
|
|
CHARGING SPECIFICATIONS
|
|
|
Charging cut-off voltage
|
29.2V
|
|
Continuous charging current
|
100A
|
|
SAFETY&Quality
|
|
|
Working temperature
|
-20°C-55°C
|
|
Storage temperature
|
0～45°C
|
|
Waterproof level
|
IP65
|
|
Certificate & Safety Standard
|
UL/ROHS/TUV/FCC / CE / MSDS/EN62619 / IEC62040 / UN38.3
|
|
Communication
|
CAN/RS485/DRY CONTACT
|
|
Cycle life
|
6000 times, capacity≥80% @25℃ 0.5C/0.5C |
Why choose Joypo?
* ISO 9001 & 14001 management certified factory
