Place of Origin:
Hunan, China
Brand Name:
JOYPO
Certification:
MSDS,UN38.3,CE
Model Number:
JP024100AP

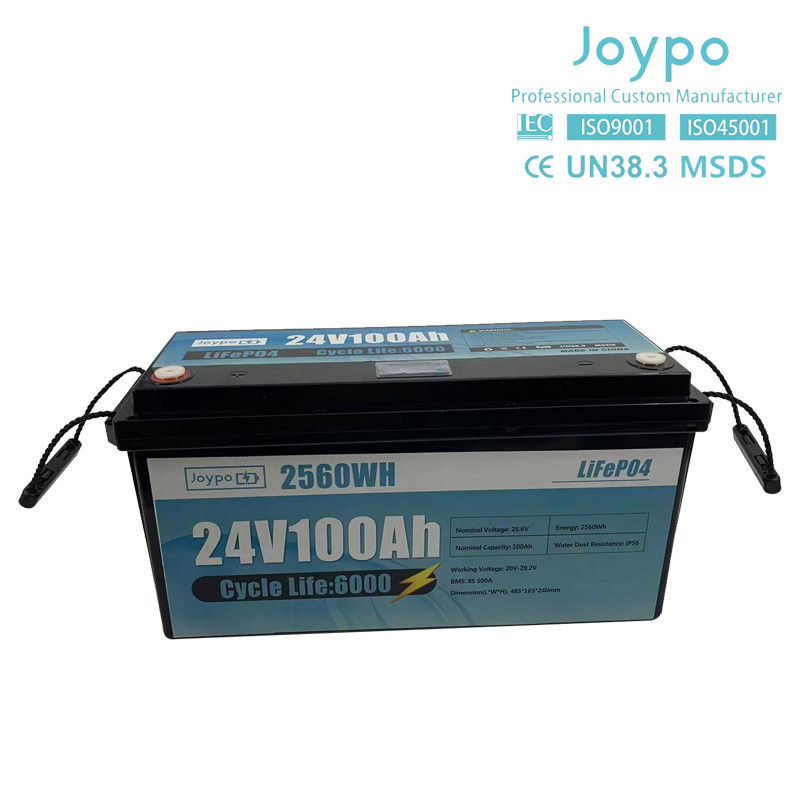

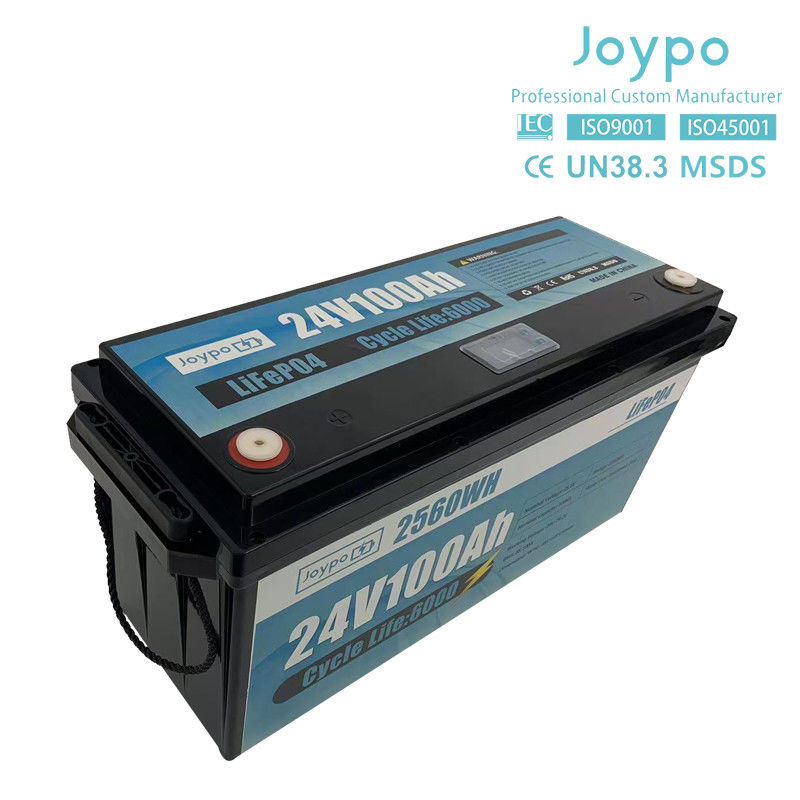

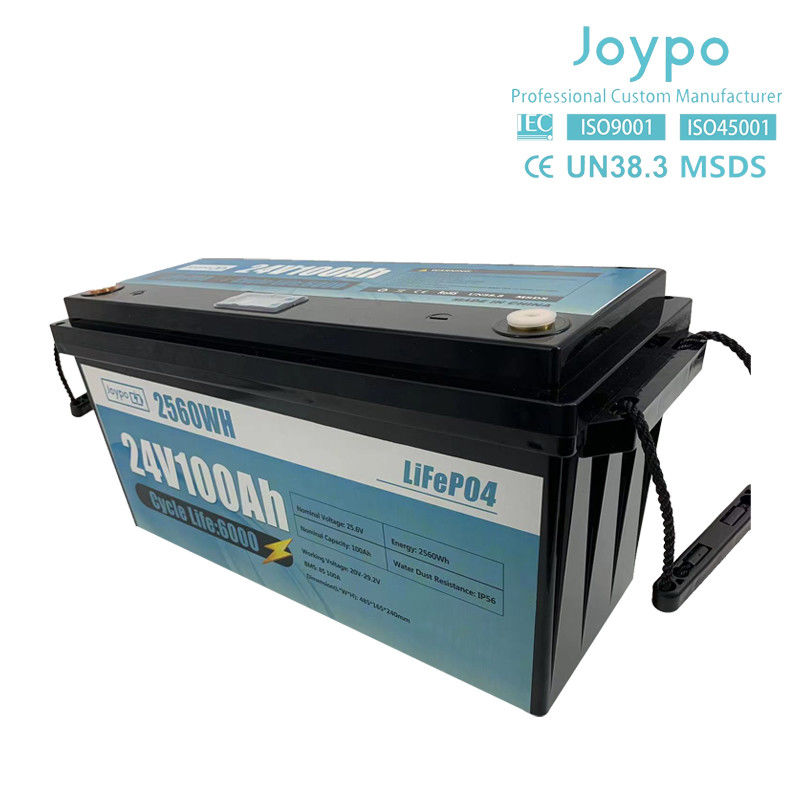

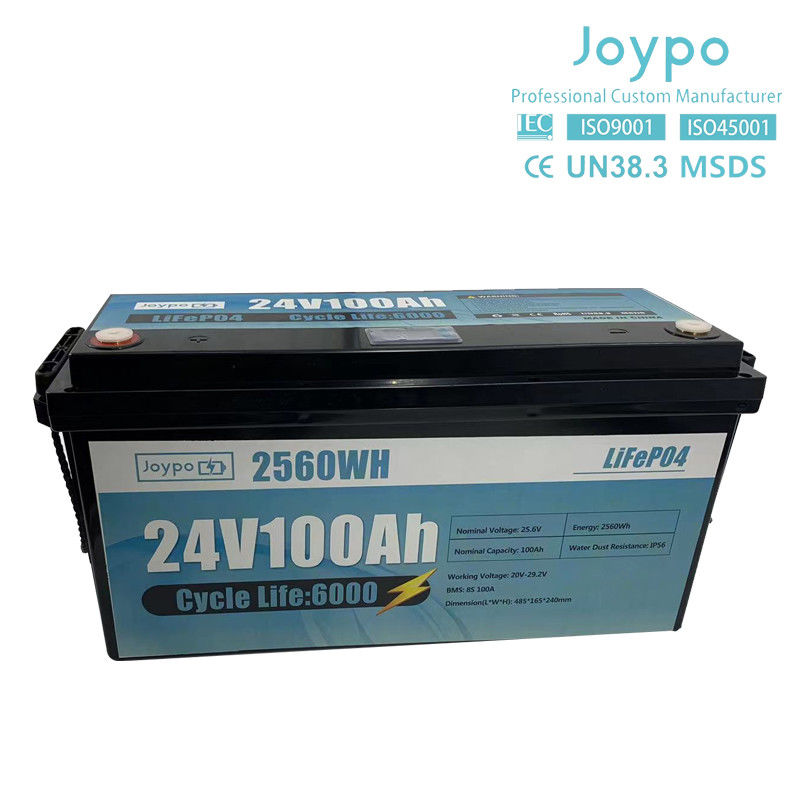

Joypo Best RV Coach LiFePO4 Lithium Battery 24V 100Ah 200Ah 300Ah Deep Cycle
Although traditional RV systems usually use 12V batteries, with the advancement of technology and changes in needs, more and more RV manufacturers and owners are choosing to use 24V lithium batteries.
RVs using 24V lithium batteries can enjoy the following advantages:
Higher energy density: Lithium batteries have higher energy density than traditional lead-acid batteries, providing longer cruising range and larger energy reserves.
Lighter and smaller: Lithium batteries are lighter and smaller than traditional lead-acid batteries, which can reduce the overall weight of the RV and improve carrying capacity and fuel efficiency.
Longer Life and Cycles: Lithium batteries generally have a longer life and more charge and discharge cycles, which means they provide longer lasting use and a longer service life.
Faster charging speed: Lithium batteries have faster charging speed, which can restore energy faster and reduce waiting time.
RVs using 24V lithium batteries require corresponding electrical systems and charging equipment to support them, so system design and adjustments are required before installation. In addition, lithium batteries also require specific management and maintenance to ensure safety and performance.
In short, 24V lithium batteries can provide higher energy reserves, lighter weight and longer service life in RVs, and are suitable for RV users who have higher energy demands and pursue higher performance and portability.
Model
|
JP024100AP
|
ELECTRICAL SPECIFICATIONS
|
|
Cell Type - Chemistry
|
LiFePO4
|
Packing model
|
8S1P
|
Nominal Capacity
|
100Ah
|
Nominal Voltage
|
25.6V
|
Energy
|
2560Wh
|
MECHANICAL SPECIFICATIONS
|
|
Weight
|
Approx. 22kg
|
Dimensions (L x W x H)
|
485*165*240mm or customized
|
DISCHARGING SPECIFICATIONS
|
|
Discharge cut-off voltage
|
20 V
|
Peak discharge current
|
200A (duration 2S)
|
Rated discharge current
|
100A
|
Self-discharge rate
|
≤2% per month(25°C)
|
CHARGING SPECIFICATIONS
|
|
Charging cut-off voltage
|
29.2V
|
Continuous charging current
|
100A
|
SAFETY&Quality
|
|
Working temperature
|
-20°C-55°C
|
Storage temperature
|
0~45°C
|
Waterproof level
|
IP65
|
Certificate & Safety Standard
|
UL/ROHS/TUV/FCC / CE / MSDS/EN62619 / IEC62040 / UN38.3
|
Communication
|
CAN/RS485/DRY CONTACT
|
Cycle life
|
6000 times, capacity≥80% @25℃ 0.5C/0.5C |
FAQ:
1. Can I have a sample order?
Re: Yes, the sample order is welcome here, so you can test the product quality.
2. How long is the lead time?
Re: Sample order takes around 7-20 days, bulk order takes 20-35 days, depending on the order size and production schedule.
3. How long is the battery warranty?
Re: 2 years, can be extended for large orders.
4. Can you supply the charger for the battery?
Re: Yes, if you need the charger, please tell us before ordering, for the charger cost is not included in the battery price.
5. What products can you supply?
Re: Except for the lithium batteries and cells, we can also supply the all-in-one solar power system, solar panels, inverter, and brackets.
6. How can you guarantee the quality?
Strict Quality Checks: Multiple rounds of strict quality checks during manufacturing. Each battery is carefully inspected to meet and exceed industry standards.
High-Quality Materials: This includes advanced cell technologies and materials that are proven to deliver superior energy density, longer cycle life, and stable performance.
Customer Feedback: Our customers' satisfaction is a testament to the quality of our batteries. Positive reviews and long-term customer relationships underscore our commitment to delivering on our promises.
Warranty: A long-term warranty not only protects your investment but also reflects our confidence in the durability and performance of our batteries.
We understand the importance of earning your trust, and we are committed to delivering a product that exceeds your expectations. Should you have any further questions or concerns, please feel free to reach out to our customer service team. We look forward to the opportunity to serve you and provide you with reliable, high-quality batteries.
