Place of Origin:
Hunan, China
Brand Name:
JOYPO
Certification:
MSDS,UN38.3,CE,etc
Model Number:
JP012200AP

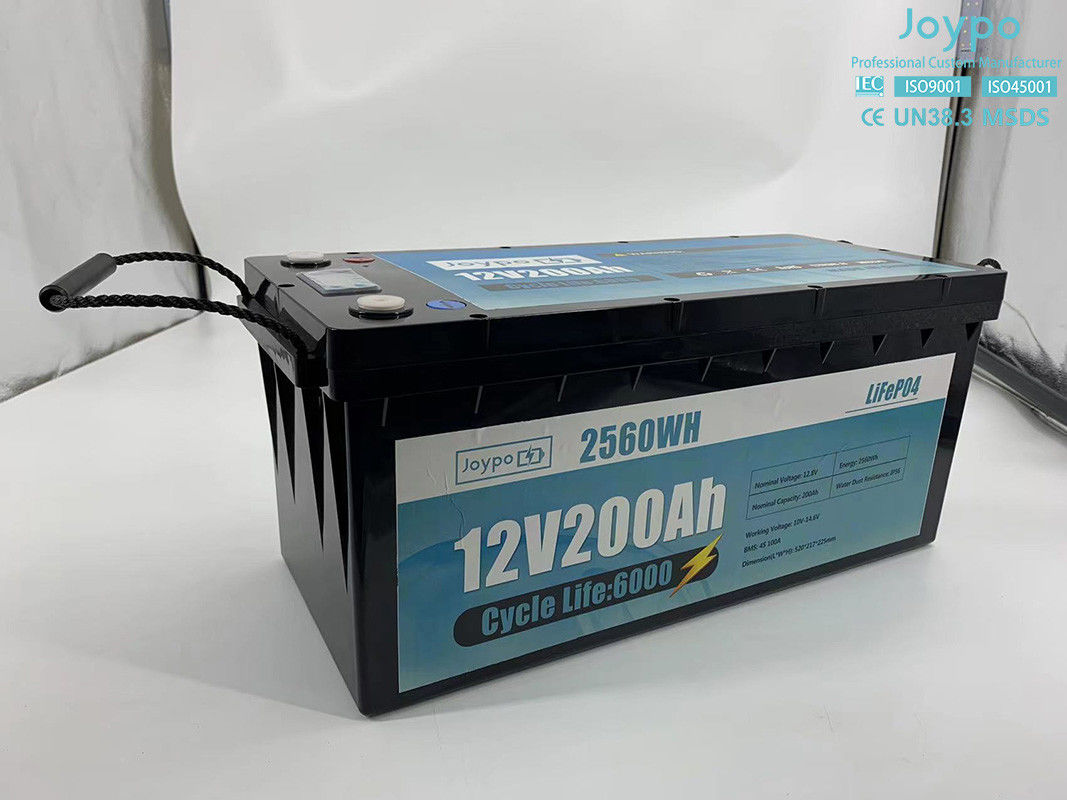

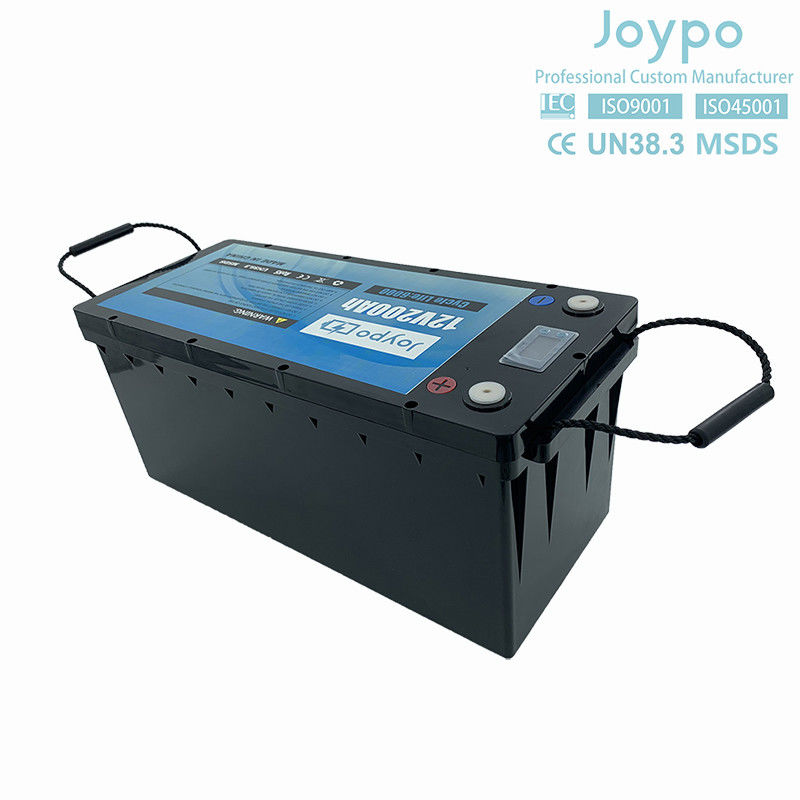

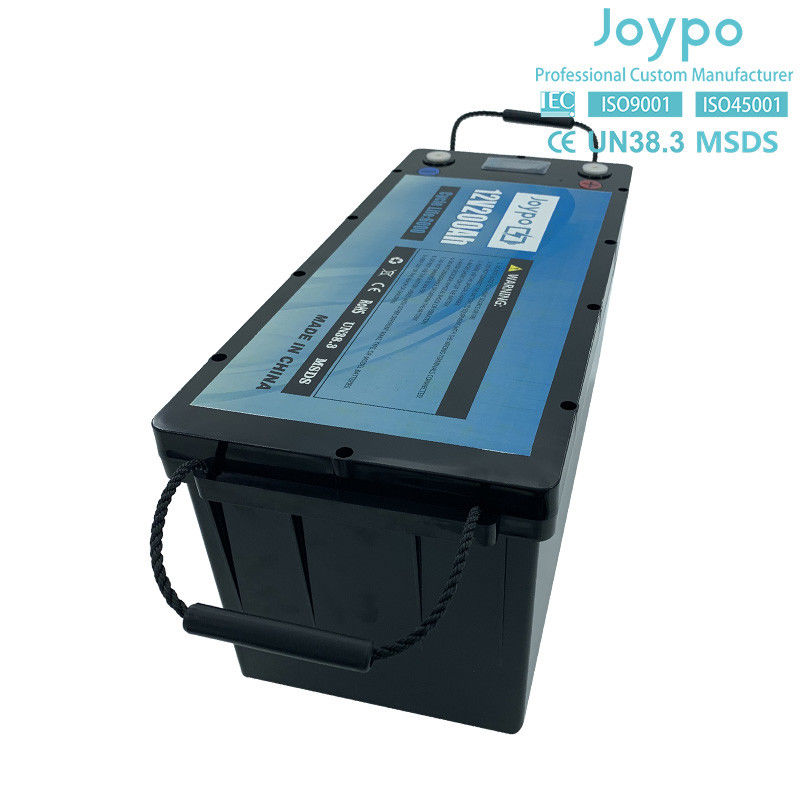

High Energy 12V LiFePO4 Battery Pack 100Ah 200Ah 300Ah For Solar RV
12V lithium iron phosphate battery can be used in multiple scenarios. The following are some common application scenarios:
1. Solar energy storage system: Lithium iron phosphate battery is one of the commonly used battery types in solar energy storage systems. They can store solar power and supply it when needed, enabling a sustainable supply of electricity for domestic, commercial or industrial uses.
2. Camping and RVing: 12V lithium iron phosphate battery is suitable for camping and RVing activities. They can power your camper, RV or tent, supporting lighting, electrical equipment, refrigerators, air conditioning and more.
3. Boats and Yachts: Lithium iron phosphate batteries are widely used in the power systems of boats and yachts. 12V batteries can power electric boats and support various equipment and systems on board.
4. Emergency backup power supply: 12V lithium iron phosphate battery can be used as an emergency backup power supply to provide reliable power supply for homes, offices, medical facilities, communication equipment, etc. in case of emergency.
5. Solar street light system: Lithium iron phosphate batteries are widely used in solar street light systems. They store solar energy collected during the day and provide lighting at night.
6. Electric vehicles: Although the battery voltage of 12V is low for most electric vehicles, lithium iron phosphate batteries can be used as auxiliary power sources to provide stable power for the vehicle's electronic equipment and auxiliary systems.
Please note that the specific application scenario depends on the battery capacity, power requirements and system design. When selecting and applying a 12V lithium iron phosphate battery, it is recommended to conduct further consultation with a professional or manufacturer to ensure that it is suitable for specific application needs.
Model
|
JP012200AP
|
ELECTRICAL SPECIFICATIONS
|
|
Cell Type - Chemistry
|
LiFePO4
|
Packing model
|
4S2P
|
Nominal Capacity
|
200Ah
|
Nominal Voltage
|
12.8V
|
Energy
|
2560Wh
|
MECHANICAL SPECIFICATIONS
|
|
Weight
|
Approx. 22kg
|
Dimensions (L x W x H)
|
520*217*225mm or customized
|
DISCHARGING SPECIFICATIONS
|
|
Discharge cut-off voltage
|
10 V
|
Peak discharge current
|
300A (duration 2S)
|
Rated discharge current
|
100A
|
Self-discharge rate
|
≤2% per month(25°C)
|
CHARGING SPECIFICATIONS
|
|
Charging cut-off voltage
|
14.6V
|
Continuous charging current
|
100A
|
SAFETY&Quality
|
|
Working temperature
|
-20°C-55°C
|
Storage temperature
|
0~45°C
|
Waterproof level
|
IP65
|
Certificate & Safety Standard
|
UL/ROHS/TUV/FCC / CE / MSDS/EN62619 / IEC62040 / UN38.3
|
Communication
|
CAN/RS485/DRY CONTACT
|
Cycle life
|
6000 times
|
FAQ:
1. Can I have a sample order?
Re: Yes, the sample order is welcome here, so you can test the product quality.
2. How long is the lead time?
Re: Sample order takes around 7-20 days, bulk order takes 20-35 days, depending on the order size and production schedule.
3. How long is the battery warranty?
Re: 2 years, can be extended for large orders.
4. Can you supply the charger for the battery?
Re: Yes, if you need the charger, please tell us before ordering, for the charger cost is not included in the battery price.
5. What products can you supply?
Re: Except for the lithium batteries and cells, we can also supply the all-in-one solar power system, solar panels, inverter, and brackets.
6. How can you guarantee the quality?
Strict Quality Checks: Multiple rounds of strict quality checks during manufacturing. Each battery is carefully inspected to meet and exceed industry standards.
High-Quality Materials: This includes advanced cell technologies and materials that are proven to deliver superior energy density, longer cycle life, and stable performance.
Customer Feedback: Our customers' satisfaction is a testament to the quality of our batteries. Positive reviews and long-term customer relationships underscore our commitment to delivering on our promises.
Warranty: A long-term warranty not only protects your investment but also reflects our confidence in the durability and performance of our batteries.
We understand the importance of earning your trust, and we are committed to delivering a product that exceeds your expectations. Should you have any further questions or concerns, please feel free to reach out to our customer service team. We look forward to the opportunity to serve you and provide you with reliable, high-quality batteries.
