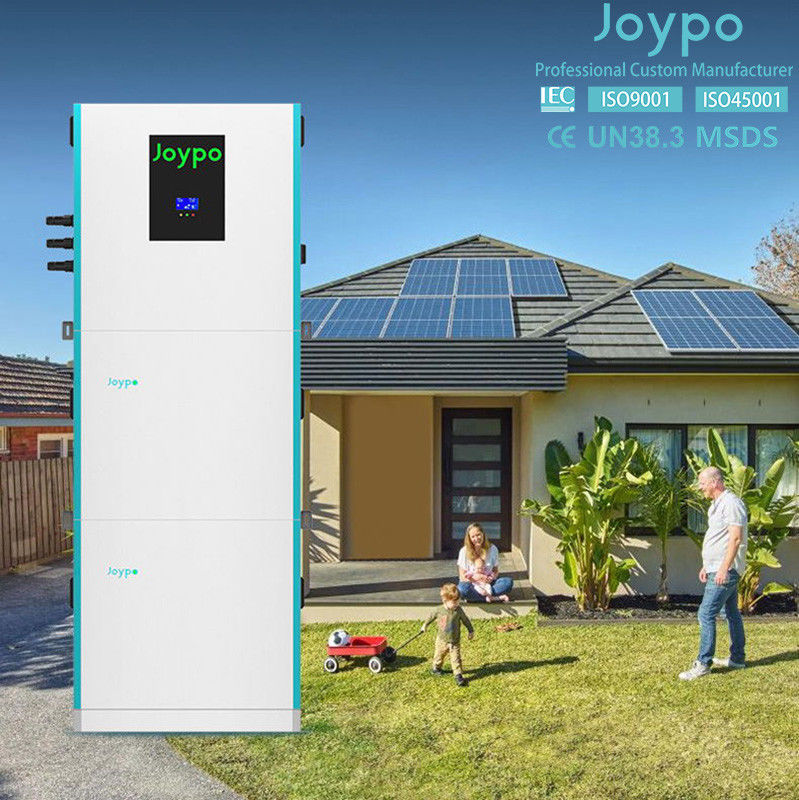

10KWH Lithium Battery Solar Energy Storage System Home Off Grid Power Storage Systems

10KWH Lithium Battery Solar Energy Storage System Home Off Grid Power Storage Systems

Lithium Battery Solar Energy Storage System

Off Grid Solar Energy Storage System

10KWH Off Grid Power Storage Systems

Place of Origin:

Hunan, China

Brand Name:

JOYPO

Certification:

MSDS,UN38.3,CE

Model Number:

JP-SR5-10S

Contact Us
Request A Quote
Product Details
Product Name:
Single Phase Off-grid Solar Storage System
Power Capacity:
5KW
Voltage:
51.2V
Capacity:
100/200/300/400Ah
Battery Storage Energy:
5kwh,10kwh,15kwh,20kwh
Max PV Input Power:
4400W
Rated Output Voltage:
220/230V Or 110V
Rated Output Frequency:
50HZ/60HZ
Number Of Cells:
16, 32, 48, 60
Certificates:
CE, MSDS, UN38.8
Single Module:
51.2V 100Ah
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$999-4999/piece
Packaging Details
Carton or Wooden Carton
Delivery Time
7-20 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 pieces per month
Product Description

Joypo 5KW Off-Grid Inverter With 10KWH Lithium Battery Solar Energy Storage System For Home





Features:

1. Pure sine wave.

2. Two output modes: mains bypass and inverter output, and has the function of uninterrupted power supply.

3. Four optional charging modes: solar only, mains priority, solar priority, and hybrid charging.

4. Advanced MPPT technology, the efficiency is as high as 99.9%.

5. Wide MPPT voltage range.

6. It has the function of activating the lithium battery with solar energy and AC mains, and supports the access of lead-acid batteries and lithium batteries.

7. LCD screen design, 3 LED indicators, dynamic display of system data, and operating status.

8. The ON/OFF rocker switch controls the AC output.

9. With the power saving mode function, reduce no-load loss.

10. Adopt two intelligent adjustable speed fans to efficiently dissipate heat and prolong the life of the system.

11. With multiple protection functions, 360° all-around protection.

12. It has completed short-circuit protection, over-under-voltage protection, overload protection, back-irrigation protection, etc.



Item Name
5KW Home Solar Energy Storage System
Model No.
JP-SR5-5S
JP-SR5-10S
JP-SR5-15S
JP-SR5-20S
Nominal output voltage
230V
Rated output frequency
50HZ/60HZ
Module energy
5.12KWh
Module quantity
1
2
3
4
Energy
5.12kwh
10.24kwh
15.36kwh
20.48kwh
Size(mm)
1160*600*210
1660*600*210
1660*1200*210
1660*1200*210
Weight
84kg
141kg
198kg
255kg
MPPT voltage range
125-450V
Max bypass overload current
40A
Max PV Input Power
4400W
IP level
IP21
Communication
RS485/CAN/WIFI
Cycle life
≥6000 times
Warranty
10 Years
Supported Certifications
CE/RoHS/KC/BIS/MSDS/UN38.3 etc

10KWH Lithium Battery Solar Energy Storage System Home Off Grid Power Storage Systems 0



FAQ



1. Can I have a sample order?
Re: Yes, the sample order is welcome here, so you can test the product quality.



2. How long is the lead time?
Re: Sample order takes around 7-20 days, bulk order takes 20-35 days, depending on the order size and production schedule.



3. How long is the warranty for the solar storage system?
Re: 5 years, can be extended for large orders.



4. What products can you supply?
Re: Except for the energy storage system, we can also supply lithium batteries and cells, solar panels, inverters, and brackets.



5. How can you guarantee the quality?
Strict Quality Checks: Multiple rounds of strict quality checks during manufacturing. Each battery is carefully inspected to meet and exceed industry standards.

High-Quality Materials: This includes advanced cell technologies and materials that are proven to deliver superior energy density, longer cycle life, and stable performance.

Customer Feedback: Our customers' satisfaction is a testament to the quality of our batteries. Positive reviews and long-term customer relationships underscore our commitment to delivering on our promises.

Warranty: A long-term warranty not only protects your investment but also reflects our confidence in the durability and performance of our batteries.

We understand the importance of earning your trust, and we are committed to delivering a product that exceeds your expectations. Should you have any further questions or concerns, please feel free to reach out to our customer service team. We look forward to the opportunity to serve you and provide you with reliable, high-quality batteries.



6. What payment terms do you accept?
We accept T/T, 50% for deposit, the balance paid before shipment.



7. How to get the product details?

Please click here to download our product details. Joypo 5kw integrated inverter+battery.pdf
