Place of Origin:
Hunan, China
Brand Name:
JOYPO
Certification:
MSDS,UN38.3,CE,etc
Model Number:
JP024200AP

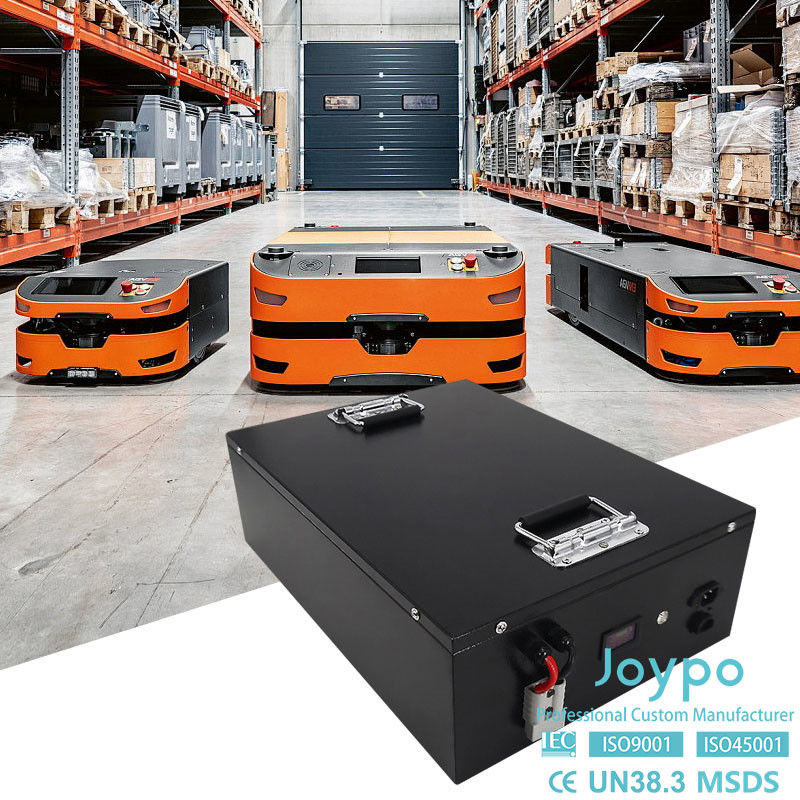

Joypo Tailored LFP 24V 200Ah Lithium Battery For AGVs AMRs Mobile Robots
Lithium batteries used in Automated Guided Vehicles (AGVs) offer several advantages over traditional battery technologies:
High Energy Density: Lithium batteries have a higher energy density compared to lead-acid batteries, which means they can store more energy in a lighter and more compact package. This is crucial for AGVs where space and weight considerations are important.
Longer Lifespan: Lithium batteries typically have a longer lifespan and can withstand a higher number of charge-discharge cycles compared to lead-acid batteries. This results in reduced maintenance requirements and longer operational life for AGVs.
Fast Charging: Lithium batteries can be charged quickly, allowing for shorter downtime during recharging cycles. This is particularly beneficial for AGVs that need to operate continuously or have tight schedules.
Maintenance-Free: Lithium batteries are virtually maintenance-free compared to lead-acid batteries, which require regular maintenance such as topping up with water and equalizing charges. This reduces the overall operational costs and downtime of AGVs.
Lightweight: Lithium batteries are lighter than lead-acid batteries, which can contribute to improved efficiency and reduced energy consumption for AGVs. The lighter weight also helps in increasing the payload capacity of the AGVs.
High Efficiency: Lithium batteries have a higher charge/discharge efficiency compared to lead-acid batteries, which means more of the stored energy is effectively utilized. This can lead to improved overall performance and energy savings for AGVs.
Environmentally Friendly: Lithium batteries are considered more environmentally friendly than lead-acid batteries as they do not contain toxic materials like lead and acid. Additionally, lithium batteries are recyclable, further reducing their environmental impact.
Overall, the advantages of using lithium batteries in AGVs include higher energy density, longer lifespan, faster charging, lower maintenance requirements, lightweight design, high efficiency, and environmental friendliness, making them a preferred choice for powering Automated Guided Vehicles.
Model |
JP02450AP |
JP024100AP |
JP024200AP |
ELECTRICAL SPECIFICATIONS |
|
|
|
Cell Type - Chemistry |
LiFePO4 |
LiFePO4 |
LiFePO4 |
Packing model |
8S1P |
8S1P |
8S2P |
Nominal Capacity |
50Ah |
100Ah |
200Ah |
Nominal Voltage |
25.6V |
25.6V |
25.6V |
Energy |
1280Wh |
2560Wh |
5120Wh |
MECHANICAL SPECIFICATIONS |
|
|
|
Weight |
Approx. 11kg(24lb) |
Approx. 22kg(48.5lb) |
Approx. 45kg(99lb) |
Dimensions (L x W x H) |
330*172*215mm |
485*165*240mm or customized |
customized |
DISCHARGING SPECIFICATIONS |
|
|
|
Discharge cut-off voltage |
20 V |
20 V |
20 V |
Peak discharge current |
100A (duration 2S) |
200A (duration 2S) |
300A (duration 2S) |
Rated discharge current |
50A |
100A |
100A |
Self-discharge rate |
≤2% per month(25°C) |
≤2% per month(25°C) |
≤2% per month(25°C) |
CHARGING SPECIFICATIONS |
|
|
|
Charging cut-off voltage |
29.2V |
29.2V |
29.2V |
Continuous charging current |
25A |
50A |
100A |
SAFETY&Quality |
|
|
|
Working temperature |
-20°C-55°C |
-20°C-55°C |
-20°C-55°C |
Storage temperature |
0~45°C |
0~45°C |
0~45°C |
Waterproof level |
IP65 |
IP65 |
IP65 |
Certificate & Safety Standard |
UL/ROHS/TUV/FCC / CE / MSDS/EN62619 / IEC62040 / UN38.3 |
||
Communication |
CAN/RS485/DRY CONTACT |
||
Cycle life |
6000 times, capacity≥80% @25℃ 0.5C/0.5C |
Why choose Joypo AGV batteries?
Unmatched Efficiency: Elevate your AGV's performance with Joypo batteries, delivering unmatched efficiency and power for seamless operations.
Extended Battery Life: Experience prolonged battery life with Joypo, ensuring your AGV stays powered for longer durations without compromising on performance.
Rapid Charging Technology: Joypo batteries feature cutting-edge rapid charging technology, minimizing downtime and maximizing productivity for your AGV fleet.
Reliable Power Supply: Trust in the reliable power supply of Joypo batteries, providing consistent energy to keep your AGVs running smoothly round the clock.
Optimized Energy Density: Maximize space and weight efficiency with Joypo batteries' optimized energy density, enhancing your AGV's payload capacity and operational flexibility.
Low Maintenance Requirements: Enjoy hassle-free operations with Joypo batteries' low maintenance design, reducing upkeep costs and ensuring uninterrupted AGV performance.
Intelligent Battery Management: Benefit from Joypo batteries' intelligent battery management system, optimizing energy usage and enhancing overall AGV efficiency.
Environmentally Conscious: Choose Joypo batteries for an environmentally conscious power solution, promoting sustainability and reducing your AGV fleet's carbon footprint.
Enhanced Safety Features: Prioritize safety with Joypo batteries' enhanced safety features, ensuring secure and reliable power supply for your AGVs in all operating conditions.
Trusted Performance: Rely on Joypo batteries for trusted performance and superior quality, setting a new standard for AGV power solutions in the industry.
