24V AGV Lithium Battery Fast Charging For Mobile Robots Autonomous Vehicles

24V AGV Lithium Battery Fast Charging For Mobile Robots Autonomous Vehicles

24V AGV Lithium Battery

AGV Lithium Battery Fast Charging

Place of Origin:

Hunan, China

Brand Name:

JOYPO

Certification:

MSDS,UN38.3,CE,etc

Model Number:

JP024100AP

Contact Us
Request A Quote
Product Details
Features:
With Smart BMS / Auto Balance Function / LED Indicator / High Discharge / Fast Charge / Light Weight / Deep Cycle, And CAN RS485 Communication / Bluetooth Optional
Product Name:
24V 100Ah Fast Charging Long Cycle Life LiFePO4 Battery Pack For AGV AMR
Nominal Capacity:
50ah/100ah/200ah/300ah/400ah Or Customized
Battery Type:
Reliable AGV Lithium Iron Phosphate Battery
Usage:
Marine,RV,Solar System Etc,AGV/UPS/Robot/Solar Energy System,Camper
Cycle Life:
2000 Times
Dimension:
485*165*240mm
Weight:
About 22kg/48.5lb
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$99-999/piece
Packaging Details
Carton or Wooden Carton
Delivery Time
7-20 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
20000 pieces per month
Product Description

Joypo Fast Charge 24V Lithium Batteries For Mobile Robots Autonomous Vehicles





Lithium batteries used in Automated Guided Vehicles (AGVs) offer several advantages over traditional battery technologies:

High Energy Density: Lithium batteries have a higher energy density compared to lead-acid batteries, which means they can store more energy in a lighter and more compact package. This is crucial for AGVs where space and weight considerations are important.

Longer Lifespan: Lithium batteries typically have a longer lifespan and can withstand a higher number of charge-discharge cycles compared to lead-acid batteries. This results in reduced maintenance requirements and longer operational life for AGVs.

Fast Charging: Lithium batteries can be charged quickly, allowing for shorter downtime during recharging cycles. This is particularly beneficial for AGVs that need to operate continuously or have tight schedules.

Maintenance-Free: Lithium batteries are virtually maintenance-free compared to lead-acid batteries, which require regular maintenance such as topping up with water and equalizing charges. This reduces the overall operational costs and downtime of AGVs.

Lightweight: Lithium batteries are lighter than lead-acid batteries, which can contribute to improved efficiency and reduced energy consumption for AGVs. The lighter weight also helps in increasing the payload capacity of the AGVs.

High Efficiency: Lithium batteries have a higher charge/discharge efficiency compared to lead-acid batteries, which means more of the stored energy is effectively utilized. This can lead to improved overall performance and energy savings for AGVs.

Environmentally Friendly: Lithium batteries are considered more environmentally friendly than lead-acid batteries as they do not contain toxic materials like lead and acid. Additionally, lithium batteries are recyclable, further reducing their environmental impact.

Overall, the advantages of using lithium batteries in AGVs include higher energy density, longer lifespan, faster charging, lower maintenance requirements, lightweight design, high efficiency, and environmental friendliness, making them a preferred choice for powering Automated Guided Vehicles.



Model

JP02450AP

JP024100AP

JP024200AP

ELECTRICAL SPECIFICATIONS







Cell Type - Chemistry

LiFePO4

LiFePO4

LiFePO4

Packing model

8S1P

8S1P

8S2P

Nominal Capacity

50Ah

100Ah

200Ah

Nominal Voltage

25.6V

25.6V

25.6V

Energy

1280Wh

2560Wh

5120Wh

MECHANICAL SPECIFICATIONS







Weight

Approx. 11kg(24lb)

Approx. 22kg(48.5lb)

Approx. 45kg(99lb)

Dimensions (L x W x H)

330*172*215mm

485*165*240mm or customized

customized

DISCHARGING SPECIFICATIONS







Discharge cut-off voltage

20 V

20 V

20 V

Peak discharge current

100A (duration 2S)

200A (duration 2S)

300A (duration 2S)

Rated discharge current

50A

100A

100A

Self-discharge rate

≤2% per month(25°C)

≤2% per month(25°C)

≤2% per month(25°C)

CHARGING SPECIFICATIONS







Charging cut-off voltage

29.2V

29.2V

29.2V

Continuous charging current

25A

50A

100A

SAFETY&Quality







Working temperature

-20°C-55°C

-20°C-55°C

-20°C-55°C

Storage temperature

0~45°C

0~45°C

0~45°C

Waterproof level

IP65

IP65

IP65

Certificate & Safety Standard

UL/ROHS/TUV/FCC / CE / MSDS/EN62619 / IEC62040 / UN38.3

Communication

CAN/RS485/DRY CONTACT

Cycle life

6000 times, capacity≥80% @25℃ 0.5C/0.5C

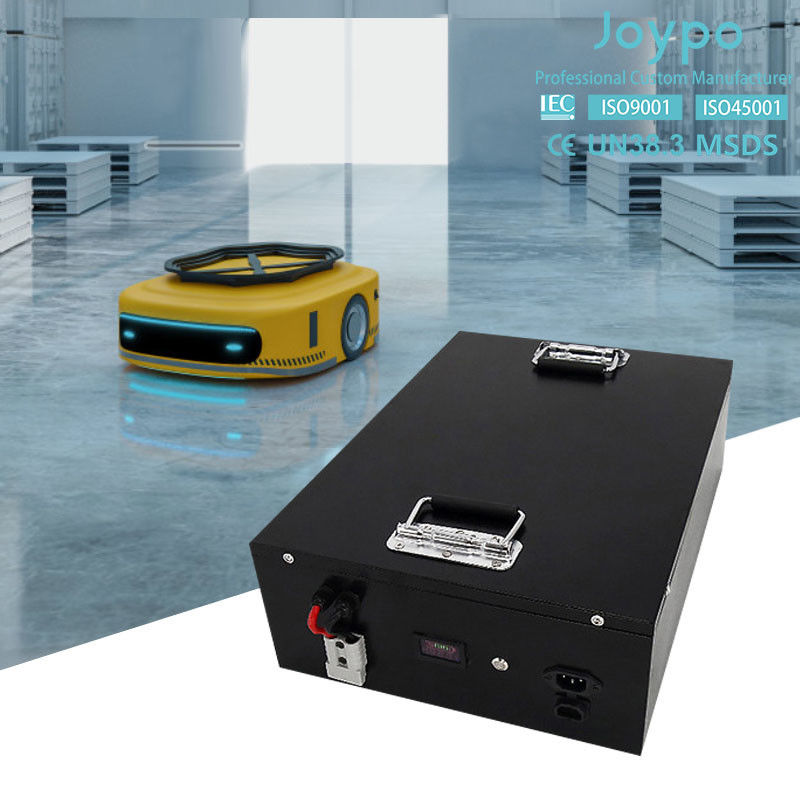

24V AGV Lithium Battery Fast Charging For Mobile Robots Autonomous Vehicles 0
