Place of Origin:
Hunan, China
Brand Name:
JOYPO
Certification:
MSDS,UN38.3,CE,etc
Model Number:
JP024100AP

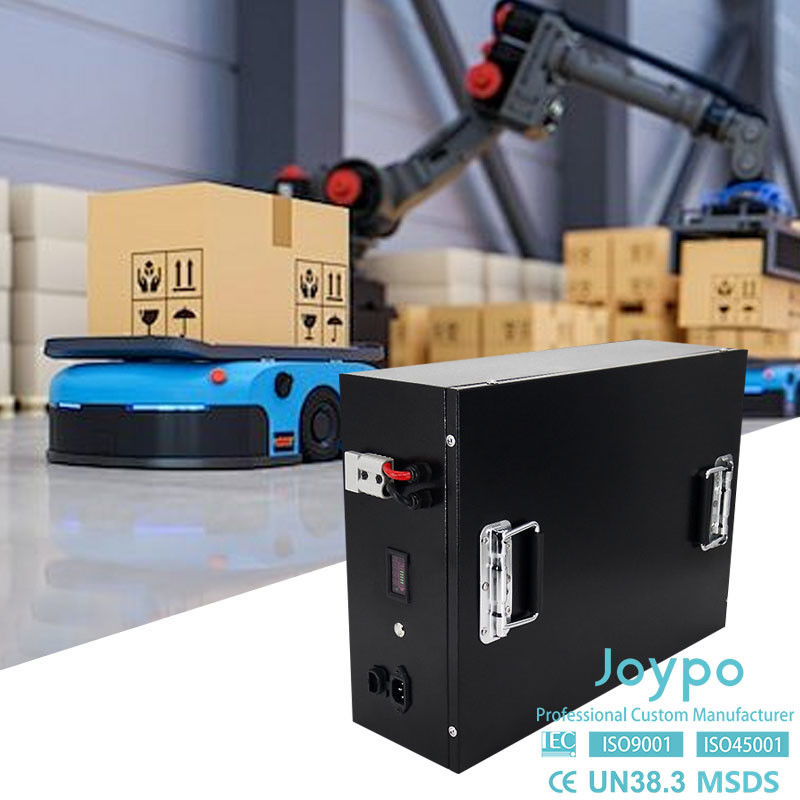

Joypo AGV Lithium Ion Battery 24V 50Ah 100Ah 200Ah For Autonomous Mobile Robots
Why choose Joypo AGV batteries?
Unmatched Efficiency: Elevate your AGV's performance with Joypo batteries, delivering unmatched efficiency and power for seamless operations.
Extended Battery Life: Experience prolonged battery life with Joypo, ensuring your AGV stays powered for longer durations without compromising on performance.
Rapid Charging Technology: Joypo batteries feature cutting-edge rapid charging technology, minimizing downtime and maximizing productivity for your AGV fleet.
Reliable Power Supply: Trust in the reliable power supply of Joypo batteries, providing consistent energy to keep your AGVs running smoothly round the clock.
Optimized Energy Density: Maximize space and weight efficiency with Joypo batteries' optimized energy density, enhancing your AGV's payload capacity and operational flexibility.
Low Maintenance Requirements: Enjoy hassle-free operations with Joypo batteries' low maintenance design, reducing upkeep costs and ensuring uninterrupted AGV performance.
Intelligent Battery Management: Benefit from Joypo batteries' intelligent battery management system, optimizing energy usage and enhancing overall AGV efficiency.
Environmentally Conscious: Choose Joypo batteries for an environmentally conscious power solution, promoting sustainability and reducing your AGV fleet's carbon footprint.
Enhanced Safety Features: Prioritize safety with Joypo batteries' enhanced safety features, ensuring secure and reliable power supply for your AGVs in all operating conditions.
Trusted Performance: Rely on Joypo batteries for trusted performance and superior quality, setting a new standard for AGV power solutions in the industry.
|
Model |
JP02450AP |
JP024100AP |
JP024200AP |
|
ELECTRICAL SPECIFICATIONS |
|
|
|
|
Cell Type - Chemistry |
LiFePO4 |
LiFePO4 |
LiFePO4 |
|
Packing model |
8S1P |
8S1P |
8S2P |
|
Nominal Capacity |
50Ah |
100Ah |
200Ah |
|
Nominal Voltage |
25.6V |
25.6V |
25.6V |
|
Energy |
1280Wh |
2560Wh |
5120Wh |
|
MECHANICAL SPECIFICATIONS |
|
|
|
|
Weight |
Approx. 11kg(24lb) |
Approx. 22kg(48.5lb) |
Approx. 45kg(99lb) |
|
Dimensions (L x W x H) |
330*172*215mm |
485*165*240mm or customized |
customized |
|
DISCHARGING SPECIFICATIONS |
|
|
|
|
Discharge cut-off voltage |
20 V |
20 V |
20 V |
|
Peak discharge current |
100A (duration 2S) |
200A (duration 2S) |
300A (duration 2S) |
|
Rated discharge current |
50A |
100A |
100A |
|
Self-discharge rate |
≤2% per month(25°C) |
≤2% per month(25°C) |
≤2% per month(25°C) |
|
CHARGING SPECIFICATIONS |
|
|
|
|
Charging cut-off voltage |
29.2V |
29.2V |
29.2V |
|
Continuous charging current |
25A |
50A |
100A |
|
SAFETY&Quality |
|
|
|
|
Working temperature |
-20°C-55°C |
-20°C-55°C |
-20°C-55°C |
|
Storage temperature |
0～45°C |
0～45°C |
0～45°C |
|
Waterproof level |
IP65 |
IP65 |
IP65 |
|
Certificate & Safety Standard |
UL/ROHS/TUV/FCC / CE / MSDS/EN62619 / IEC62040 / UN38.3 |
||
|
Communication |
CAN/RS485/DRY CONTACT |
||
|
Cycle life |
6000 times, capacity≥80% @25℃ 0.5C/0.5C |
||
Why choose Joypo?
* ISO 9001 & 14001 management certified factory
* R&D team with experienced engineers and designers
* OEM&ODM professionals
* Multiple production lines and multiple production workers
* Use only high quality brand new materials
* Strict quality control process before, during and after production, 100% quality test before leaving factory
* Production integration
