Place of Origin:
Hunan, China
Brand Name:
JOYPO
Certification:
MSDS,UN38.3,CE
Model Number:
JP-EOS-5KWH

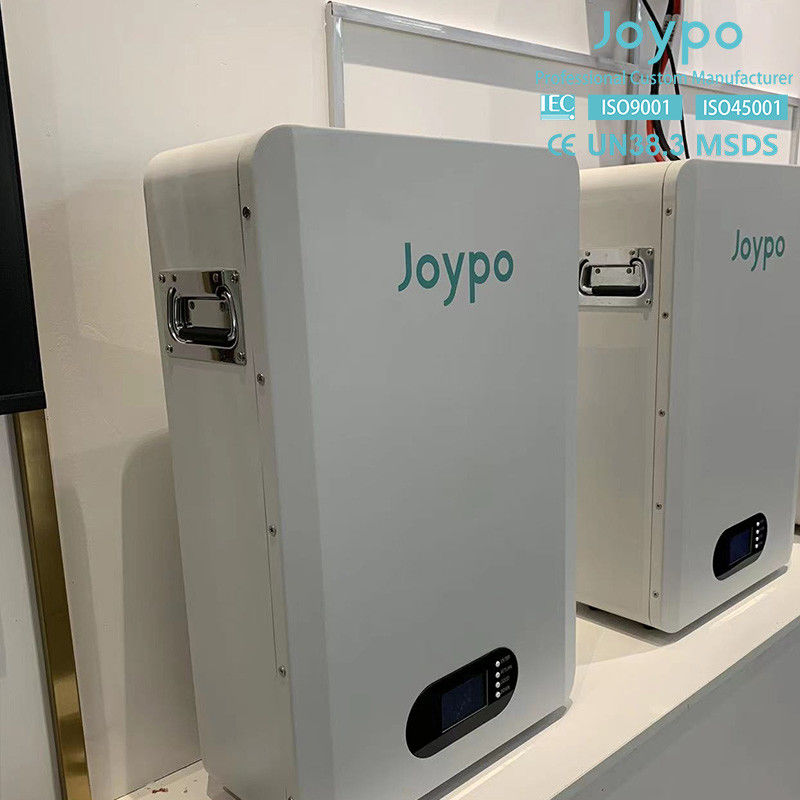

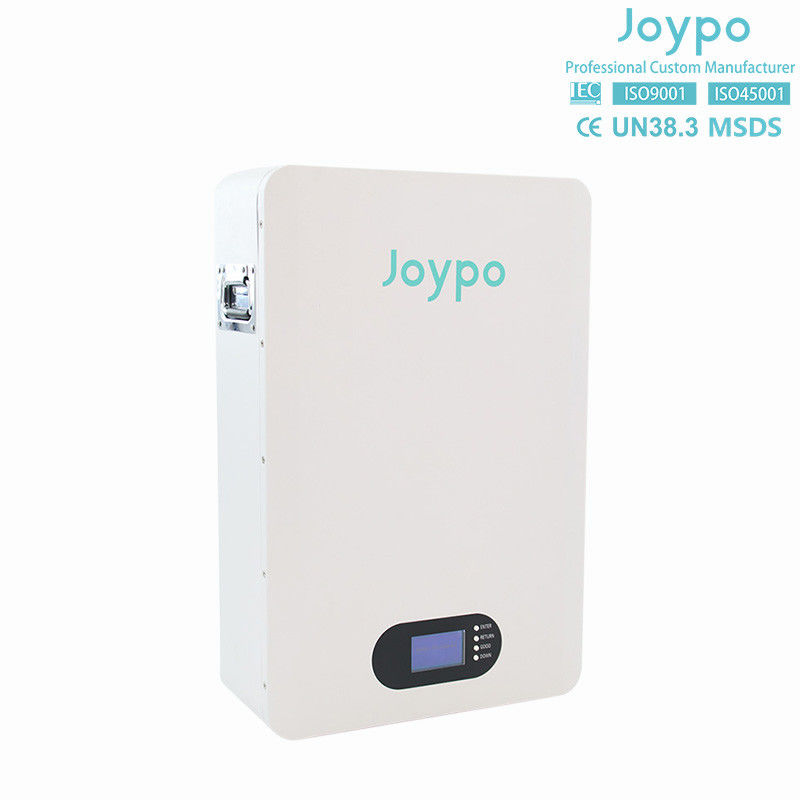

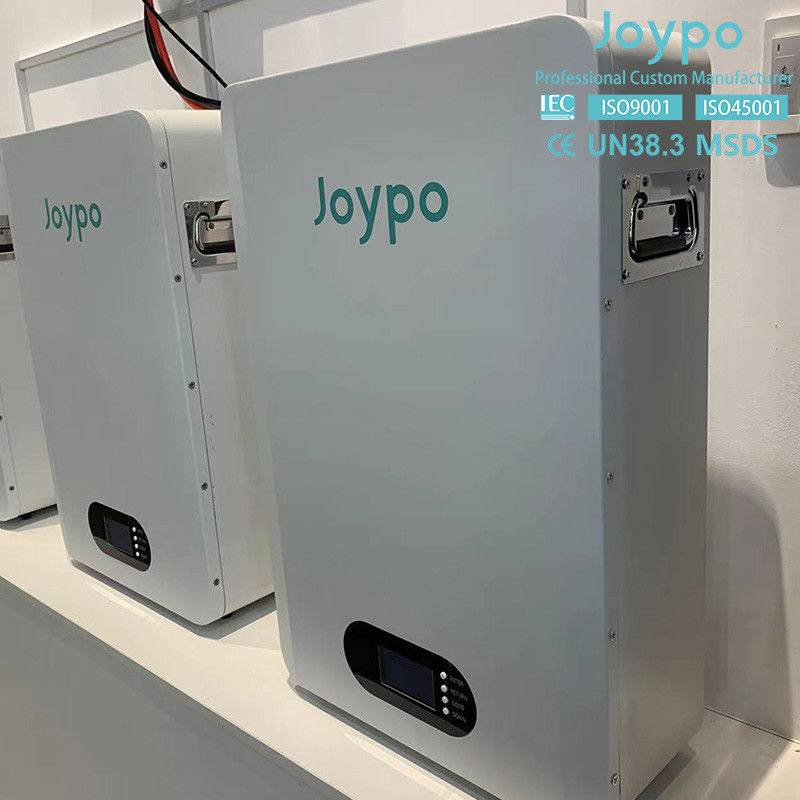

Joypo Household 51.2V 100Ah Power Wall Battery For Solar Energy Storage System
Features:
1. Can act as a UPS battery to meet residential or office daily electricity demand.
2. With the LCD screen, shows the battery status in real-time.
3. With smart BMS, provide complete protection from short-circuit, overcharge, over-discharge, overcurrent, over-voltage, and so on.
4. Long cycle life of more than 6000 times, durable and stable performance.
5. Support up to 16 pieces connected in parallel.
6. CAN/RS485/RS232 Communication optional.
7. With handles, easy to carry.
Energy storage batteries are necessary in home solar power generation systems. Here are some of the main reasons:
1. Energy independence: Solar power systems can provide clean, renewable electricity to homes by converting solar energy into electricity. However, solar power generation is unstable because it is affected by sunlight intensity, weather conditions and seasonal changes. Energy storage batteries can store excess solar energy for use when solar energy is unavailable or insufficient, making the home self-sufficient.
2. Savings on electricity bills: Energy storage batteries allow households to store solar energy during periods of high electricity prices, such as peak electricity prices, and use the stored energy when electricity prices are lower or solar energy is unavailable. This optimizes energy use and reduces household electricity bills.
3. Grid failure backup: In traditional solar power generation systems, when the grid fails, the system will also stop working to ensure safety. However, if a home has an energy storage battery system installed, it can continue to provide power to the home when the power grid fails, improving the home's power supply reliability and emergency backup capabilities.
4. Smooth power fluctuations: Solar power systems are affected by changes in sunlight, causing fluctuations in power output. Energy storage batteries can smooth these power fluctuations, provide stable power output and reduce dependence on the grid.
5. Environmentally friendly: Energy storage batteries can help households reduce dependence on traditional power grids and reduce the use of fossil fuels, thereby reducing greenhouse gas emissions and reducing negative impacts on the environment.
| Project name | Standard requirement |
| Operating Voltage | 43.2~58.4V |
| Battery capacity | 100Ah |
| Battery energy | 5120Wh |
| Weight | About 45kg |
| Dimension | L600 X W400 X 167mm |
| Enclosure material | 1.5mm cold rolled iron plate |
| Continuous charging current | 50A |
| Peak discharge current | 200A (duration 3S) |
| Rated discharge current | 100A |
| Charging cut-off voltage | 58.4V |
| Discharge cut-off voltage | 43.2V |
| charging method | CC-CV |
| Self-discharge | ≤2% per month |
| Temperature characteristics |
Charging Temperature:0℃～45℃ Discharge Temperature:-20℃～55℃ |
| Storage temperature | 0～45℃ |
| Communication | CAN/RS485/RS232 |
| Cycle life | 6000 times |
| Parallel rule | Up to 16 packs can be connected in parallel |
| Battery protection | Overcharging, over-discharge, overcurrent, overvoltage, short circuit, and so on |
FAQ
1. Can I have a sample order?
Re: Yes, the sample order is welcome here, so you can test the product quality.
2. How long is the lead time?
Re: Sample order takes around 7-20 days, bulk order takes 20-35 days, depending on the order size and production schedule.
3. How long is the battery warranty?
Re: 5 years, can be extended for large orders.
4. What products can you supply?
Re: Except for the lithium batteries and cells, we can also supply the all-in-one solar power system, solar panels, inverter, and brackets.
5. How can you guarantee the quality?
Strict Quality Checks: Multiple rounds of strict quality checks during manufacturing. Each battery is carefully inspected to meet and exceed industry standards.
High-Quality Materials: This includes advanced cell technologies and materials that are proven to deliver superior energy density, longer cycle life, and stable performance.
Customer Feedback: Our customers' satisfaction is a testament to the quality of our batteries. Positive reviews and long-term customer relationships underscore our commitment to delivering on our promises.
Warranty: A long-term warranty not only protects your investment but also reflects our confidence in the durability and performance of our batteries.
We understand the importance of earning your trust, and we are committed to delivering a product that exceeds your expectations. Should you have any further questions or concerns, please feel free to reach out to our customer service team. We look forward to the opportunity to serve you and provide you with reliable, high-quality batteries.
6. What payment terms do you accept?
Generally, we accept T/T, 50% for deposit, the balance paid before shipment.
