Domestic Solar Storage Lithium Battery 24V 2.5KWH 100Ah / 200Ah / 300Ah / 400Ah

Domestic Solar Storage Lithium Battery 24V 2.5KWH 100Ah / 200Ah / 300Ah / 400Ah

Domestic Solar Storage Lithium Battery

Solar Storage Lithium Battery 100Ah

24V 2.5KWH Lithium Battery

Place of Origin:

Hunan, China

Brand Name:

JOYPO

Certification:

MSDS,UN38.3,CE

Model Number:

JP024100AP

Contact Us
Request A Quote
Product Details
Features:
With Smart BMS / LED Indicator / High Discharge / Fast Charge / Light Weight / Deep Cycle, And CAN RS485 Communication / Bluetooth Optional
Product Name:
Batteries For Solar System
Nominal Voltage:
25.6 Volt
Nominal Capacity:
100ah/200ah/300ah/400ah
Battery Type:
LiFePO4 Lithium Battery 24V
Service:
OEM And ODM Accpeted
Usage:
Marine,RV,Solar System Etc,AGV/UPS/Robot/Solar Energy System,Camper
Cycle Life:
6000 Times
Dimension:
485*165*240mm
Weight:
About 22kg
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$199-999/piece
Packaging Details
Carton or Wooden Carton
Delivery Time
7-20 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
20000 pieces per month
Product Description

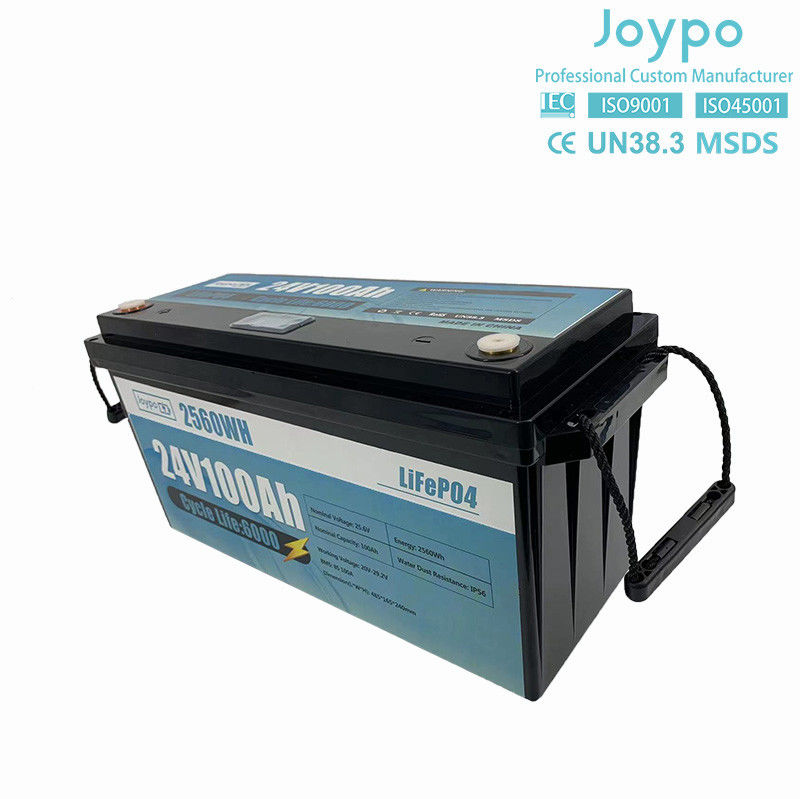

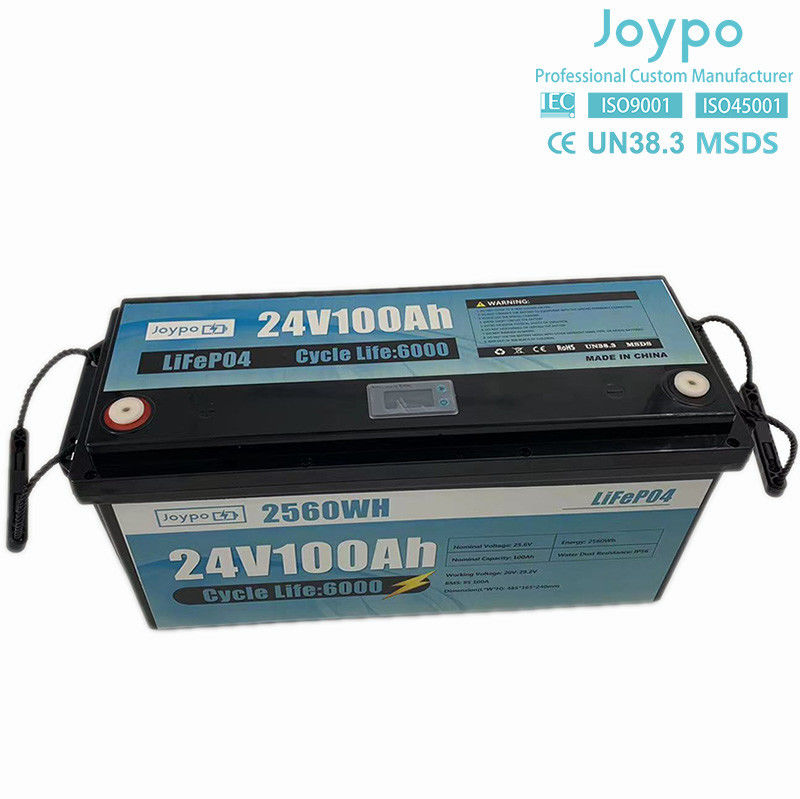

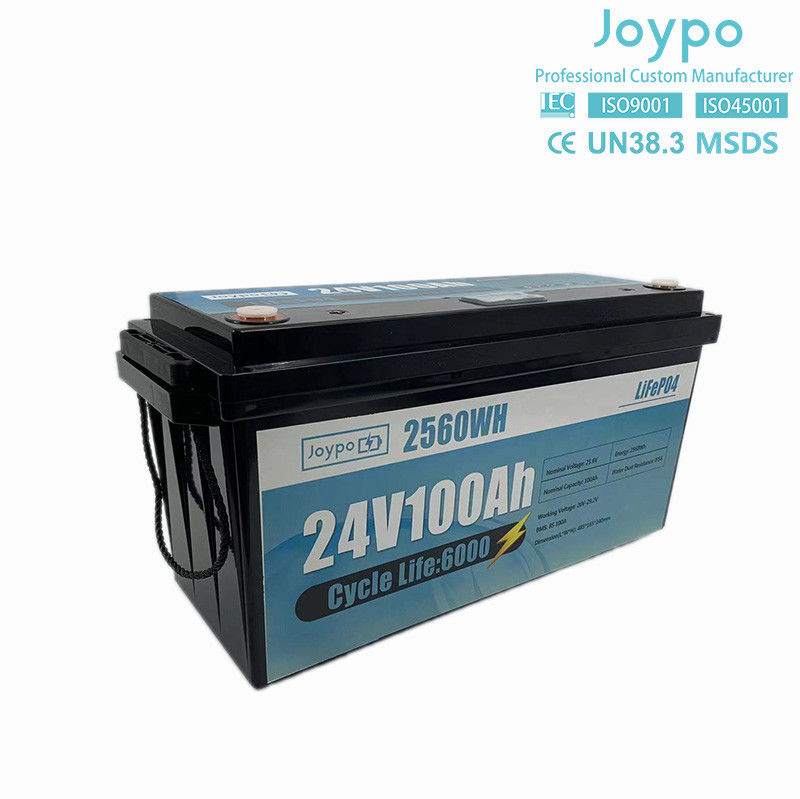

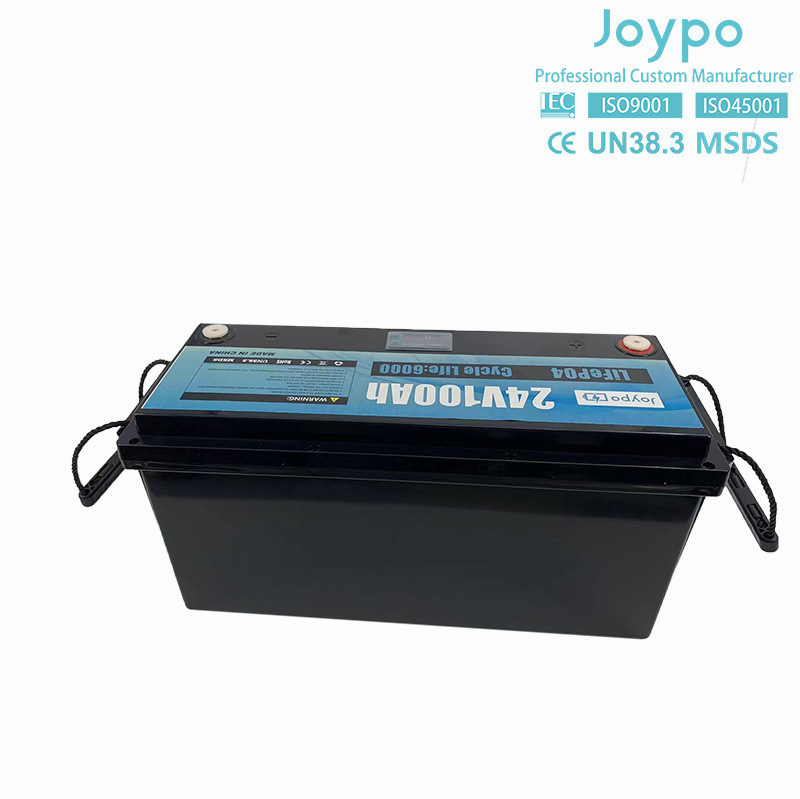

Joypo Domestic 24V 100Ah 2.5KWH Solar Battery Near Me For House Energy Storage System



Features:

1. Smart BMS, with complete protection from short circuits, over-current, over-voltage, overcharge, over-discharge, and so on.

2. LED indicator shows the voltage and power percentage in real-time.

3. High Discharge / Fast Charge, more convenient to use.

4. Lightweight with small size.

5. Deep Cycle and as long as 6000 times long cycle life.

6. Maintenance-free.

7. Environment-friendly.

8. CAN RS485 Communication / Bluetooth optional.



Model
JP024100AP
ELECTRICAL SPECIFICATIONS

Cell Type - Chemistry
LiFePO4
Packing model
8S1P
Nominal Capacity
100Ah
Nominal Voltage
25.6V
Energy
2560Wh
MECHANICAL SPECIFICATIONS

Weight
Approx. 22kg
Dimensions (L x W x H)
485*165*240mm or customized
DISCHARGING SPECIFICATIONS

Discharge cut-off voltage
20 V
Peak discharge current
200A (duration 2S)
Rated discharge current
100A
Self-discharge rate
≤2% per month(25°C)
CHARGING SPECIFICATIONS

Charging cut-off voltage
29.2V
Continuous charging current
100A
SAFETY&Quality

Working temperature
-20°C-55°C
Storage temperature
0~45°C
Waterproof level
IP65
Certificate & Safety Standard
UL/ROHS/TUV/FCC / CE / MSDS/EN62619 / IEC62040 / UN38.3
Communication
CAN/RS485/DRY CONTACT
Cycle life

 6000 times, capacity≥80% @25℃ 0.5C/0.5C





























































































































Domestic Solar Storage Lithium Battery 24V 2.5KWH 100Ah / 200Ah / 300Ah / 400Ah 0





































































































































FAQ:

1. How much is the lithium solar battery?

To quote you the price, we need to know the battery voltage, capacity, and quantity you need, please kindly tell us to check the cost.

If you have more requirements like dimensions, logo print, etc, please also tell us before the quotation.



2. Can I have a sample order?
Re: Yes, the sample order is welcome here, so you can test the product quality.



3. How long is the lead time?
Re: Sample order takes around 7-20 days, bulk order takes 20-35 days, depending on the order size and production schedule.



4. How long is the battery warranty?
Re: 2 years, can be extended for large orders.



5. What other products can you supply?
Re: Except for the lithium batteries and cells, we can also supply the all-in-one solar power system, solar panels, inverter, and brackets.



6. How can you guarantee the quality?
Strict Quality Checks: Multiple rounds of strict quality checks during manufacturing. Each battery is carefully inspected to meet and exceed industry standards.

High-Quality Materials: This includes advanced cell technologies and materials that are proven to deliver superior energy density, longer cycle life, and stable performance.

Customer Feedback: Our customers' satisfaction is a testament to the quality of our batteries. Positive reviews and long-term customer relationships underscore our commitment to delivering on our promises.

Warranty: A long-term warranty not only protects your investment but also reflects our confidence in the durability and performance of our batteries.

We understand the importance of earning your trust, and we are committed to delivering a product that exceeds your expectations. Should you have any further questions or concerns, please feel free to reach out to our customer service team. We look forward to the opportunity to serve you and provide you with reliable, high-quality batteries.
